ADAM-5000 Series User Manual 18
Application Wiring

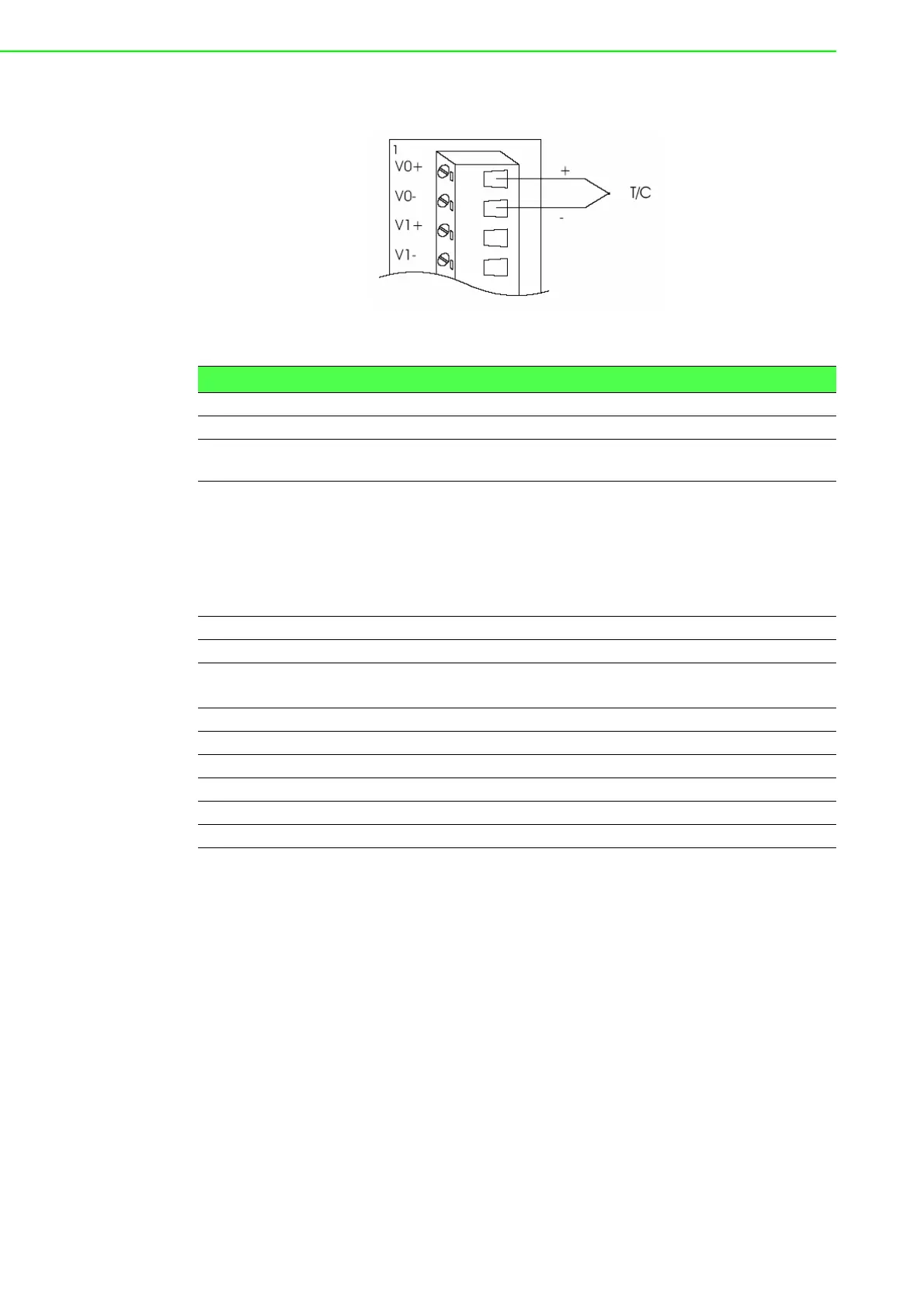

Figure 1.24 Thermocouple Input
Table 1.11: Technical Specifications of ADAM-5018P
Analog Input Channels Seven differential & independent thermocouple
Input Type mV, V, mA, Thermocouple
Input Range ± 15 mV, ± 50 mV, ± 100 mV, ± 500 mV, ± 1 V, ± 2.5 V and
± 20 mA
T/C Type and Temperature
Range
J
K
T
E
R
S
B
0 to 760 °C
0 to 1370 °C
-100 to 400 °C
0 to 1400 °C
500 to 1750 °C
500 to 1750 °C
500 to 1800 °C
Isolation Voltage 3000 VDC
Sampling Rate 10 samples/sec (Selected by Utility)
Input Impedance
2M
 (voltage input)
120
 (current input)
Bandwidth 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
Accuracy ± 0.1% or better
Zero Drift ± 6 µV/°C
Span Drift ± 25 PPM/°C
CMR @ 50/60 Hz 92 dB min.
Power Consumption 0.5 W
