4.1.2 ADAM-5051(D) 16-ch Digital Input Module
The ADAM-5051 provides sixteen digital input channels. The ADAM-5510 can use the
module’s digital inputs to determine the state of limit or safety switches or to receive
remote digital signals.
ADAM-5051/5051D

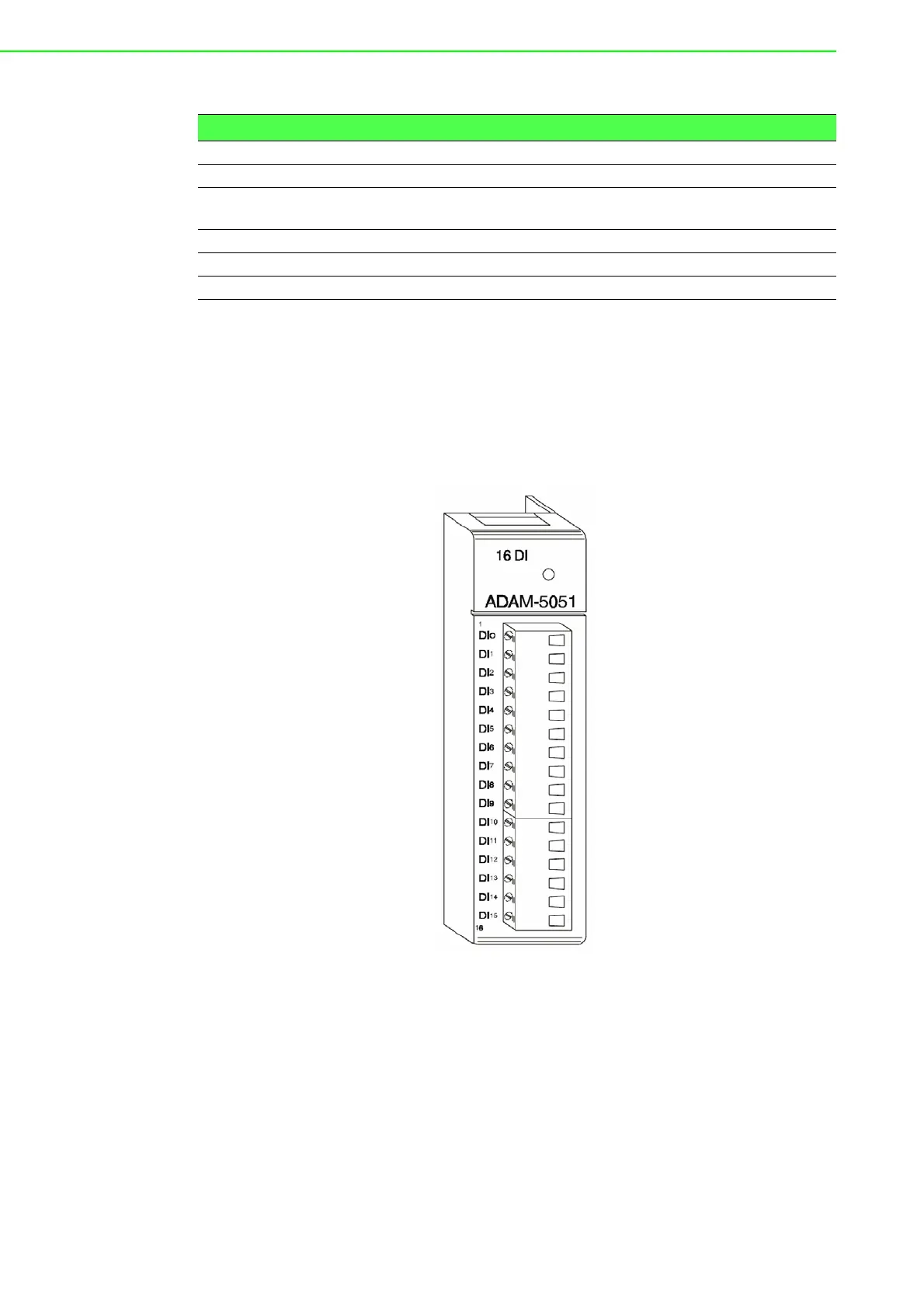

Figure 4.6 ADAM-5051 Module Frontal View
Table 4.1: Technical Specifications of ADAM-5050
Points 16
Channel Setting Bitwise selectable by DIP switch
Digital Input Dry Contact Logic Level 0: close to GND Logic Level 1: open
Wet Contact Logic Level 0: +2 V max Logic Level 1: +4 V to 30 V
Digital Output Open collector to 30 V, 100mA max load
Power Dissipation 450 mW
Power Consumption 0.4 W
