45 ADAM-5000 Series User Manual
Chapter 4 Digital Input
Output Modules
Application Wiring

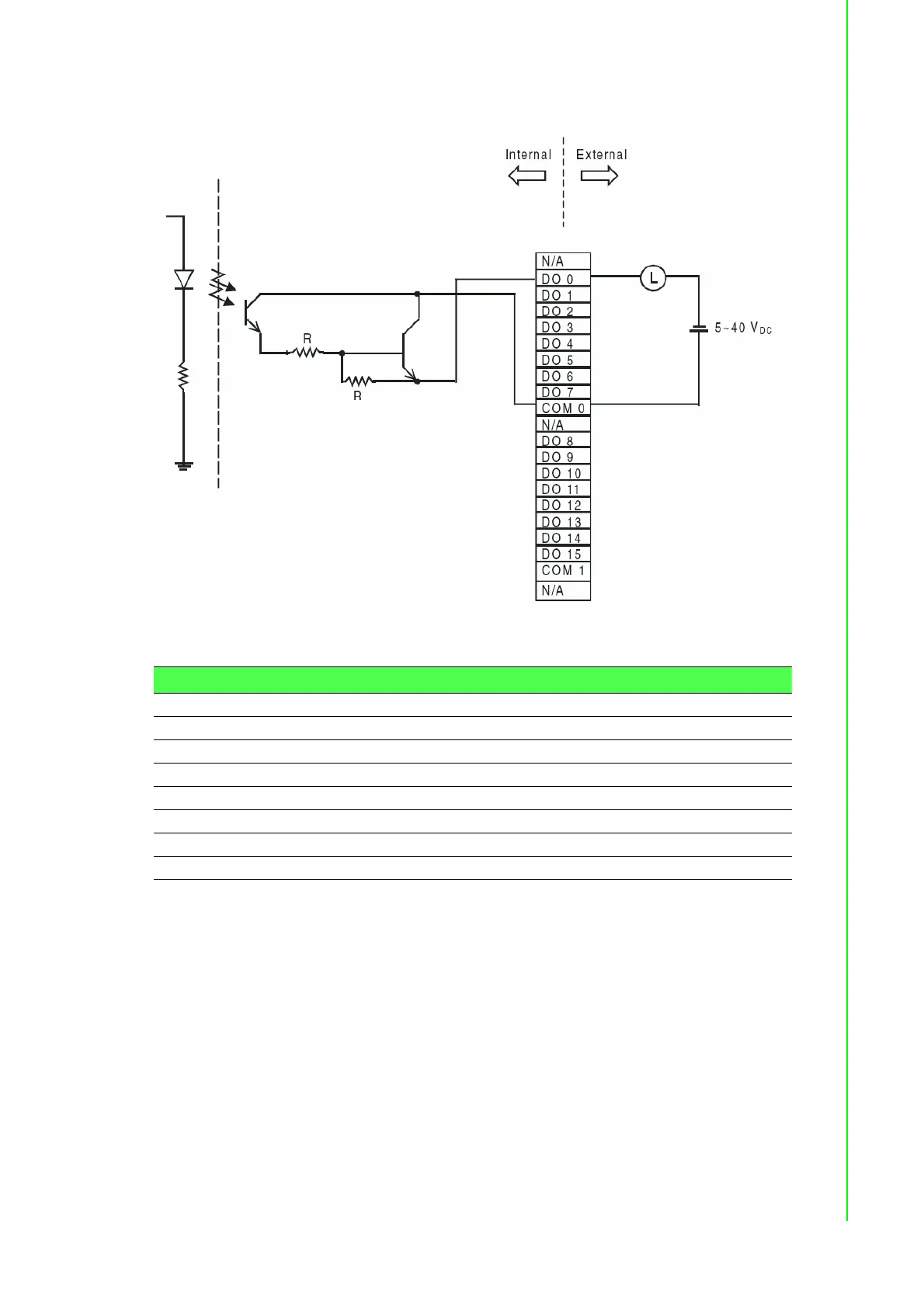

Figure 4.22 ADAM-5056SO Module Wiring Diagram
Table 4.9: Technical Specifications of ADAM-5056SO
Points 16 (8-ch/group)
Digital Output Open collector to 40 V 200 mA max load per channel
Optical Isolation 2500 VDC
Opto-isolator response time 25 us
Supply Voltage 5 ~ 40 VDC
Power consumption 0.6 W
LED Indicator On when active
I/O Connector Type 21-pin plug-terminal
