4.1.10 ADAM-5057S 32-ch Isolated Digital Output Module
The ADAM-5057S provides 32 isolated digital output channels for critical environ-
ments need individual channel isolating protection. Different from other ADAM-5000
I/O modules, ADAM-5057S designed with 40-pin flat cable wiring terminal.

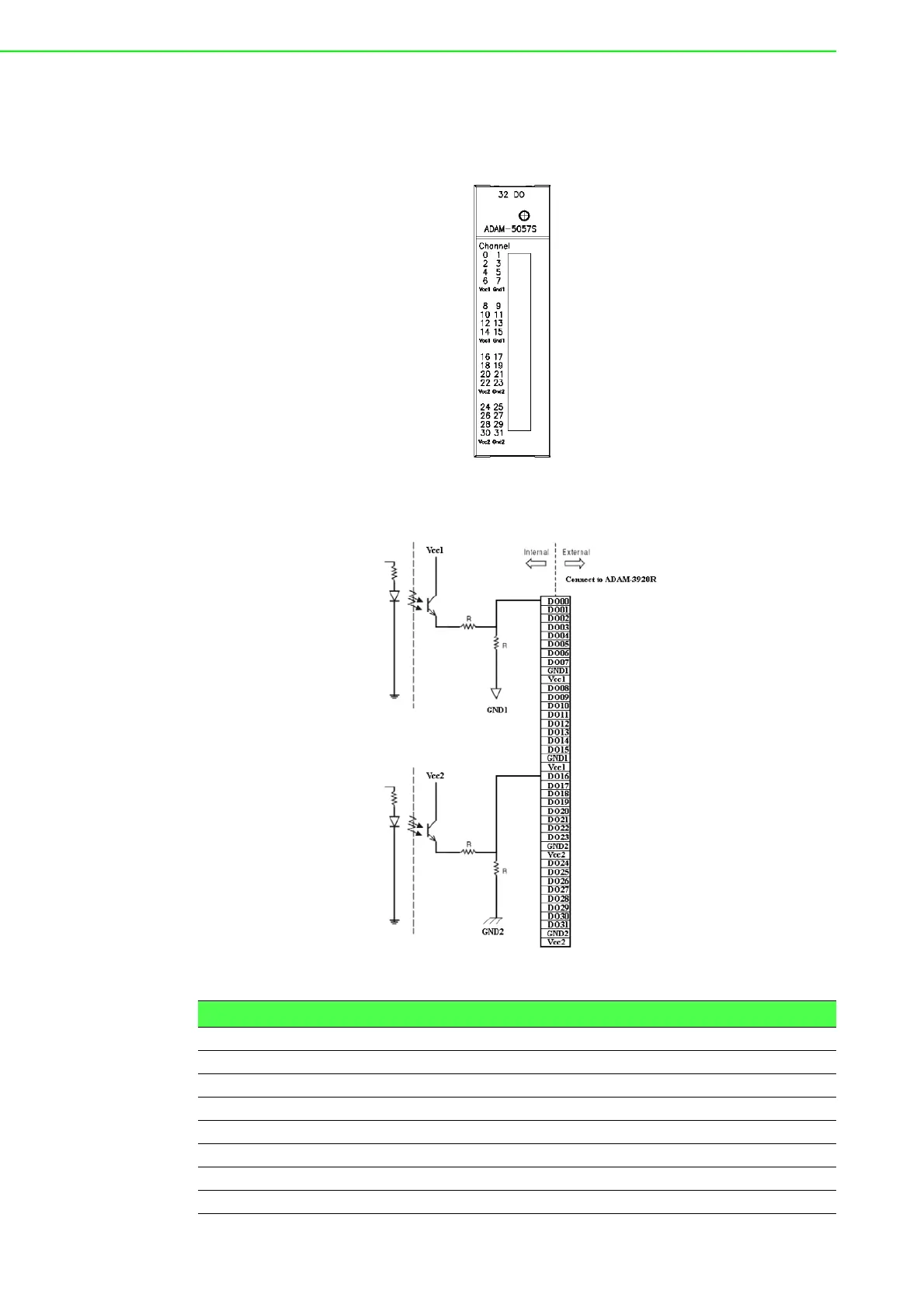

Figure 4.23 ADAM-5057S Module Front View
Application Wiring
Figure 4.24 ADAM-5057S Module Wiring Diagram
Table 4.10: ADAM-5057S Technical Specification
Points 32
Digital Output Contact with ADAM-3920R
Optical Isolation 2500 VDC
Contact Rating 10 A 250VAC, 10 A 30VDC
Power Input +24 VDC
Power consumption 1 W (max.)
Relay Type SPST (Form A)
I/O Connector Type 40-pin flat cable wiring terminal
