7.1.3 ADAM-5095 2-port CAN Serial Communication Module with
isolation protection (Only for ADAM-5560 Series)
ADAM-5095 is a special purpose communication module that offers the connectivity
of the Controller Area Network (CAN). With its built-in CAN controllers, the ADAM-
5095 provides bus arbitration and error detection with an automatic transmission
repeat function. This drastically reduces the chance of data loss and ensures system
reliability. The on-board CAN controllers are located at different positions in the mem-
ory, and you can run both CAN controllers independently at the same time. With high
compatibility, the ADAM-5095 can be used in diverse systems.

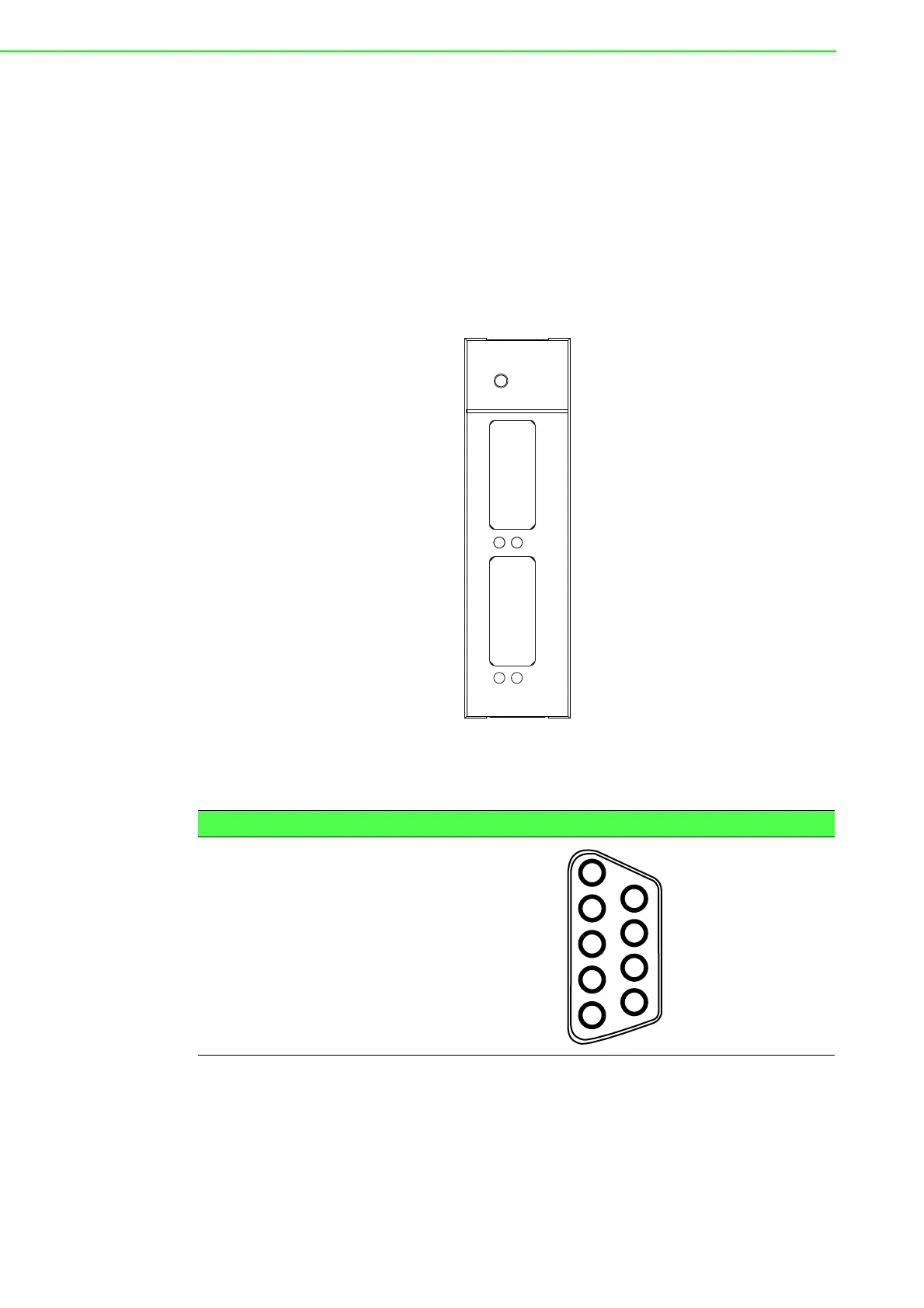

ADAM-5095 Diagram
Figure 7.8 ADAM-5095 Module
CAN Serial Port Pin Assignment
Table 7.10: CAN Serial Port Pin Assignment (CAN1 ~ CAN2)
Pin
CAN Signal
Definition
CAN-L
GND
CAN-H
Tx
Tx
Port2
Rx
Rx
Port1
ADAM-5095
2 CAN
12345
6789
