ADAM-5000 Series User Manual 54
ADAM-5080 Counter/Frequency Mode Selection
Users can select Bi-direction, Up/Down, Counter or Frequency options as shown below.

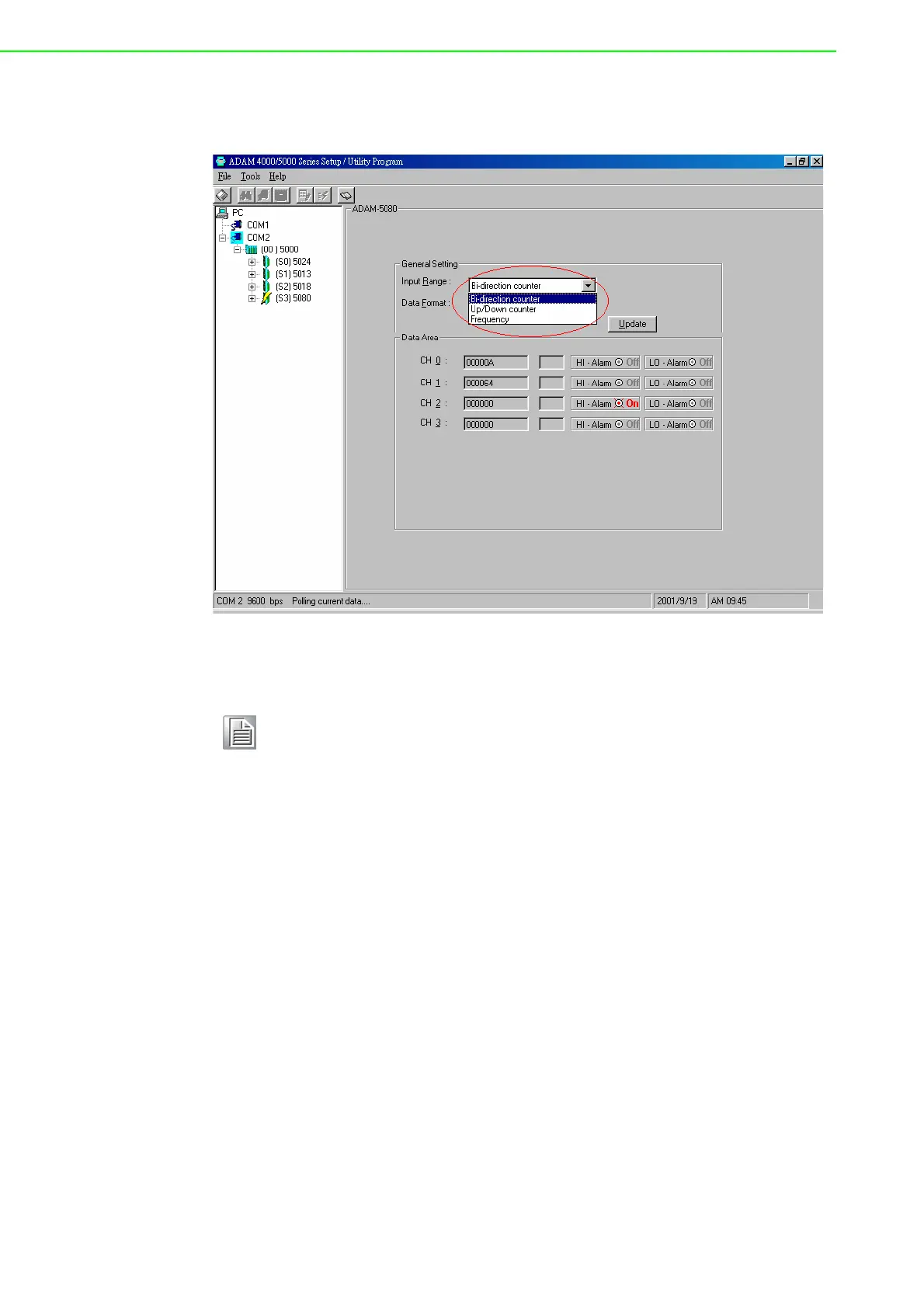

Figure 6.4 Counter / Frequency Mode
Note! All four channels of ADAM-5080 will operate simultaneously in the mode
you have selected. i.e. If you switch the ADAM-5080 to Counter Mode,
all four channels will operate in Counter Mode.
