25 ADAM-5000 Series User Manual
Chapter 3 Analog I
/
O Module Calibration

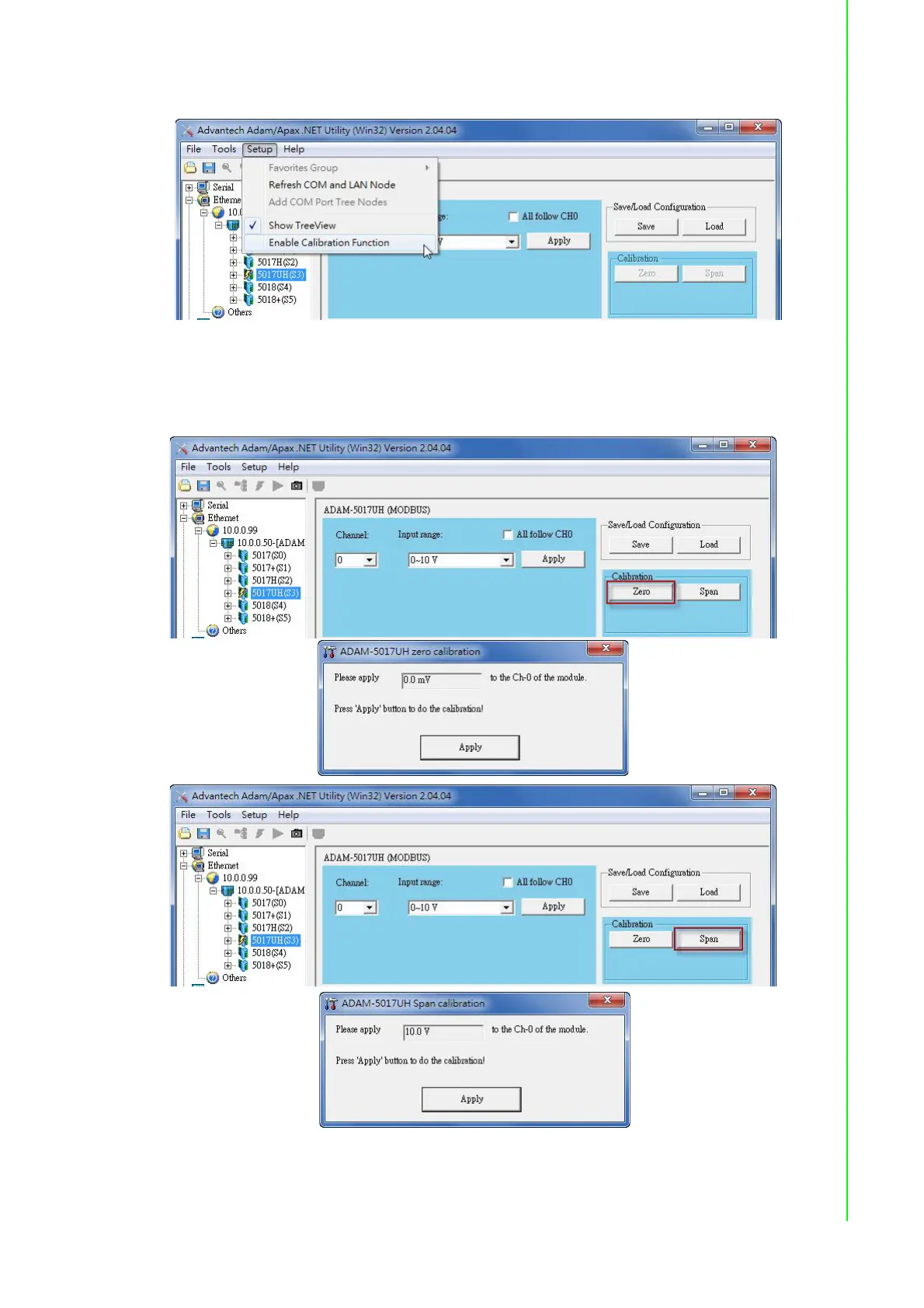

4. ”Enable Calibration Function” in “Setup” menu.
5. Use a precision voltage source to apply a span calibration voltage to the mod-
ule's V0+ and V0- terminals.
6. Click "Zero" and apply the voltage as pop out windows to the Ch-0 and click
"Apply."
