ADAM-6100PN Series User Manual 6

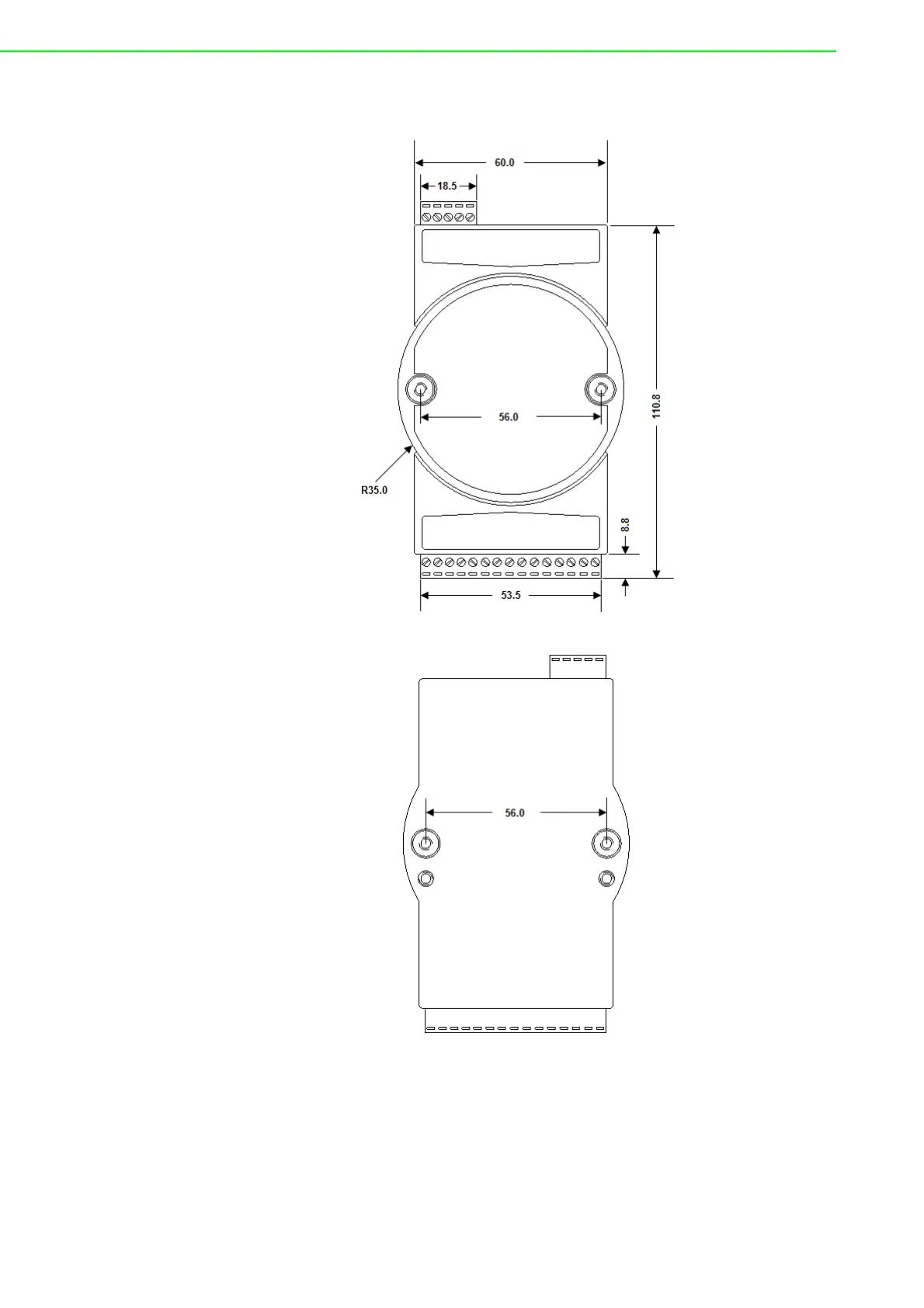

1.3.5 Dimensions
The following diagrams show the dimensions of the ADAM-6100 modules:
Figure 1.2 ADAM-6100 Front
Figure 1.3 ADAM-6100 Back
