3.2 Relay Modules
3.2.1 Overview
The ADAM-6160PN is a relay module which supports PROFINET protocol. It pro-
vides 5 Form C and 1 Form A/B (selectable) relay channels and is excellent for ON/
OFF control or low-power switching applications in an PROFINET system.
 ADAM-6160PN: 6-ch Relay Module

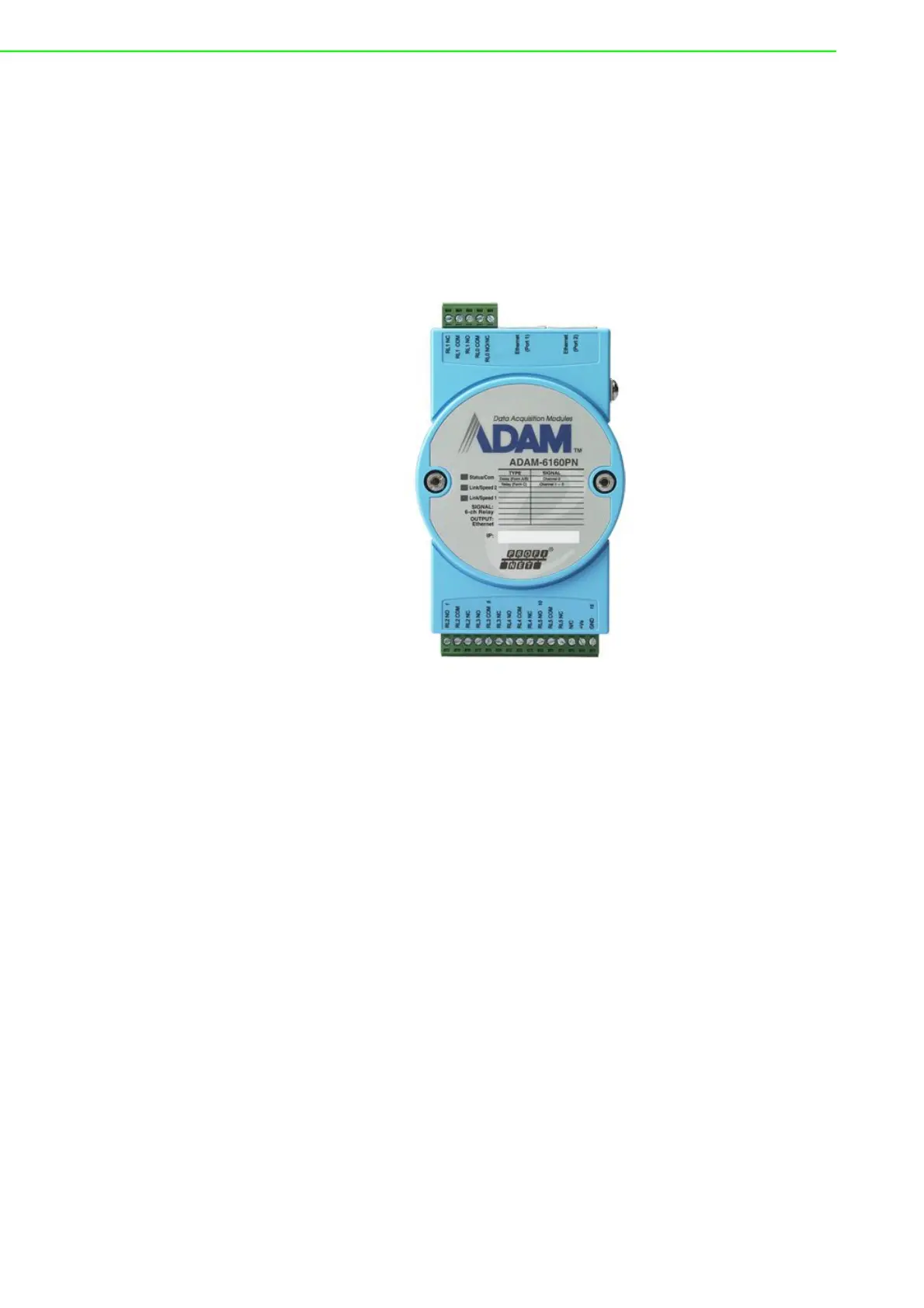

Figure 3.4 ADAM-6160PN
3.2.2 Specifications
Relay
 Channels: 5 Form C and 1 Form A/B (selected by jumper)
 Contact Rating:
– AC: 250 V @ 5 A
– DC: 30 V @ 5 A
 Breakdown Voltage:
– 500 VAC (50/60 Hz)
 Mechanism: 20,000,000 operations
 Relay on time: 7 ms
 Relay off time: 3 ms
 Contact Resistance: 30 mΩ (max.)
 Insulation Resistance: 1 GΩ at 500 V
DC
 FSV Safety Function
