Advantech ADAM-6156PN - Jumper Settings

17 ADAM-6100PN Series User Manual
Chapter 3 Product Specifications
General
 Communication: 10/100 Base-T Ethernet
 Supported Protocol: PROFINET
 Power Input: Unregulated 10 ~ 30 V
DC
 Power Consumption: 3.5 W @ 24 V
DC
 Power Reversal Protection (30V Max.)
 Operating Humidity: 20 ~ 95% RH (non-condensing)
 Storage Humidity: 0 ~ 95% RH (non-condensing)
 Operating Temperature: -10 ~ 70°C
 Storage Temperature: -20 ~ 80°C

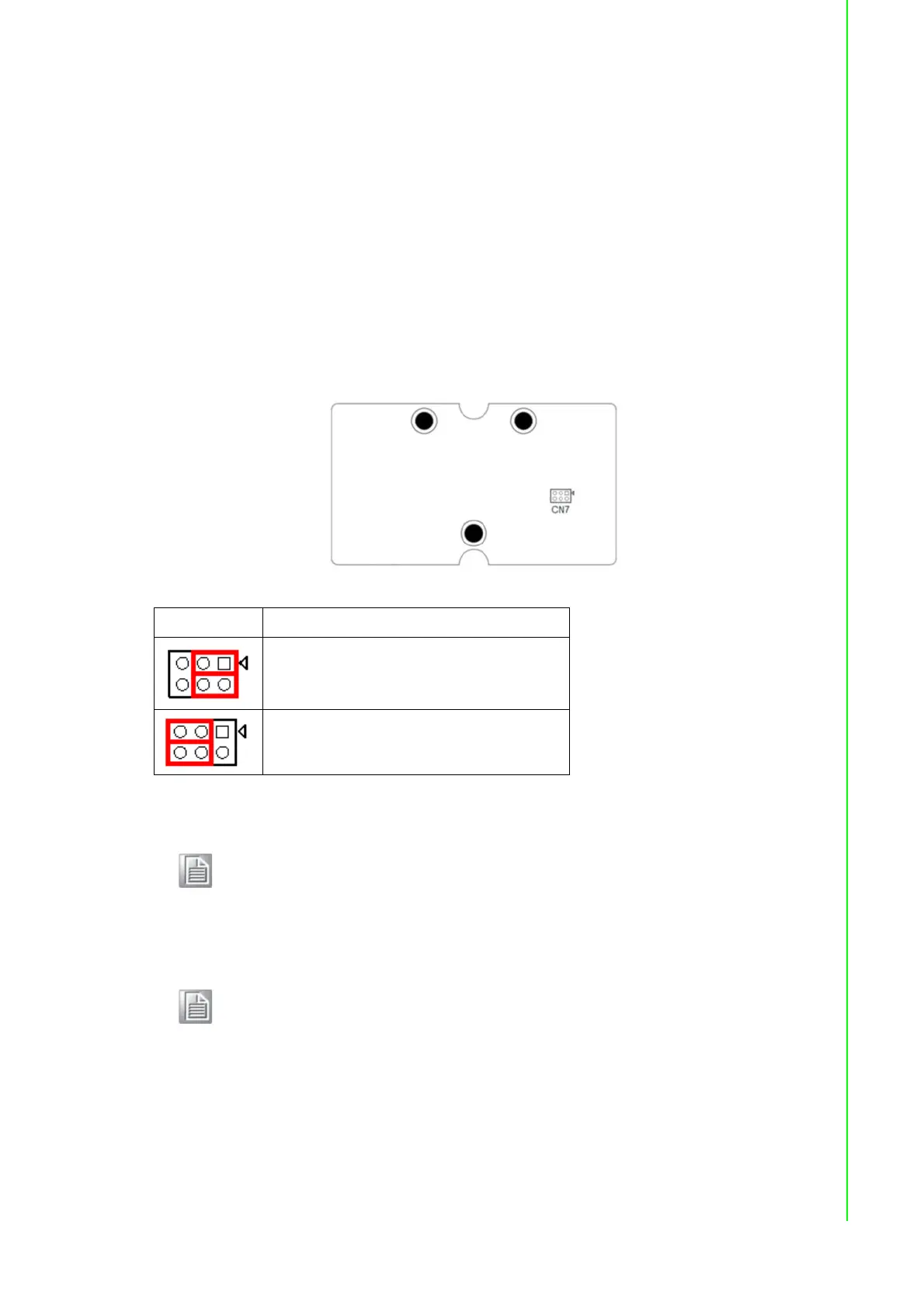

3.2.3 Jumper Settings
CN7 Relay Ch0 Configuration
Normally Open (Default)
Normally Closed
Note! Users need to separate two PC boards to set the jumpers of the ADAM-
6160PN.
Note! The two jumpers for CN7 must be moved together.
