ADAM-6100PN Series User Manual 30
4.3.3 I/O Module Configuration
After you have completed all general configuration of ADAM-6000 module described
in previous section, then you need to configure setting for input and output channel
such as channel range, calibration and alarm. At the same time, you can see input
channel value and set value of output channel in the Status Display area of utility. In
the Module Tree Display area, click the item showing IP of the ADAM-6100 modules
you want to use. There will be two items appearing below the IP: All Channel Con-
figuration and GCL Configuration item. Refer to Figure 5.4 below. (The related
feature of GCL item will be described in Chapter 7)
Click the cross icon besides the All Channel Configuration item, one dialog window
will appear to ask you typing password. After you enter the correct password, Indi-
vidual Channel Configuration items will appear below the All Channel Configura-
tion item.

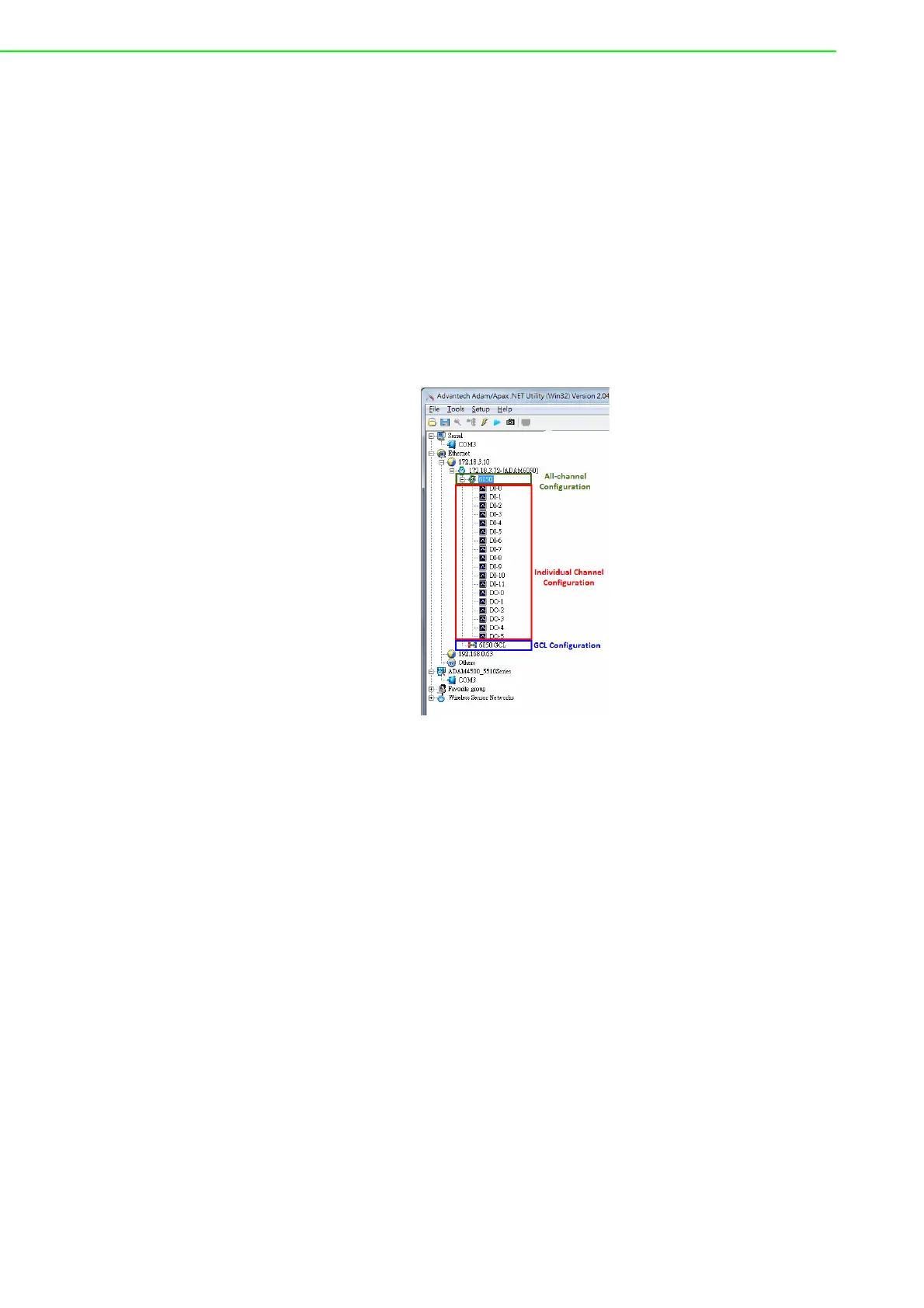

Figure 4.3 Channel & GCL Configuration
If you click the All Channel Configuration item, you can read analog input value or
configure setting for all channels on the Status Display area. If you click the Individ-
ual Channel Configuration item, you can read AI values or configure setting for the
specific channel you choose. Below, we will describe the All Channel Configuration
and Individual Channel Configuration in more detail for ADAM-6000 I/O modules.
Analog Input Module (ADAM-6015, ADAM-6017 and ADAM-6018)
