ADAM-6100PN Series User Manual 18
3.3 Analog I/O Modules
3.3.1 ADAM-6117PN: 8-ch Isolated Analog Input Module
3.3.1.1 Overview
The ADAM-6117PN is a 16-bit, 8-channel isolated analog input module. It accepts
millivoltage inputs (±150 mV, ±500 mV), voltage inputs (±1 V, ±5 V and ±10 V) and
current input (±20 mA, 0~20 mA, 4~20 mA). Each analog channel can be configured
to an individual range for a variety of applications.

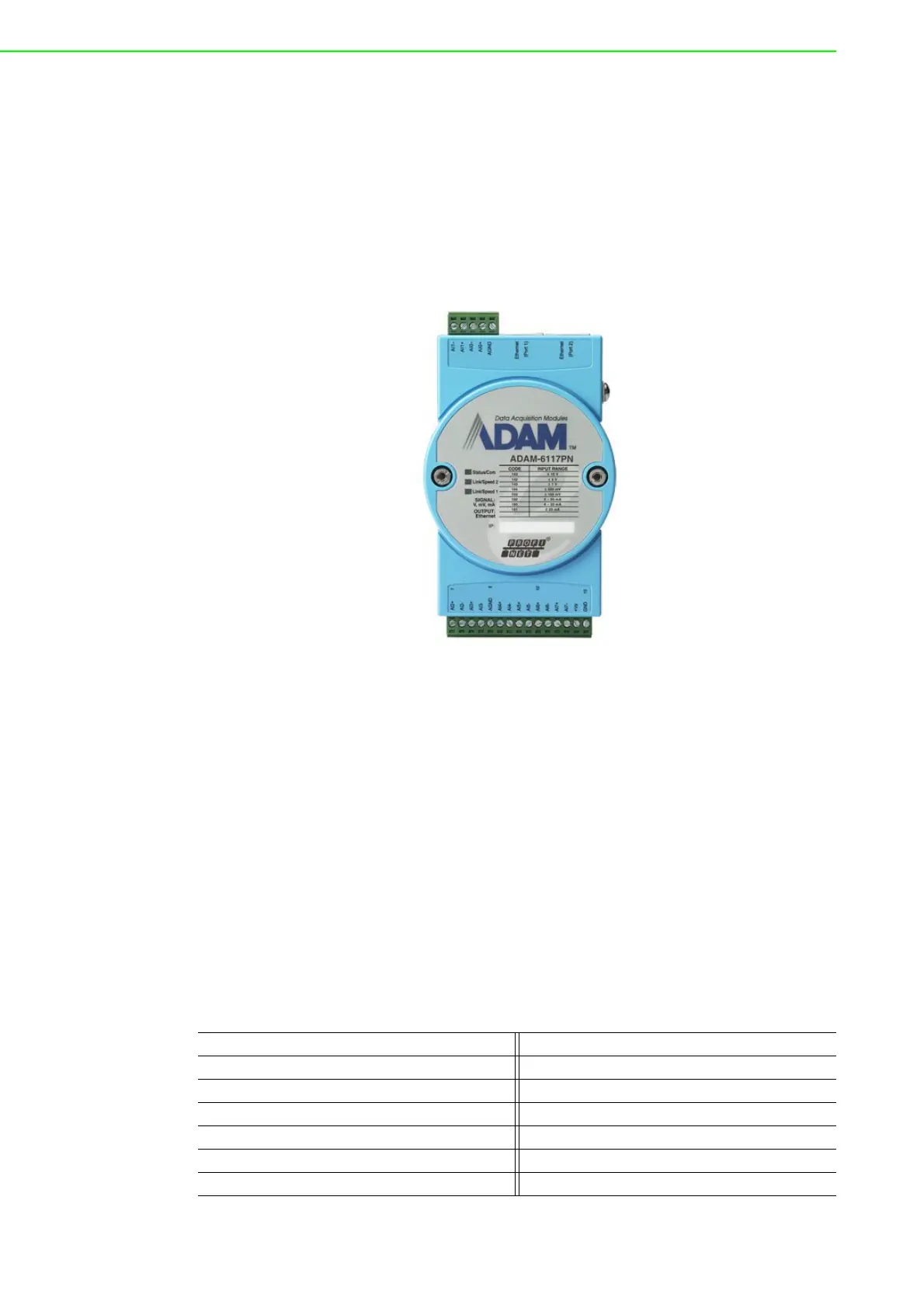

Figure 3.5 ADAM-6117PN
3.3.1.2 Specifications
Analog Input:
• Channels: 8 (Differential)
• Input Impedance:
Voltage: >10 MΩ
Current:120 Ω
• Input Type: V, mV, mA
• Input Range: ±150 mV, ±500 mV, ±1V, ±5V, ±10V, ±20 mA, 0~20 mA, 4~20 mA (dif-
ferent range can be configured for each channel in the utility)
• Accuracy:
Voltage: ±0.1% or better at 25°C
Current: ±0.2% or better at 25°C
• Resolution:
Voltage Current
Range Resolution Range Resolution
±150 mV 16 bit ±20mA 15 bit
±500 mV 16 bit 0~20 mA 14 bit
±1 V 16 bit 4~20 mA 14 bit
±5 V 16 bit
±10 V 16 bit
