Advantech ADAM-6156PN User Manual

19 ADAM-6100PN Series User Manual
Chapter 3 Product Specifications
• Sampling Rate: 12 samples/second (total)
• CMR @ 50/60 Hz: 92 dB
• NMR @ 50/60 Hz: 60 dB
• Span Drift: ±30 ppm/°C
• Zero Drift: ±6 μV/°C
• Isolation Voltage: 2,500 V
DC
• High Common Mode: up to 200 V
DC
General:
• Communication: 10/100 Base-T Ethernet
• Supported Protocol: PROFINET
• Power Input: Unregulated 10 ~ 30 V
DC
• Power Consumption: 3 W max. @ 24 V
DC
• Power Reversal Protection (30V max.)
• Operating Humidity: 20 ~ 95% RH (non-condensing)
• Storage Humidity: 0 ~ 95% RH (non-condensing)
• Operating Temperature: -10 ~ 70°C
• Storage Temperature: -20 ~ 80°C
3.3.1.3 Switch Settings
SW1~SW4: Set input mode of each AI channel

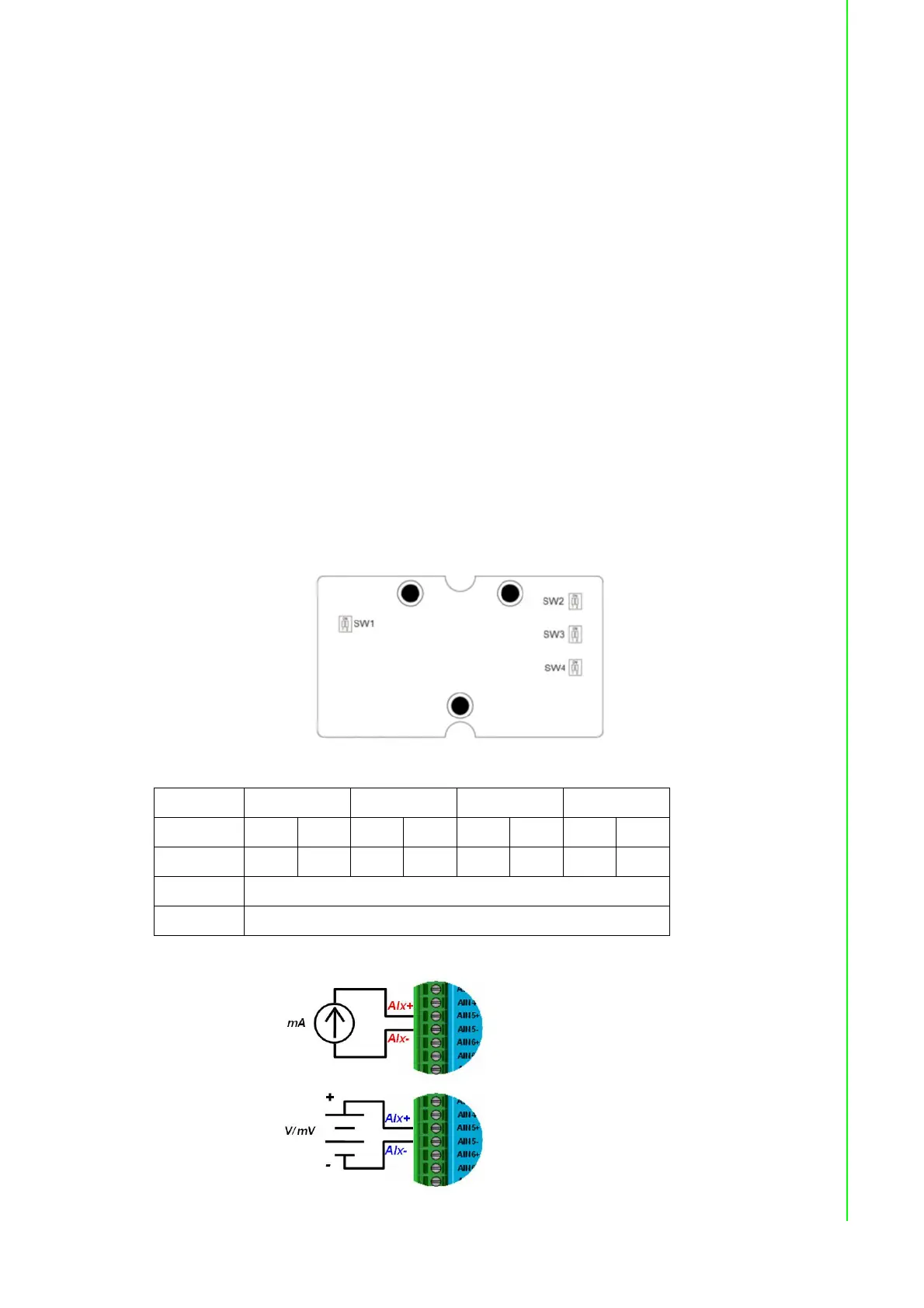

3.3.1.4 Application Wiring
Switch SW1 SW2 SW3 SW4
Position
12121212
Channel
Ch1 Ch0 Ch3 Ch2 Ch5 Ch4 Ch7 Ch6
ON
Current Mode
OFF
Voltage Mode (Default)
