37 ADAM-6100PN Series User Manual
Chapter 4 System Configuration Guide
2. Modbus
You can see current output value in decimal and hexadecimal for all related Modbus
address.
Digital Input and Output Modules
(ADAM-6050, ADAM-6051, ADAM-6052, ADAM-6060, ADAM-6066)
4.3.3.4 All Channel Configuration
When you click the All Channel Configuration item in the Module Tree Display
area, there will be two tabs: Channel Setting and Modbus. Take ADAM-6050 as
example. Refer to Figure 5.12 below:

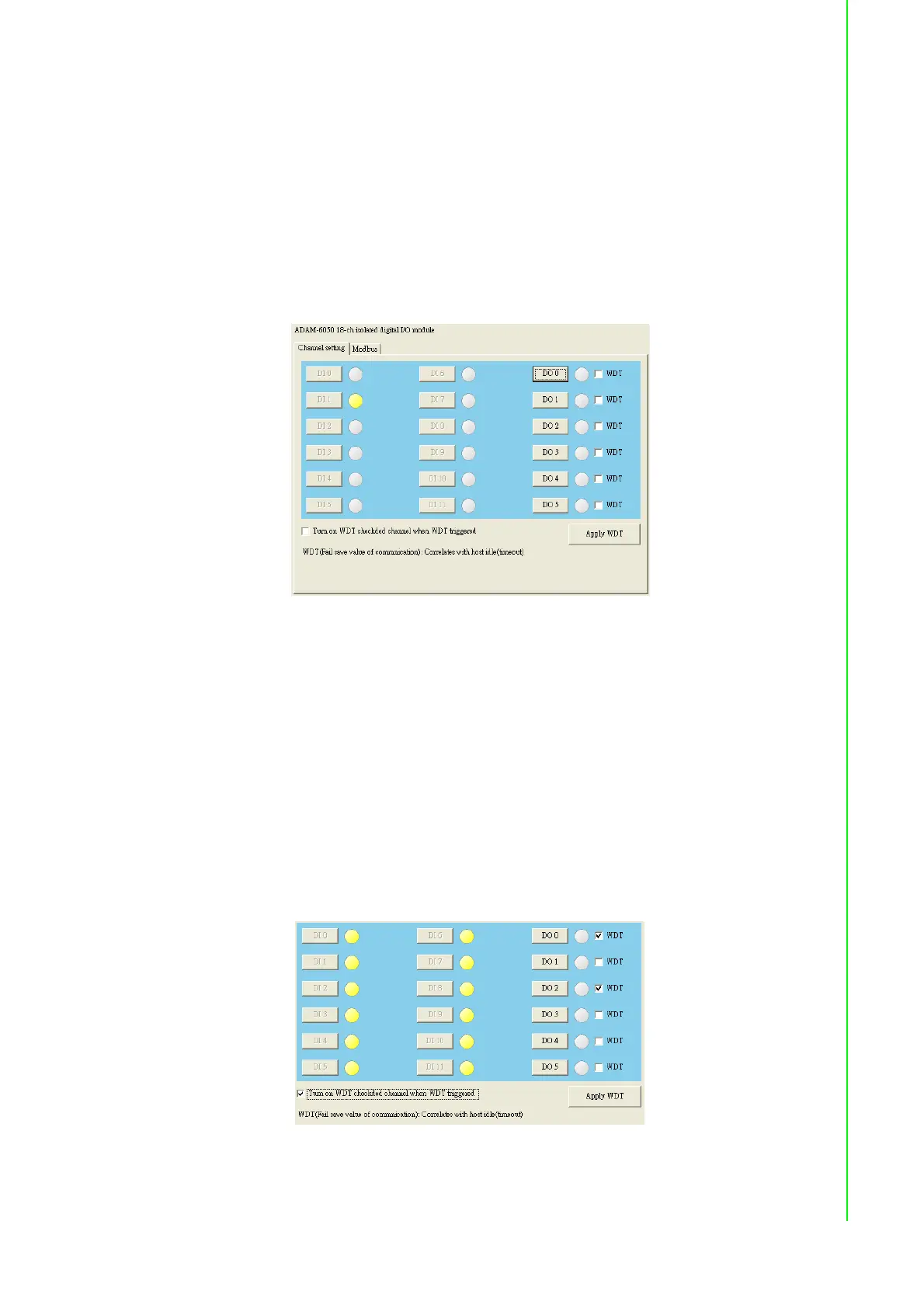

Figure 4.11 ADAM-6050 Channel Setting
1. Channel Setting
You can see value of all digital input channels by related LED display in this tab.
Besides, you also can control values of all digital output channels by related button.
The LED next to the button will display current value of that digital output channel.
When the communication between host PC and ADAM-6100 digital modules is bro-
ken, the digital output channel can generate a predefined value (this value is called
fail safe value). You can enable or disable this function by click the Turn on WDT
checked channel when WDT triggered check box. You can define the fail safe
value by the WDT check box next to the DO status LED. After configure related set-
ting, click the Apply WDT button. Take Figure 5.13 below as example. The fail safe
value function is enabled. If the communication between ADAM-6100 digital module
and host PC is broken, channels 0 and 2 will automatically generate logic high value,
while channels 1, 3, 4, 5 will automatically generate logic low value.
Figure 4.12 Fail Safe Value Configuration
2. Modbus
You can see current digital input or digital output values for all related Modbus
address.
