3 ADAM-6100PN Series User Manual
Chapter 2 Hardware Installation Guide
2.2 Mounting
ADAM-6100 modules are designed as compact units and are allowed to be installed
in the field site under the following methods.
2.2.1 Panel Mounting
Each ADAM-6100 Module is packed with a plastic panel mounting bracket. Users
can refer the dimensions of the bracket to configure an optimal placement in a panel
or cabinet. Fix the bracket first, then, fix the ADAM-6100 module on the bracket.

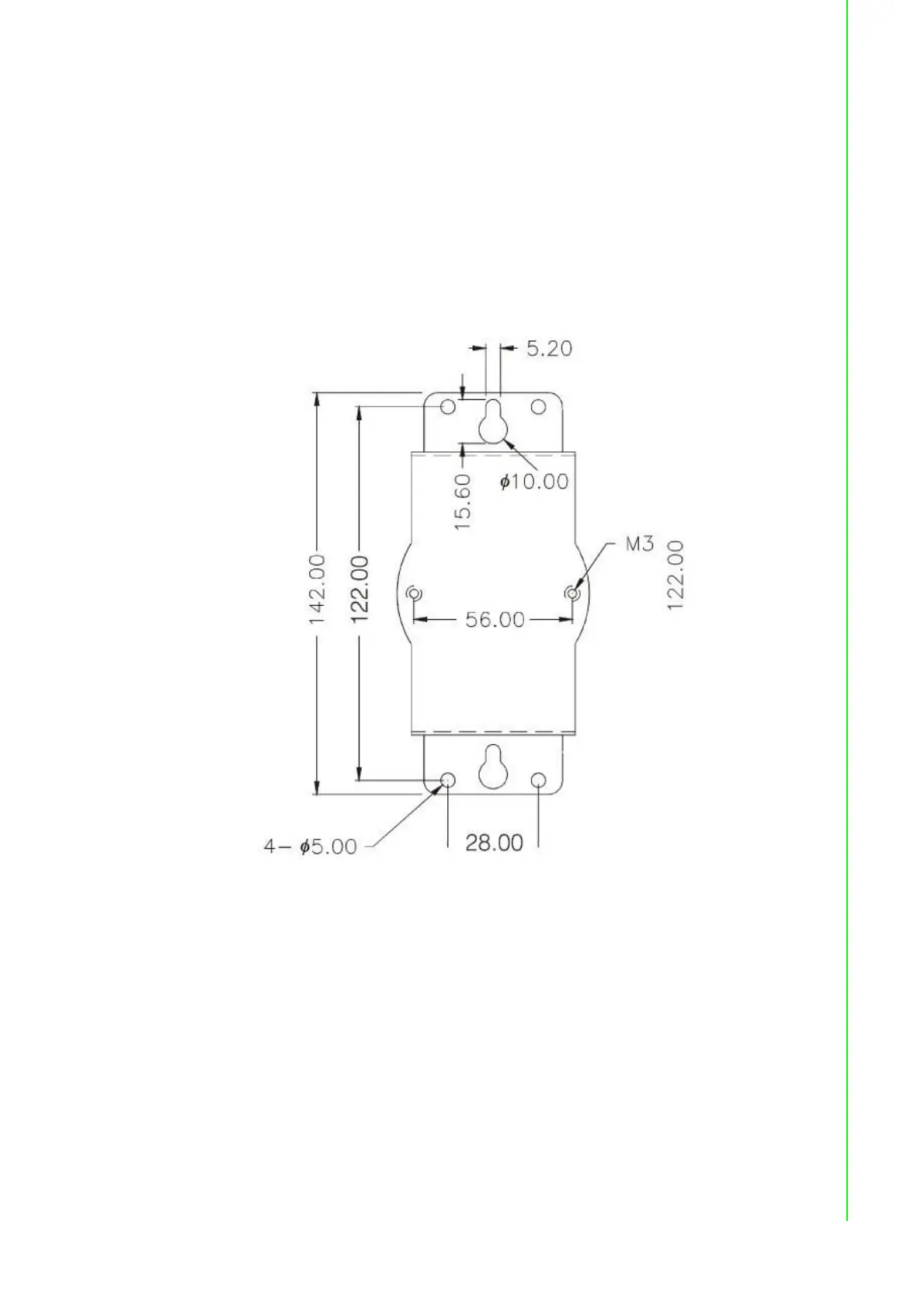

Figure 2.1 Panel Mounting Dimensions
To Next Page
