Advantech ADAM-6156PN User Manual

ADAM-6100PN Series User Manual 4

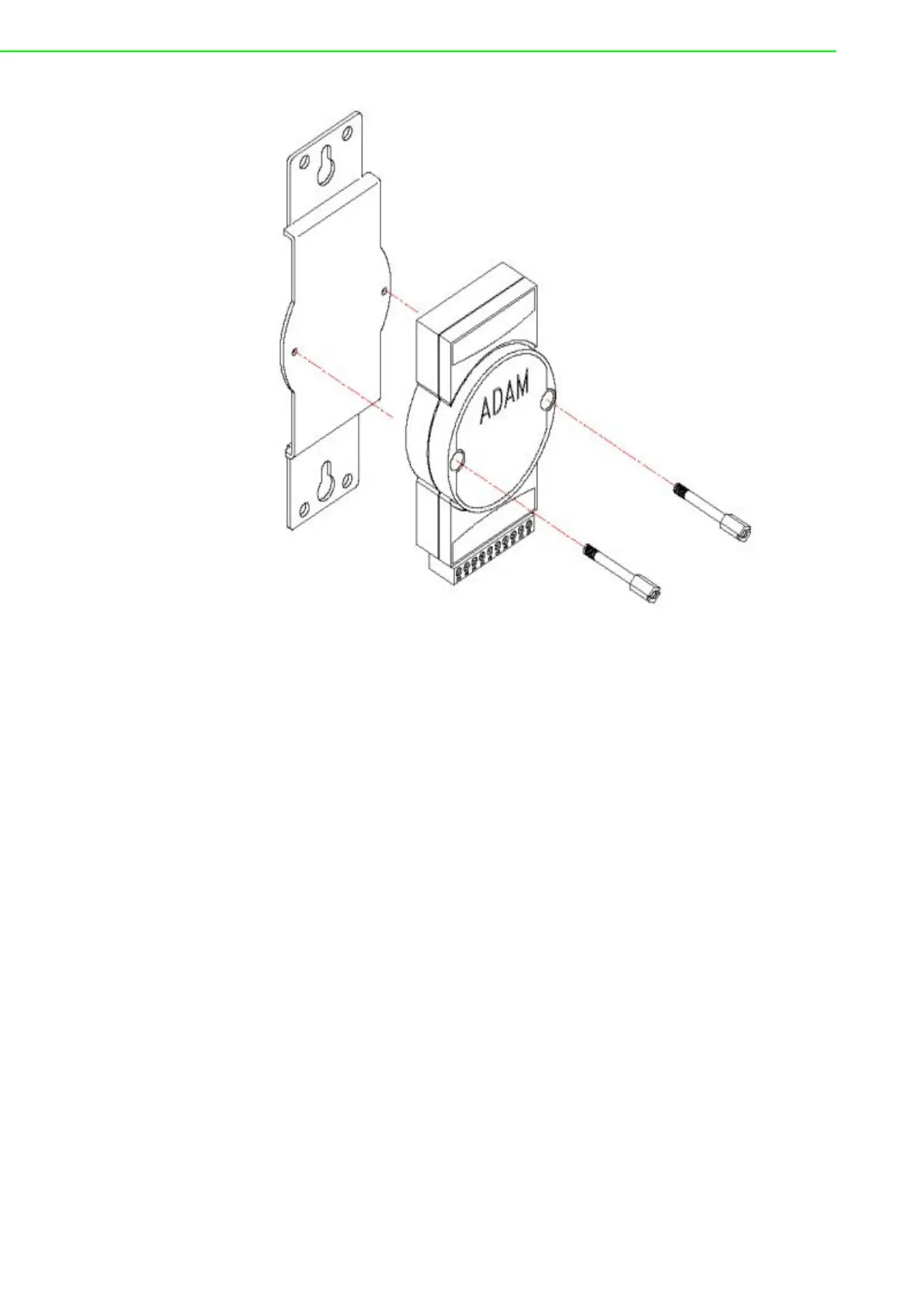

Figure 2.2 Fix Module on the Bracket
2.2.2 DIN-rail mounting
The ADAM-6100 module can also be secured to the cabinet by using mounting rails.
Fix the ADAM-6100 module with the DIN-rail adapter as Figure 2-3. Then secure it on
the DIN-rail as Figure 2-4. If you mount the module on a rail, you should also con-
sider using end brackets at each end of the rail. The end brackets help keep the mod-
ules from sliding horizontally along the rail.
