35 ADAM-6100PN Series User Manual
Chapter 4 System Configuration Guide
After you choose the alarm mode for high alarm or low alarm, click the Apply mode
button. Then you can define the high alarm value or low alarm value by entering the
value in Alarm limit text box. After you enter the alarm value, click the Apply limit
button. Once you have configured the alarm mode and alarm value, you can lever-
age ADAM-6100 analog input alarm function.
Universal Input and Output Module (ADAM-6024)
4.3.3.3 All Channel Configuration
ADAM-6024 module features analog input, analog output, digital input and digital out-
put. Click the All Channel Configuration item. In the Status Display area, there will
be two tabs: Input and Output. On the Input tab, there are still four parts on the Sta-
tus Display area, which is the same as ADAM-6015, ADAM-6017 and ADAM-6018
module. All the configurations in the Channels Range Configuration, Integration
Time Configuration and Calibration areas are just the same as the configuration of
ADAM-6015, ADAM-6017 and ADAM-6018 module. Refer to Figure 5.10 below.

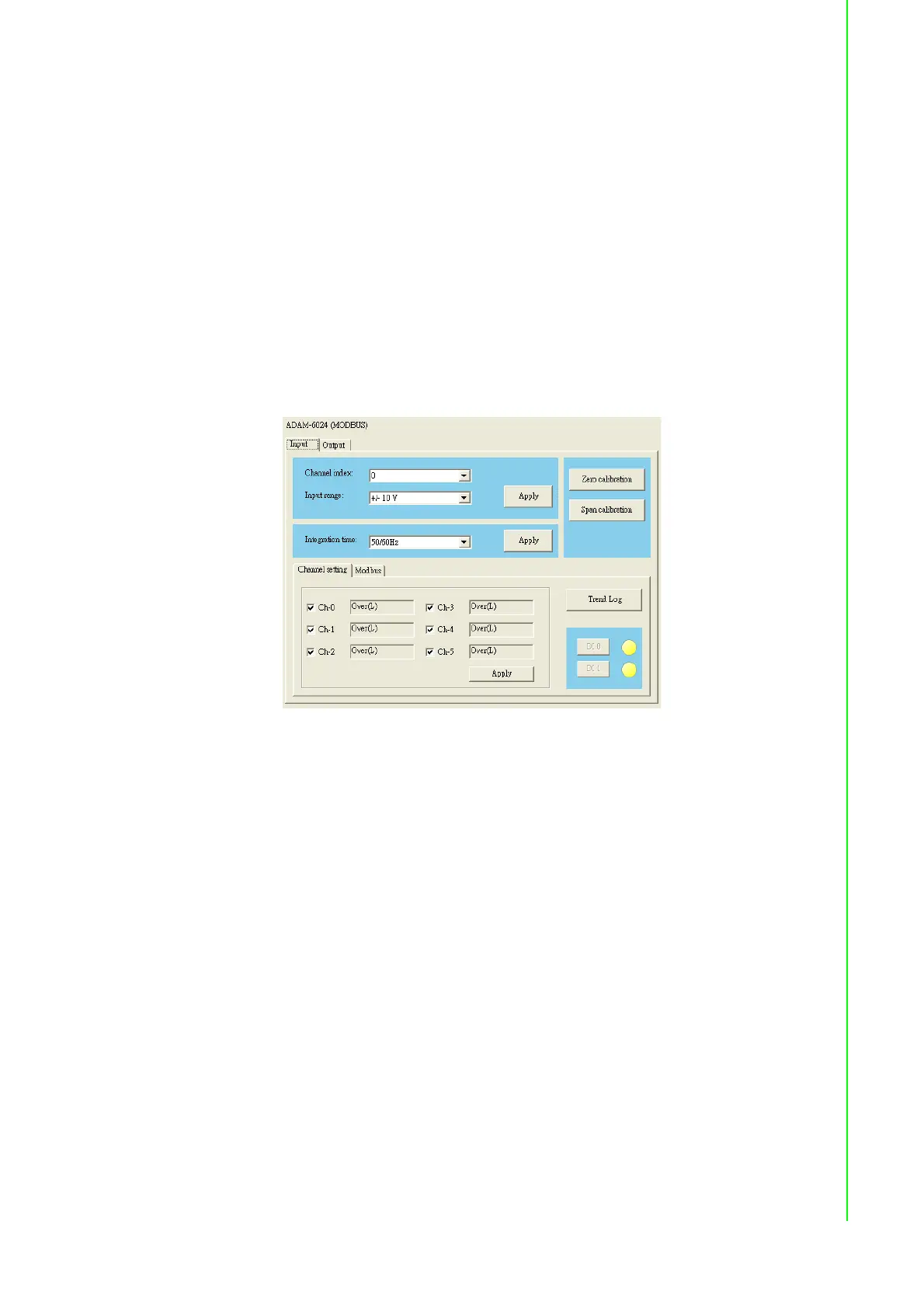

Figure 4.9 ADAM-6024 Input Tab
However, at the bottom of the Status Display area, there are only two tabs to see
analog input value of all channels: (This is because ADAM-6024 doesn’t feature
averaging, maximum and minimum calculation function)
1. Channel Setting
You can see the current value of analog input on this tab. Choose the check box of
the analog input channels you want to monitor and click the Apply button. If the ana-
log input value is out of the input range, you will see “Over(L)” in the analog input
value text box. At the right side, you can see current digital input value by DI 0 and DI
1 LED display.
You also can see the graphical historical trend of analog input channel by clicking the
Trend Log button. All the operations for trend logging is the same as ADAM-6015,
ADAM-6017 and ADAM-6018 module.
