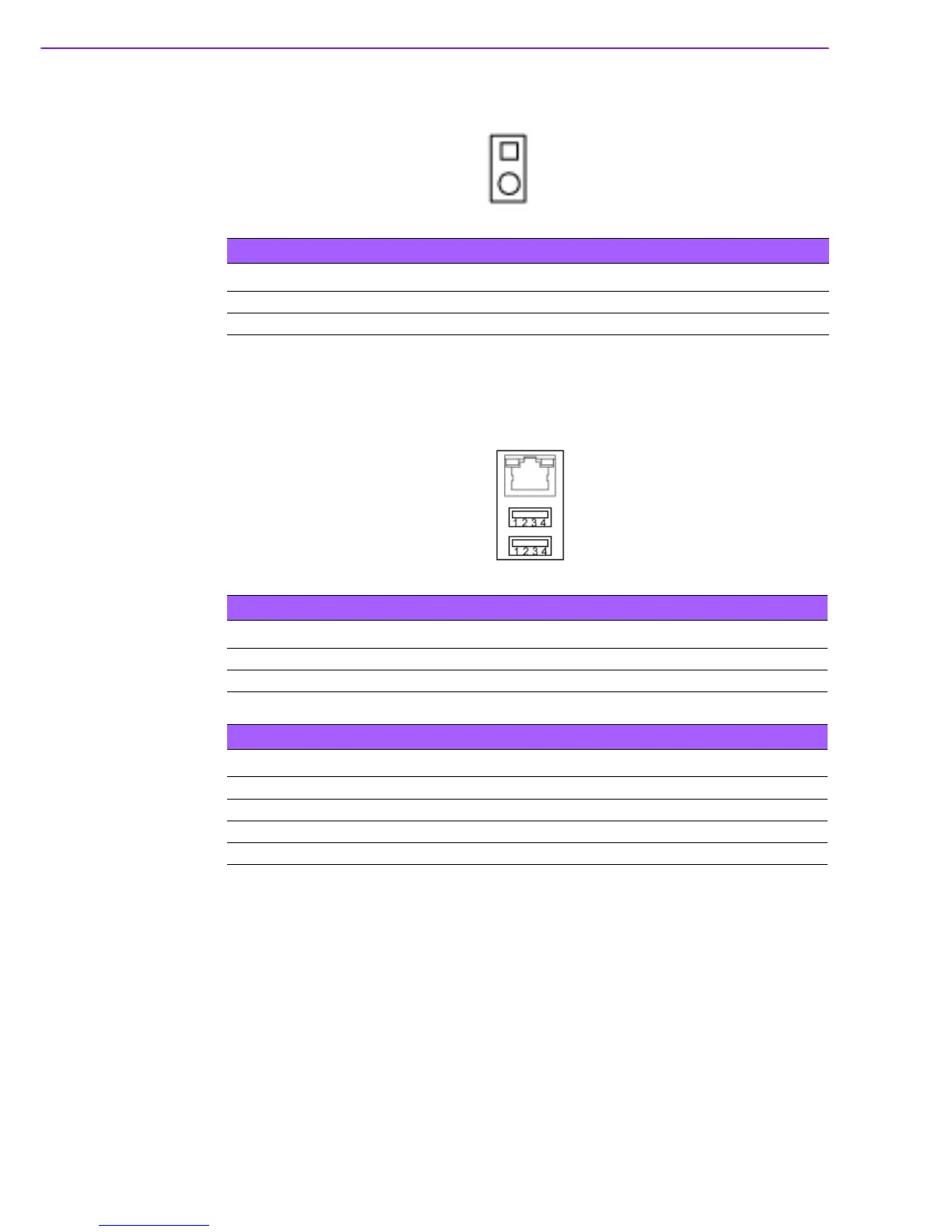

ASMB-585 User Manual
104
B.1
1
A
TX Sof
t Power Switch (JFP1)
B.12
USB/LAN port
s (LAN1_USB1_2 and
LAN2_USB3_4)
T
able B.1
1: A
TX Soft Power Switch (JFP1)
Pin
Signal
3P
W
R
-
B
T
N
6G
N
D
3
6
T
able B.12: USB Port
Pin
Signal
Pin
Signal
1
VCC_DUAL
3
Data0+
2D
a
t
a
0
-
4
G
N
D
T
able B.13: Gig
a LAN
10/100/1000 Mbps RJ-45 port
Pin
Signal
Pin
Signal
1
MID0+
5
MID2+
2
MID0-
6
MID2+
3
MID1+
7
MID3+
4
MID1-
8
MID3+
115
117
Table of Contents
Default Chapter
4
Declaration of Conformity
4
Table of Contents
9
Chapter 1 Hardware Configuration
13
Introduction
14
Features
14
Specifications
15
System
15
Memory
15
Input/Output
15
Graphics
15
Ethernet LAN
15
Industrial Features
15
Mechanical and Environmental Specifications
16
Jumpers and Connectors
16
Table 1.2: Connector List
17
Board Layout: Jumper and Connector Locations
18
Onboard LAN LED Color Definition
18
ASMB-585 Block Diagram
19
Safety Precautions
19
Jumper Settings
20
How to Set Jumpers
20
Table 1.6: Watchdog Timer Output (JWDT1)
21
System Memory
22
Table 1.8: (CPUFAN_SEL1, SYSFAN_SEL1)
22
Memory Installation Procedures
23
Chapter 2 Connecting Peripherals
25
Introduction
26
USB Ports (LAN1_USB12,LAN2_USB56, LAN34, USB7~13)
26
USB Power Switch
27
VGA and DVI1, DVI2 Connector
28
Serial Ports (COM1 ~ COM6)
29
External Keyboard & Mouse (KBMS1)
30
CPU Fan Connector (CPUFAN0)
31
System FAN Connector (SYSFAN0, SYSFAN1, SYSFAN2 and SYSFAN3)
32
Front Panel Connectors (JFP1/2/3)
33
Power LED (JFP3)
34
External Speaker (JFP2 Pins 1, 4, 7, 10)
34
HDD LED Connector (JFP1 Pins 2 & 5)
34
ATX Soft Power Switch (JFP1 Pins 3 & 6)
34
Reset Connector (JFP1 Pins 9 & 12)
34
8-Pin Alarm Board Connector (VOLT1)
35
Case Open Connector (JCASE1)
36
Front Panel LAN Indicator Connector (LANLED1)
37
Serial ATA Interface (SATA0~6)
38
Pcie X16 Slots (X16 Link) Expansion Slot (PCIEX16_SLOT6)
39
Pcie X4 Expansion Slot (PCIEX4_SLOT4/5/7)
40
Auxiliary 8-Pin Power Connector (ATX12V1)
41
SPI Flash Connector(SPI_CN1)
42
Low Pin Count Connector (LPC1)
43
BIOS Operation
45
Chapter 3 BIOS Operation
45
Introduction
46
Entering BIOS Setup
46
Main Menu
46
System Time / System Date
47
Advanced BIOS Features Setup
47
Figure 3.2 Main Setup Screen
47
Trusted Computing
48
Figure 3.3 Advanced BIOS Features Setup Screen
48
ACPI Settings
49
AMT Configuration
50
PCH-FW Configuration
51
SMART Settings
52
NCT6776 HW Monitor
53
COM1/2 Configuration
54
Figure 3.12COM2 Configuration
55
COM3/4/5/6 Configuration
56
PCA-COM232/COM485 Configuration
59
Serial Port Console Redirection
61
Figure 3.14Console Redirection Setting
62
CPU Configuration
65
SATA Configuration
67
PCI Subsystem Settings
68
USB Configuration
69
CSM Configuration
70
Chipset
71
System Agent (SA) Configuration
71
Figure 3.22Graphics Configuration
72
Figure 3.23NB Pcie Configuration
73
Figure 3.24Memory Configuration
74
PCH-IO Configuration
75
Figure 3.26PCI Express Configuration
76
Figure 3.28USB Configuration
79
Figure 3.29PCH Azalia
80
Boot
82
Security
83
Save & Exit
84
Chapter 4 Chipset Software Installation Utility
87
Before You Begin
88
Introduction
88
Windows os Driver Setup
89
Chapter 5 VGA Setup
91
Introduction
92
Windows os Driver Setup
92
Chapter 6 LAN Configuration
93
Introduction
94
Features
94
Installation
94
Windows os Driver Setup (LAN)
94
Chapter 7 Intel ME
95
Introduction
96
Installation
96
Intel USB 3.0
97
Chapter 8 Intel USB 3.0
97
Introduction
98
Installation
98
Chapter 9 SATA RAID Setup
99
Introduction
100
SATA RAID Driver and Utility Setup
100
HD Audio
101
Chapter 10 HD Audio
101
Introduction
102
Installation
102
Appendix A Programming the Watchdog Timer
104
Watchdog Timer Overview
104
Programming the Watchdog Timer
104
Example Programs
106
Table A.1: Watchdog Timer Registers
106
Appendix B I/O Pin Assignments
111
USB2.0 Header (USB7~12)
112
USB3.0 Header (USB3_4)
112
VGA Connector (VGA)
113
Interface (COM12)
113
External Keyboard and Mouse Connector (KBMS1)
114
System Fan Power Connector (SYSFAN0~3)
114
Power LED and Keyboard Lock (JFP3)
114
External Speaker Connector (JFP2)
115
Reset Connector (JFP1)
115
HDD LED Connector (JFP2)
115
ATX Soft Power Switch (JFP1)
116
USB/LAN Ports (LAN1_USB1_2 and LAN2_USB3_4)
116
Front Panel Audio Connector (FPAUD1)
117
8-Pin Alarm Board Connector (VOLT1)
117
Case Open Connector (JCASE1)
118
Front Panel LAN LED Connector (LAN_LED1,LAN_LED2)
118
SPI_CN1: SPI Flash Card Pin Connector
118
GPIO Connector
119
System I/O Ports
119
B.18 GPIO Connector
119
Interrupt Assignments
120
1St MB Memory Map
120
B.20 Interrupt Assignments
120
