1.6 ASMB-585 Block Diagram

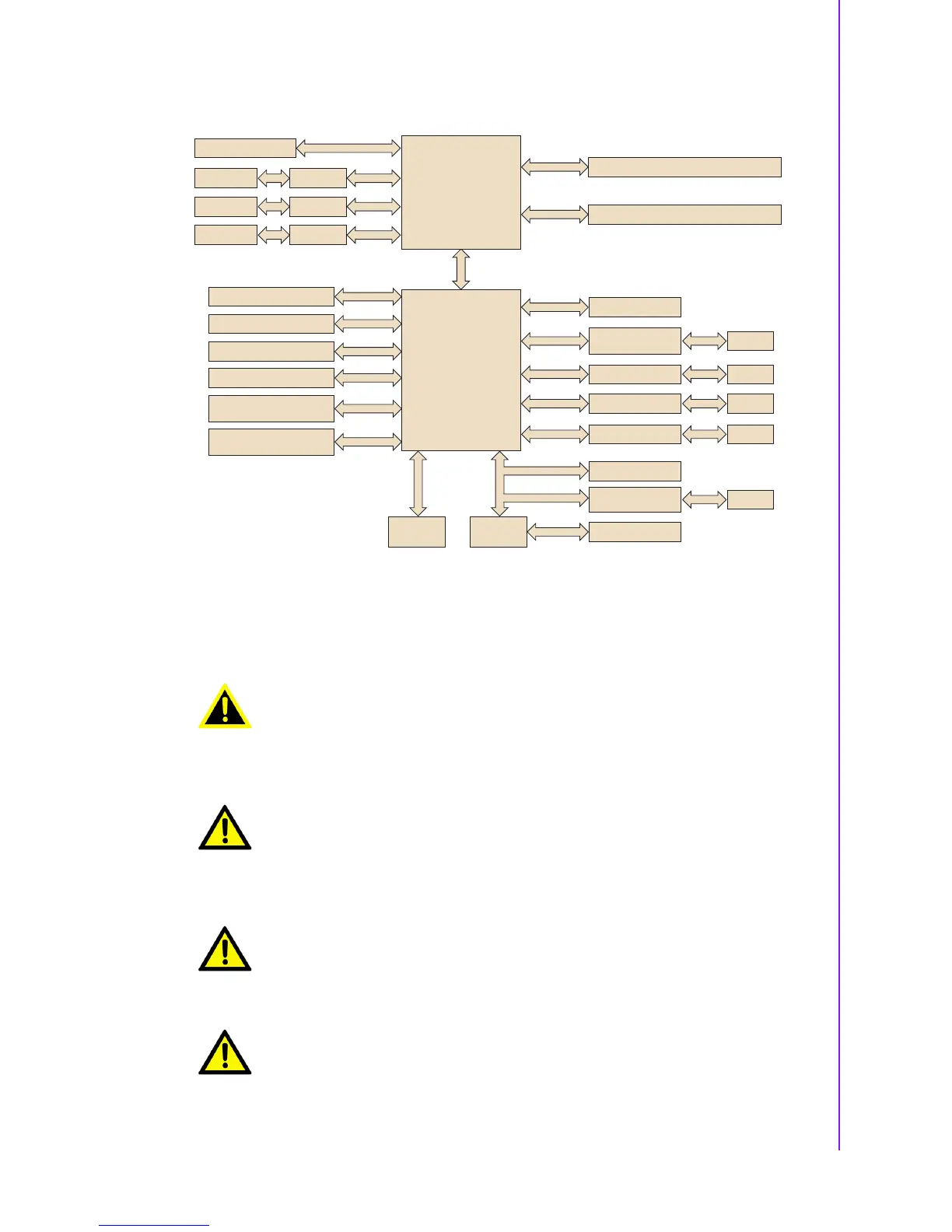

Figure 1.2 ASMB-585 Block Diagram
1.7 Safety Precautions
Channel A
Intel C236 PCH
DMI
SPI Bus
LPC Bus
2 x DDR4 ECC/Non-ECC 2133/1866/1600 MHz
Channel B
2 x DDR4 ECC/Non-ECC 2133/1866/1600 MHz
HD Audio
PCIe Gen3 x4
HD Audio header
PCIe x4 slot- slot 7
PCIe Gen3 x1
PCIe x4 slot- slot 5
PCIe Gen3 x4
PCIe x4 slot- slot 4
600MB/s
7 x SATA III
USB 2.0
3 x USB 2.0 header (6 ports)
1 x Type-A connector
USB 3.0
4 x USB 3.0 (rear side)
1 x USB3.0 header (2 ports)
LPC Connector
PCIe x 1
LAN1: Intel I219LM
(PHY)
RJ45
PCIe x 1
LAN2: Intel I210AT
RJ45
PCIe x 1
LAN3: Intel I210AT
RJ45
PCIe x 1
LAN4: Intel I210AT
2 x RS-232
Nuvoton
NCT6776D
16 MB
BIOS Flash
RJ45
4 x RS-232
PCIe
G
en3 x16
PCIe x16 slot-slot 6
Level Shifter
DVI-D
DP
Level Shifter
DVI-D
DP
Converter
VGA (D-Sub)
DP
Intel E3-1200 v5 and
6th Gen Core I3/i5/i7 series
Processors
LPC to UART
F81216AD
Warning! Always completely disconnect the power cord from your chassis when-
ever you work with the hardware. Do not make connections while the
power is on. Sensitive electronic components can be damaged by sud-
den power surges. Only experienced electronics personnel should open
the PC chassis.
Caution! Always ground yourself to remove any static charge before touching the
motherboard. Modern electronic devices are very sensitive to static
electric discharges. As a safety precaution, use a grounding wrist strap
at all times. Place all electronic components on a static-dissipative sur-
face or in a static-shielded bag when they are not in the chassis.
Caution! The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace
only with same or equivalent type recommended by the manufacturer.
Discard used batteries according to manufacturer’s instructions.
Caution! There is a danger of a new battery exploding if it is incorrectly installed.
Do not attempt to recharge, force open, or heat the battery. Replace the
battery only with the same or equivalent type recommended by the man-
ufacturer. Discard used batteries according to the manufacturer’s
instructions.
