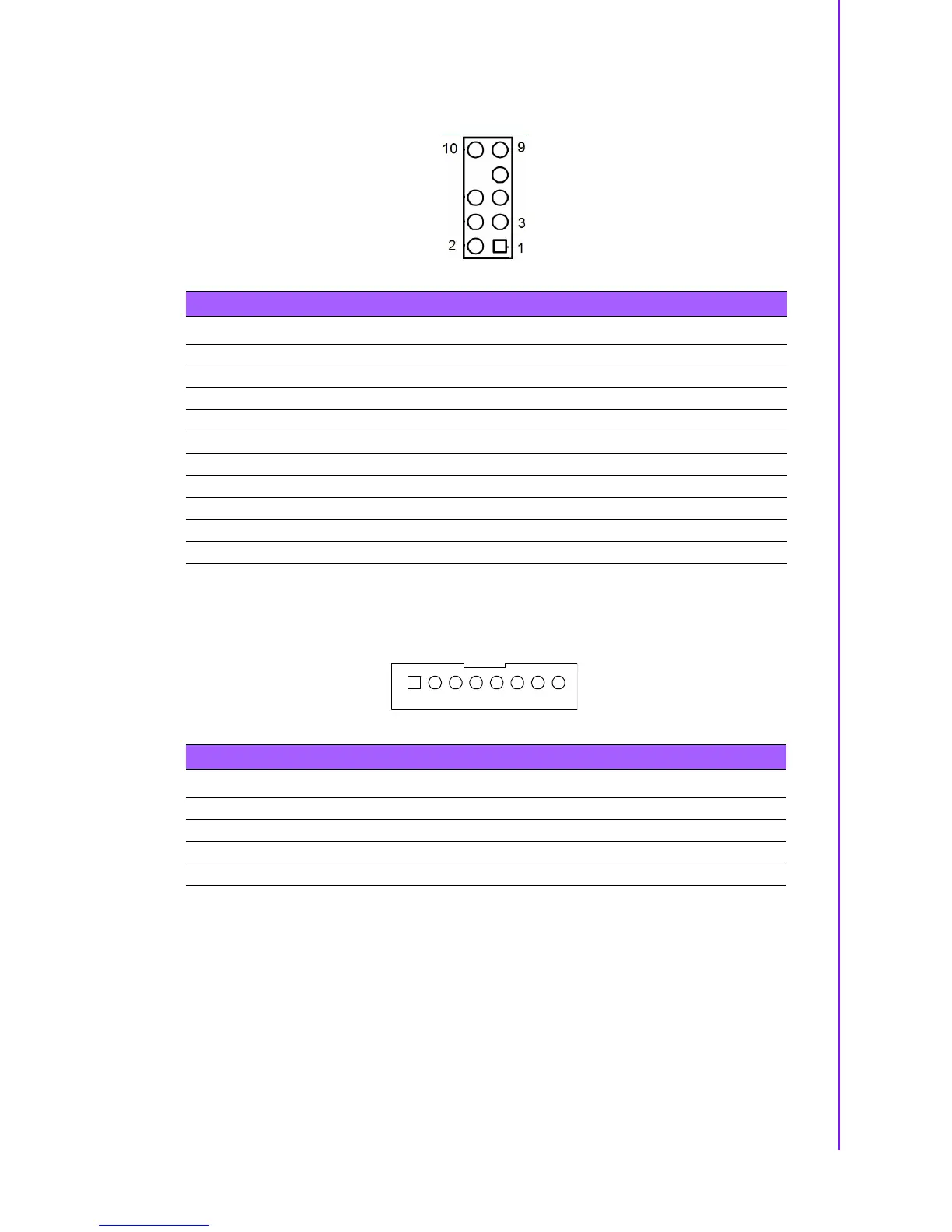

105
ASMB-585 User Manual
Appendix B
I/O Pin
Assignments
B.13
Front Panel Audio Connector (FP
AUD1)
B.14
8-pin Alarm Board Connector (VOL
T1)
T
able B.14: Front Panel
Audio Connector (FP
AUD1)
Pin Signal
1 MIC2_L
2 AGND
3 MIC2_R
4 PRESENSE
5 LIN2_R
6 MIC_DEC
7 FIO_JD
8 N/A
9 LIN2_L
10 LINEOUT2
_DEC
T
able B.15: 8-pin Alarm
Board Connector (VOL
T1)
Pin
Signal
Pin
Signal
1
5VSB
5
VCC
2G
N
D
6
V
C
C
3
3G
N
D
7
-
1
2
V
4
-5V
8
+12V
1 8
