Advantech ASMB-585 User Manual

ASMB-585 User Manual 106

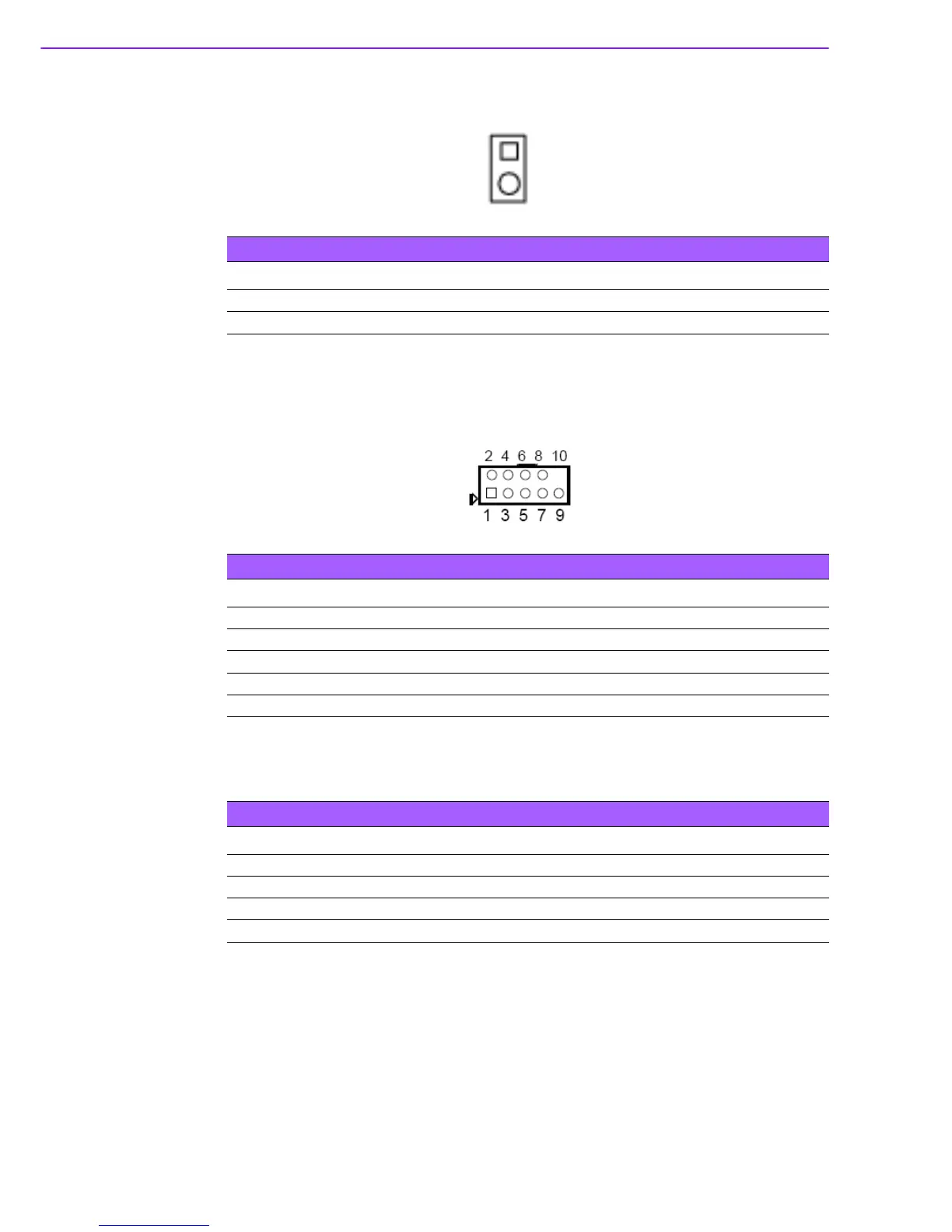

B.15 Case Open Connector (JCASE1)
B.16 Front Panel LAN LED Connector
(LAN_LED1,LAN_LED2)
B.17 SPI_CN1: SPI flash card pin connector
Table B.16: Case Open Connector (JFP1)
Pin Signal
1 CASEOP
2GND
1
2
Table B.17: LAN LED Connector (LAN_LED1/2)
Pin Signal Pin Signal
1 LAN1_LED0_ACT 2 LAN2_LED1_ACT
3 VCC3_LAN1LED 4 VCC3_LAN2LED
5 LAN1_LED1_1000M 6 LAN2_LED2_1000
7 LAN1_LED2_100M 8 LAN2_LED0_100
9 VCC3 10 N/C
Table B.18: SPI_CN1:SPI fresh card pin connector
Pin Signal Pin Signal
1 +3VSB 2 GND
3 SPI_CS# 4 SPI_CLK
5 SPI_MISO 6 SPI_MOSI
7N/A 8NC
