41 ASMB-585 User Manual
Chapter 3 BIOS Operation
3.3.6 NCT6776 HW Monitor

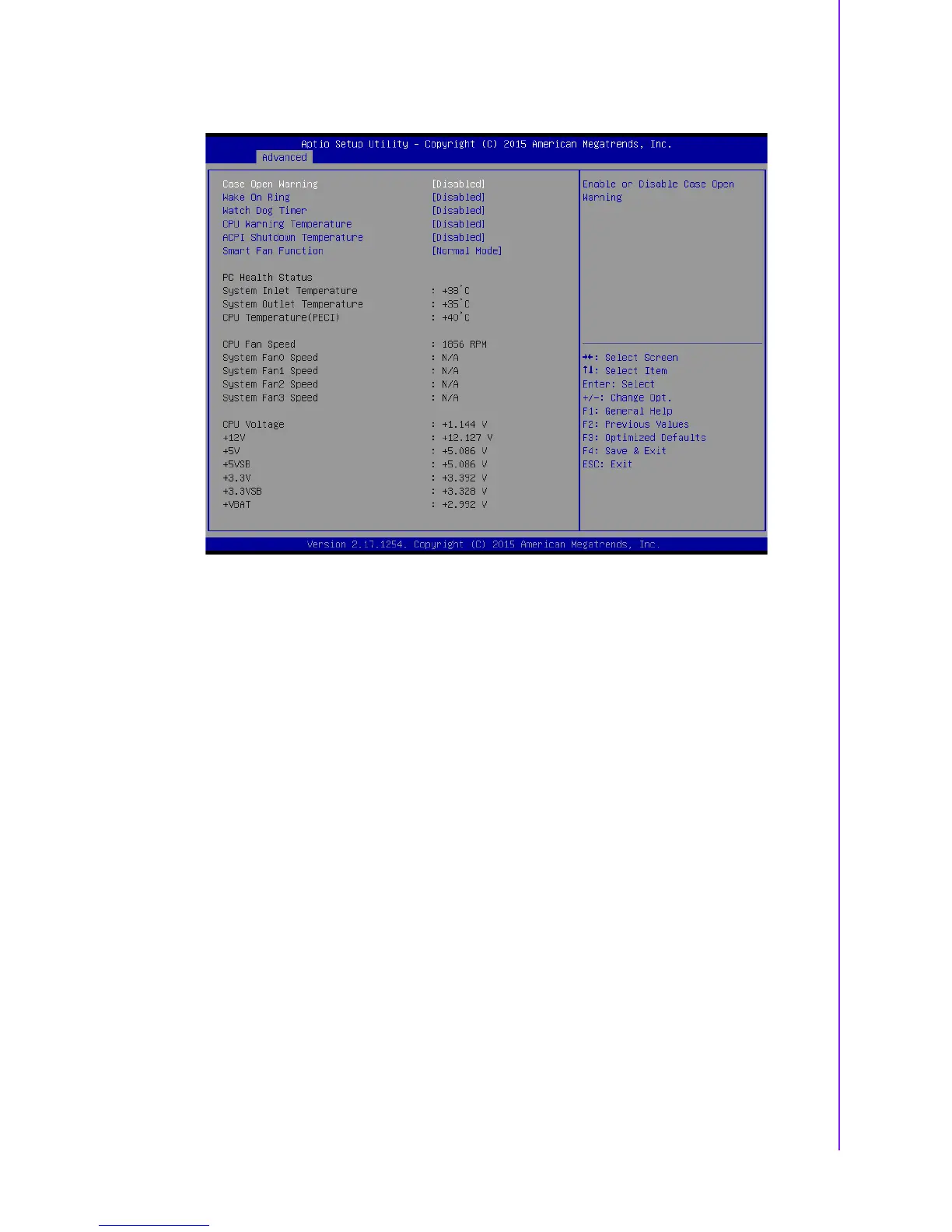

Figure 3.9 PC Health Status
Case Open Warning
Enable/Disable the chassis Intrusion monitoring function. When enabled and
the case is opened, a warning message will show in post screen.
Wake On Ring
Enable/Disable Wake On Ring Function.
Watch Dog Timer
Enable/Disable Watch Dog Timer Function.
CPU Warning Temperature
Use this to set the CPU warning temperature threshold. When the system
reaches the warning temperature, the speaker will beep.
ACPI Shutdown Temperature
Use this to set the ACPI shutdown temperature threshold. When the system
reaches the shutdown temperature, it will be automatically shut down by ACPI
OS to protect the system from overheat damage.
Smart Fan Function
ASMB-585 offers three different fan curves:
1.Normal Mode - Enable smart fan for normal system configuration.
2.Quiet Mode - Enable smart fan for quiet system with no expansion cards.
3.Disable - All fans run as full speed.
