ASMB-585 User Manual 62
 PCIe SLOT6 (ROOT PORT0)
Enable Root Port.
Enable or Disable the Root Port.
 Max Link Speed
Configure PEG 0:1:0 Max Speed.
 PCIe SLOT6 (ROOT PORT1)
Enable Root Port.
Enable or Disable the Root Port.
 Max Link Speed
Configure PEG 0:1:1 Max Speed.
 PCIe SLOT6 (ROOT PORT2)
Enable Root Port.
Enable or Disable the Root Port.
 Max Link Speed
Configure PEG 0:1:2 Max Speed.
 Detect Non-Compliance Device
Detect Non-Compliance PCI Express Device in PEG.
3.4.1.4 Memory Configuration

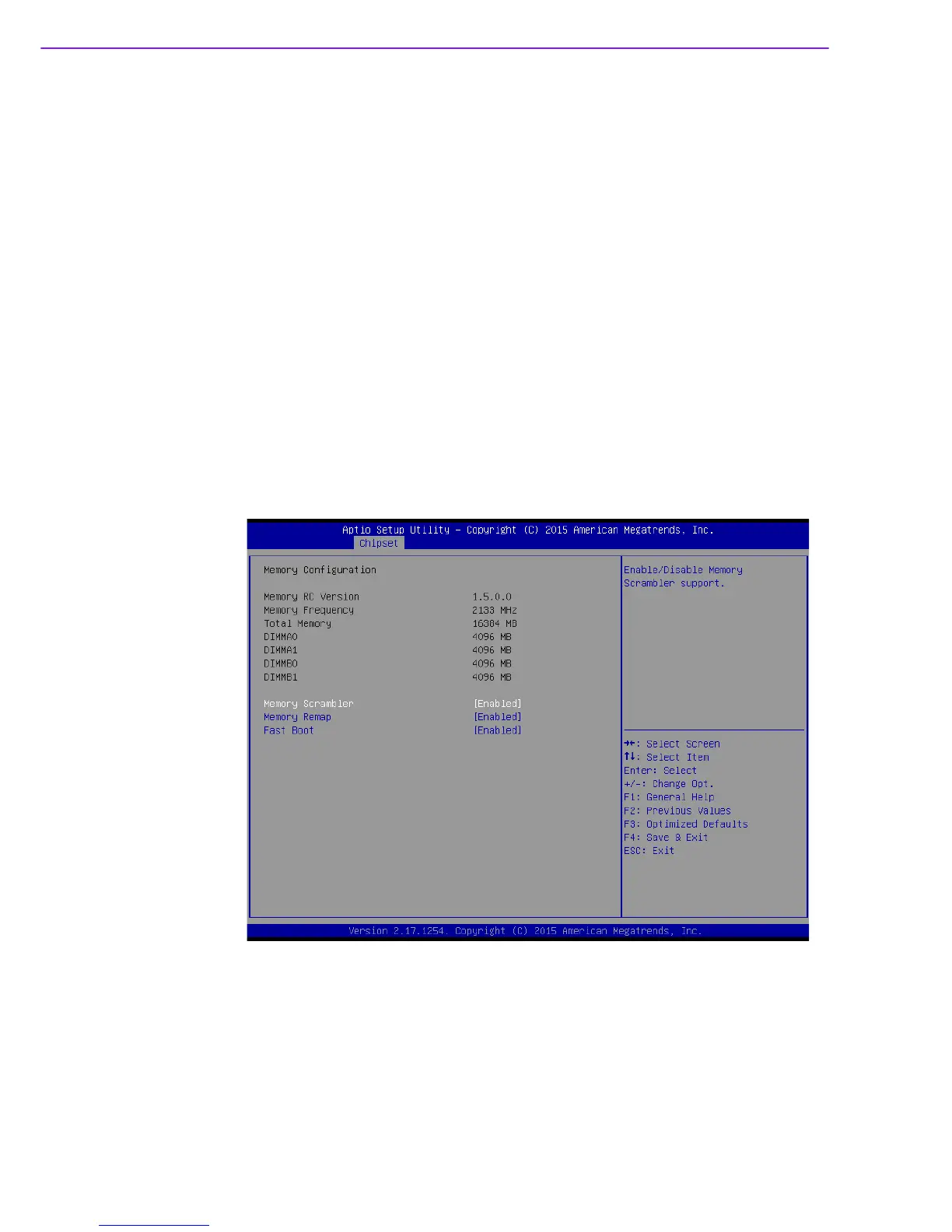

Figure 3.24 Memory Configuration
 Memory Scrambler
Enable/Disable Memory Scrambler support.
 Memory Remap
Enable/Disable Memory Remap above 4G.
 Fast Boot
Enable/Disable fast path thru the MRC.
