 SATA Controller(s)
This item is to enable or disable SATA devices.
 SATA Mode Selection
Set as IDE, AHCI, or RAID when SATA Controllers are enable.
 Port 0~6
To enable or disable SATA port 0~5.
 Hot Plug
Designates this port as Hot Pluggable.
 External SATA
External SATA support.
 Port 0~6 Device Type
To identify the SATA is connected to Solid State Drive or Hard Disk Drive.
 Port 0~6 Spin Up Device
On an edge detect from 0 to 1, the PCH starts a COMRESET initialization
sequence to the device.
3.3.13 PCI Subsystem Settings

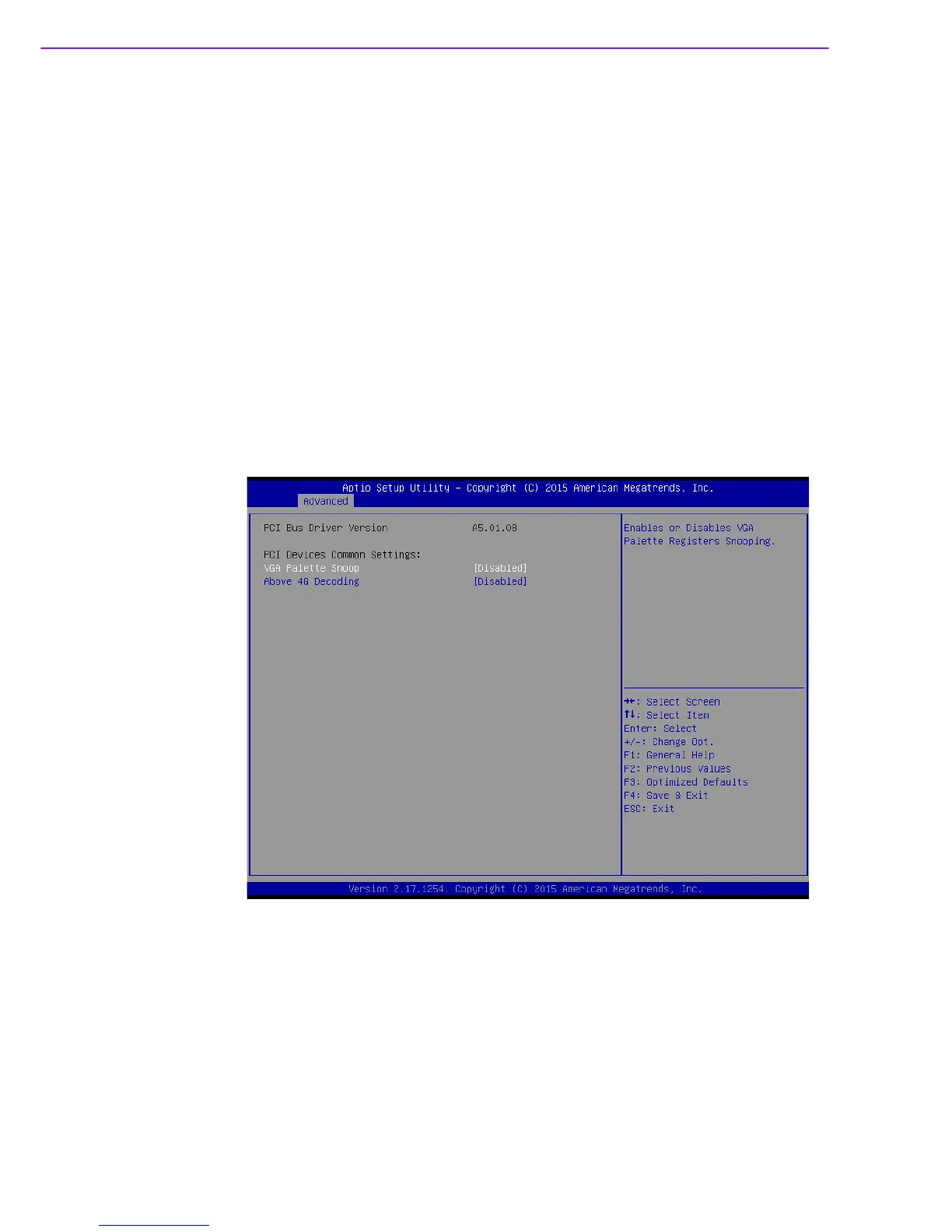

Figure 3.17 PCI subsystem settings screen
 PCI Latency Timer
Value in units of PCI clocks for PCI device latency timer register.
 VGA Palette Snoop
This item is designed to solve problems caused by some non-standard VGA
cards.
