ASMB-585 User Manual 14
2.1 Introduction
You can access most of the connectors from the top of the board as it is being
installed in the chassis. If you have a number of cards installed, you may need to par-
tially remove a card to make all the connections.

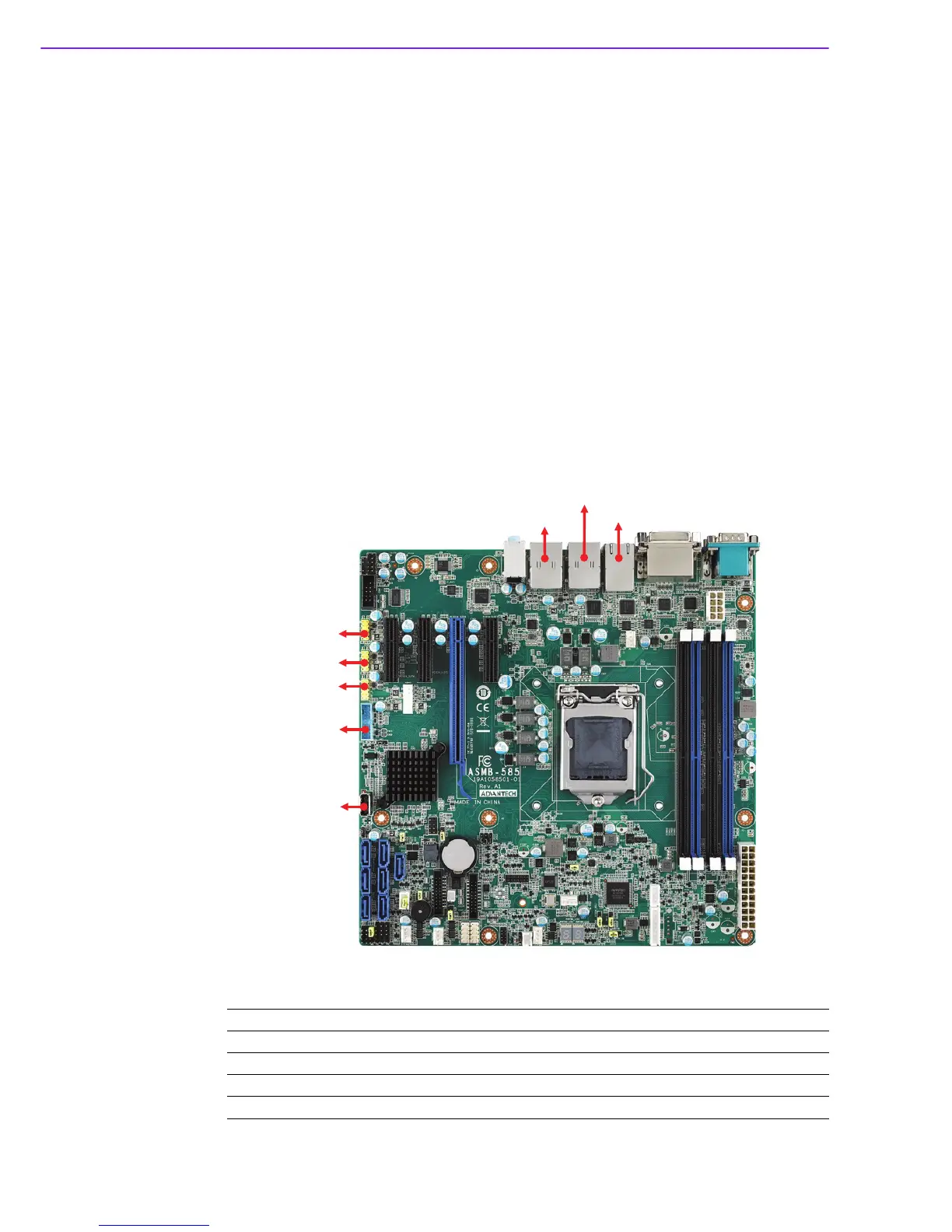

2.2 USB Ports (LAN1_USB12,LAN2_USB56, LAN34,
USB7~13)
ASMB-585 provides up 13 USB ports. USB7~13 are USB 2.0 ports supporting trans-
mission rates up to 480 Mbps, and USB1~6 are USB 3.0 ports supporting transmis-
sion rate up to 5Gbps.These ports support Plug & Play and hot swapping for up to
127 external devices and are able to be disabled in BIOS menu.
The ASMB-585 is equipped with two (G2 sku) or four (G4 sku) high-performance
1000 Mbps Ethernet LANs. They are supported by all major network operating sys-
tems. The RJ-45 jacks on the rear plate provide convenient 1000 Mbps operation.
If all USB ports will be used, USB power is recommended to switch to +5V instead of
+5VSB.
LAN 1/2/3/4 LED Indicator
LAN Mode LAN Indicator
1 Gbps Link on LED1 Green on (left)
100 Mbps Link on LED1 Orange on (left)
10 Mbps Link on LED1 N/A (left)
Active LED2 Green flash (right)
