51 ASMB-585 User Manual
Chapter 3 BIOS Operation
VT-UTF8 Combo Key Support
To enable VT-UTF8 combination key for supporting ANSI/VT100 terminals.
Recorder Mode
When this mode enabled, only text will be send. This is to capture Terminal data.
Options available: Enabled/Disabled.
Resolution 100x31
Enables or disables extended terminal resolution.
Options available: Enabled/Disabled.
Legacy OS Redirection Resolution
On Legacy OS, the number of Rows and Columns supported redirection.
Options available: 80x24/80X25.
Putty Keypad
To support selection function key and keypad on Putty.
Redirection After BIOS POST
The settings specify if Bootloader is selected then legacy console redirection is
disabled before booting to legacy OS.
Default value is always enable which means legacy console redirection is
enabled for legacy OS.

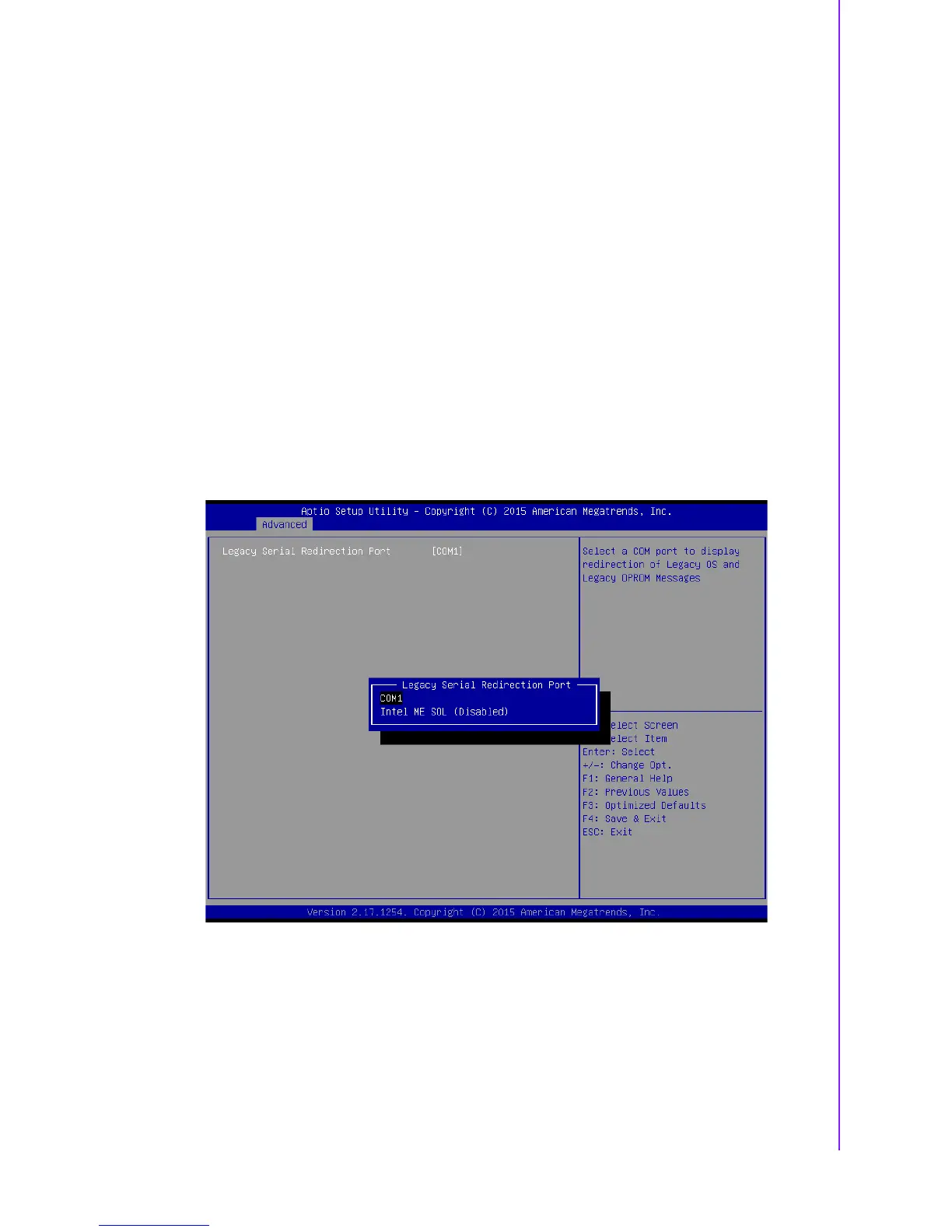

Legacy Console Redirection Settings
Select a COM port to display redirection of legacy OS and legacy OpROM mes-
sages.
