Advantech DS-370 User Manual

7 DS-370 User Manual
Chapter 2 Hardware Installation

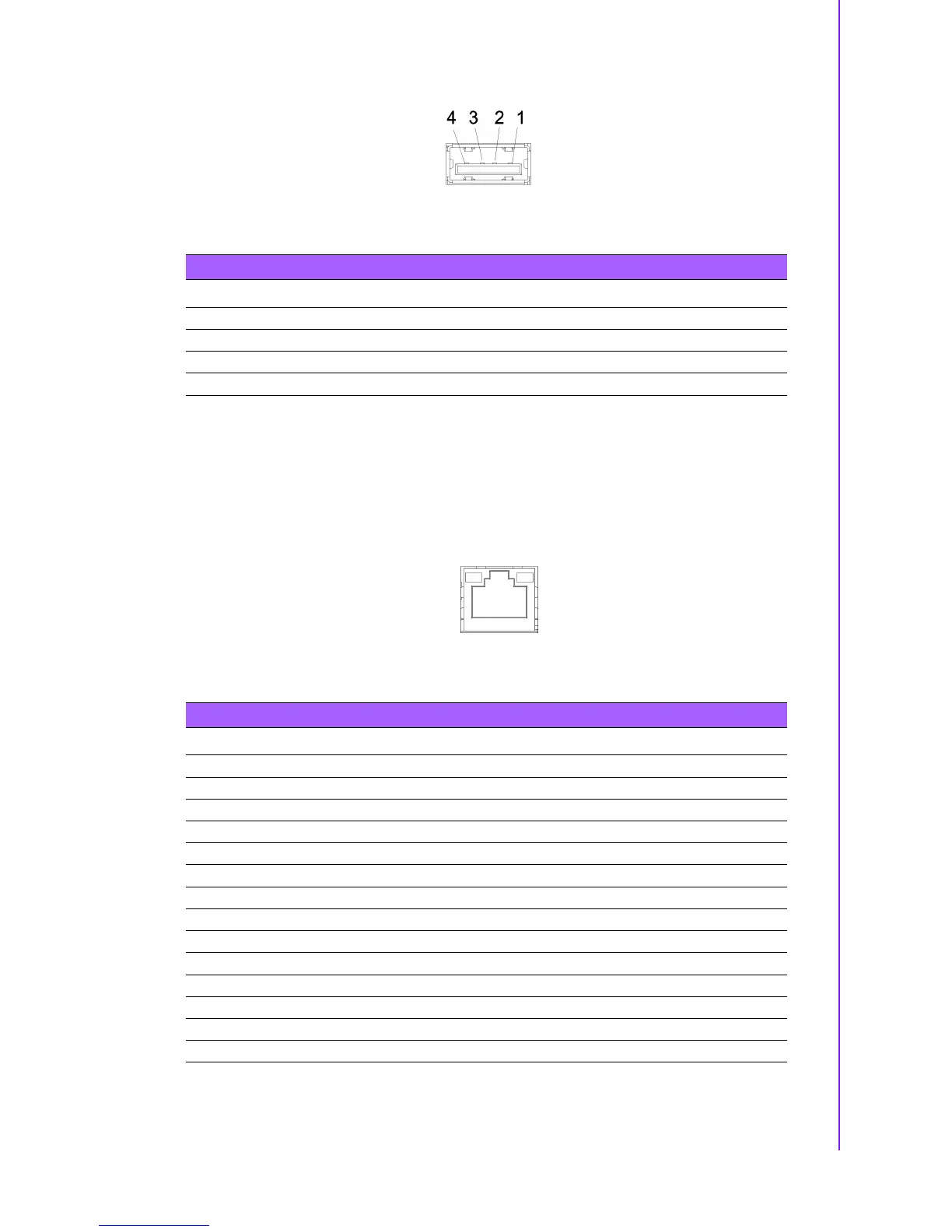

Figure 2.4 USB connector
2.2.3 Ethernet Connector (LAN)
DS-370 features two RJ45 LAN interface connectors (one LAN at the front and one at
the rear). These connectors are fully compliant with IEEE 802.3u 10/100/1000 Base-
T CSMA/CD standards. The Ethernet port supports a standard RJ-45 jack connector,
and LED indicators at the front of DS-370 display its active link and speed status.
Figure 2.5 LAN connector
Table 2.1: USB Port Pin Assignments
Pin Signal Name
1VCC
2 USB Data-
3 USB Data+
4GND
Table 2.2: LAN Connector Pin Assignments
Pin Signal Name
1MDI0+
2MDI0-
3MDI1+
4MDI1-
5GND
6GND
7MDI2+
8MDI2-
9 M D I 3 +
10 MDI3-
11 VCC
12 ACT
13 Li nk 1 0 0 #
14 Link1000#

Advantech DS-370 Specifications

General

Brand	Advantech
Model	DS-370
Category	Digital Signage
Language	English
