DS-370 User Manual
16
2.4.3
Mini PCle and SIM Card Inst
allation
[T
op]
1.
Loosen the four screws that secure the top cover o
f the device..
2.
Remove the heat-sink cover
.
3.
Insert the mini PCIe module and SIM card into th
e apporpriate sockets.
4.
Reattach the heat
-sink cover and tighten the screws.

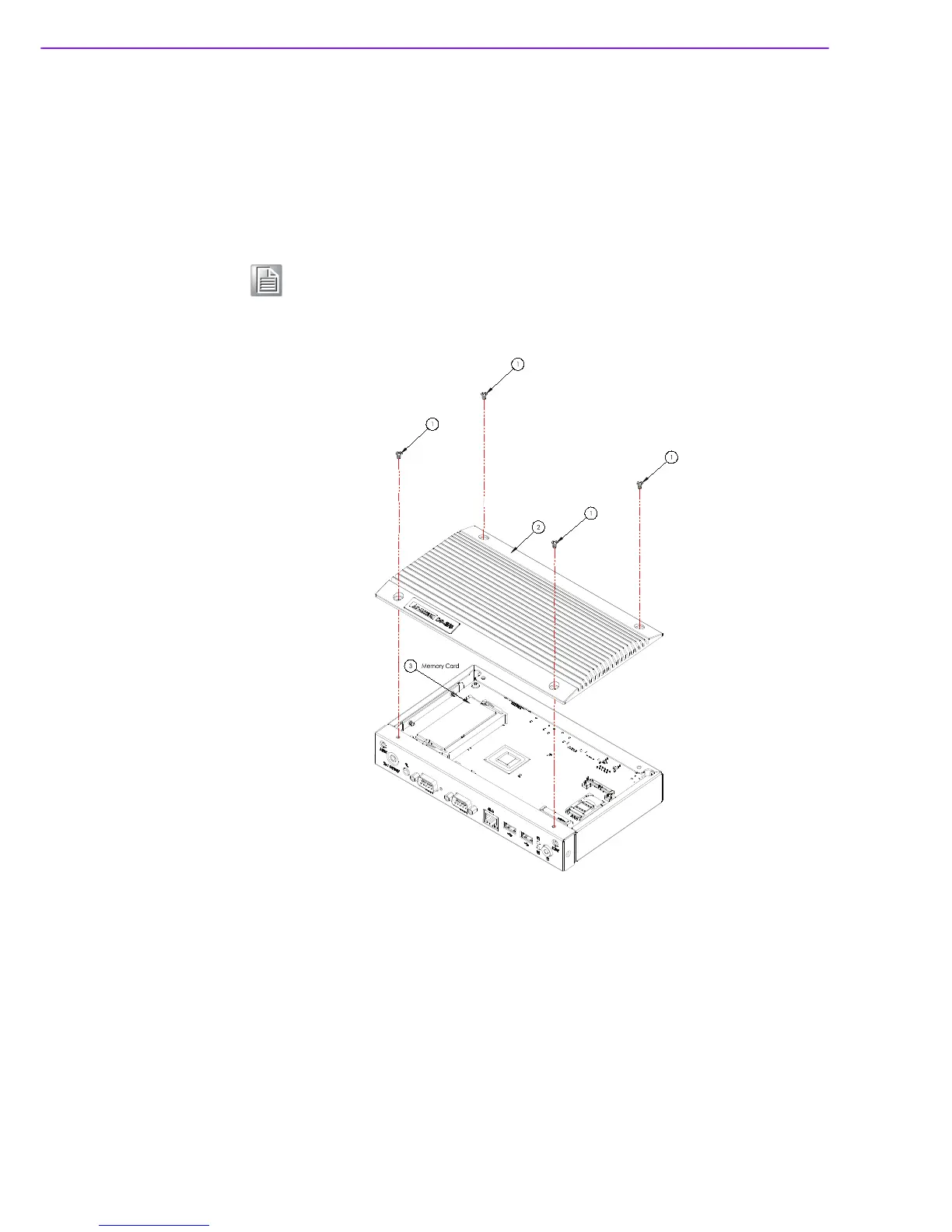

Figure 2.17 Mini PCIe and SIM card inst
allation
Note 1
The SIM socket only functions with the mini PCIe module
on the same
side, and does not work with the socket on
the bottom.
23
25
