Advantech DS-370 User Manual

DS-370 User Manual 10
2.3.3 HDMI Connector
DS-370 is equipped with HDMI connectors that provide an HDCP-compliant, all-digi-
tal audio/video interface for transmitting uncompressed audio/video signals. HDMI
technology supports a maximum resolution of 1920 x 1080p (full HD); however, the
actual resolution depends on the monitor used.

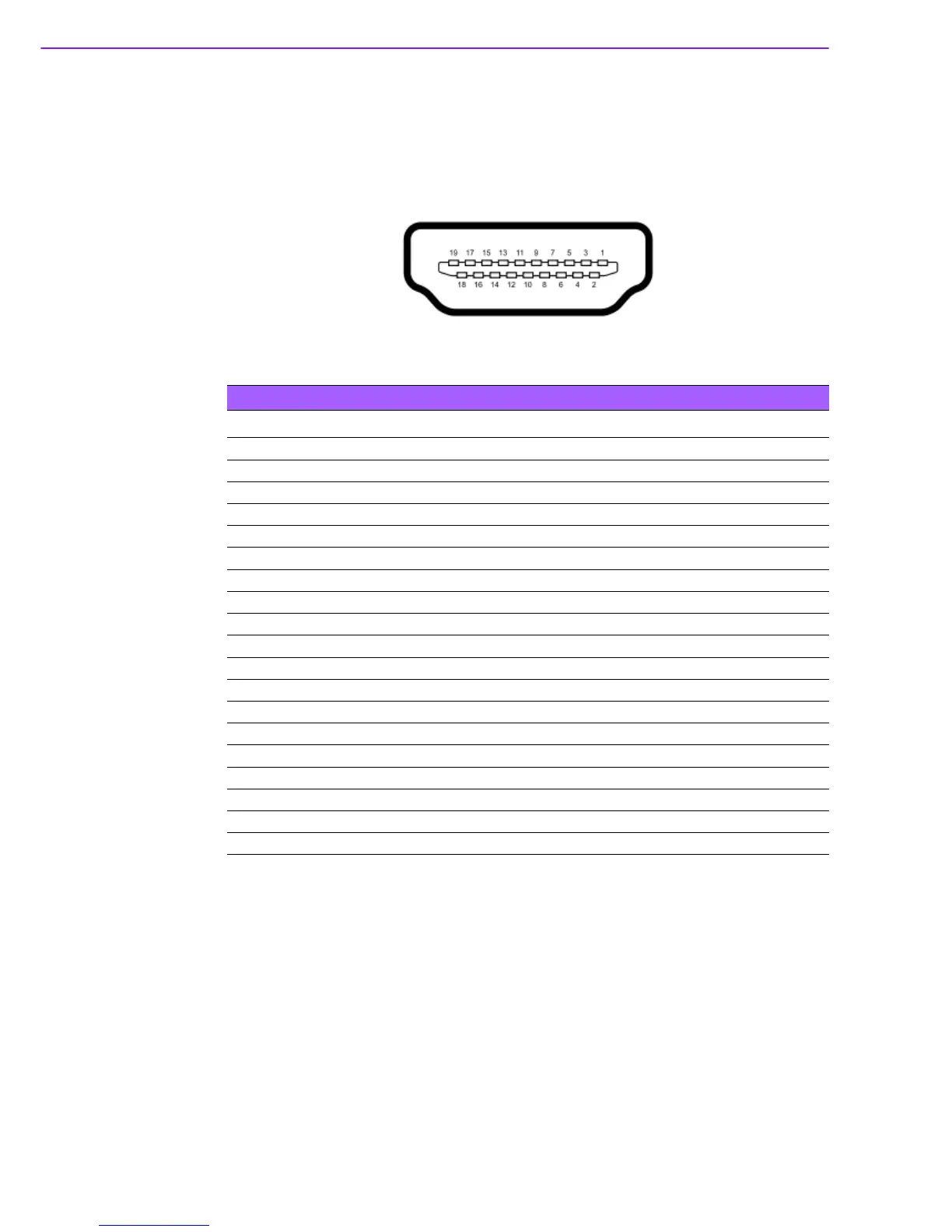

Figure 2.11 HDMI connector
Table 2.5: HDMI Connector Pin Assignments
Pin Signal Name
1TMDS Data2+
2GND
3TMDS Data2–
4TMDS Data1+
5GND
6TMDS Data1–
7TMDS Data0+
8GND
9TMDS Data0–
10 TMDS Clock+
11 GND
12 TMDS Clock–
13 NC
14 NC
15 SCL
16 SDA
17 GND
18 +5 V Power
19 Detect
