DS-370 User Manual
26

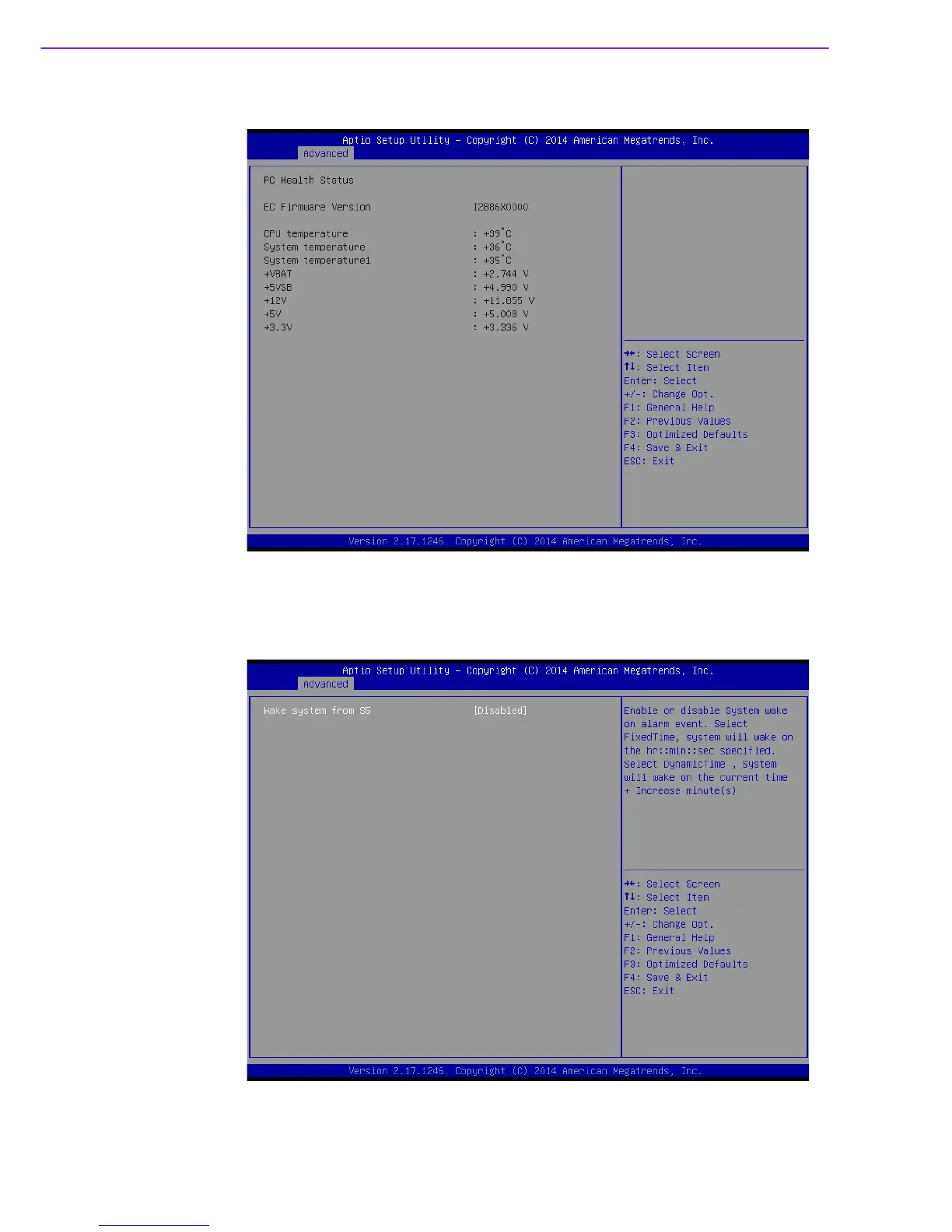

ITE8528E HW Monitor
Hardware st
atus (PC health) monitoring
Figure 3.6 Hardware monitoring screen
S5 RTC W
ake Settings
Enable the system to wa
ke from S5 using a real-time clock (RTC) alarm
Figure 3.7 S5 RTC wake setup screen
