29
DS-370 User Manual
Chapter 3
BIOS Settings
Miscellaneous Configuration
Enable/disable misc
ellaneous features
–
High Precision Timer
Enable/disable the high precision event timer
–
PCI Express Dynamic Clock Gating
Enable/disable PCIe
dynamic clock gating
–
OS Selection
The OS should be selected according t
o the available systems

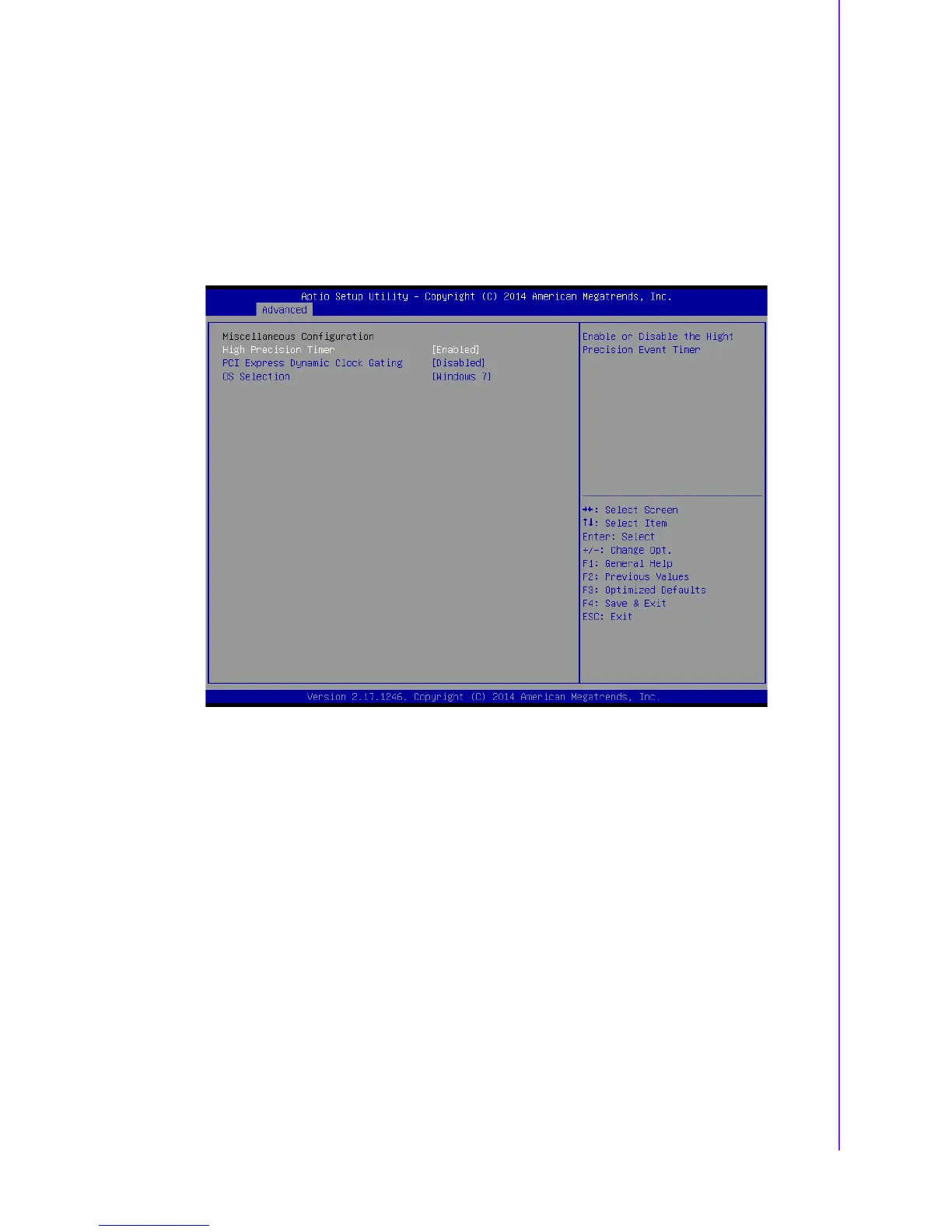

Figure 3.12 Miscellaneous configuration
setup screen
CSM Configuration
Enable/disable opti
on ROM execution
36
