33
DS-370 User Manual
Chapter 3
BIOS Settings

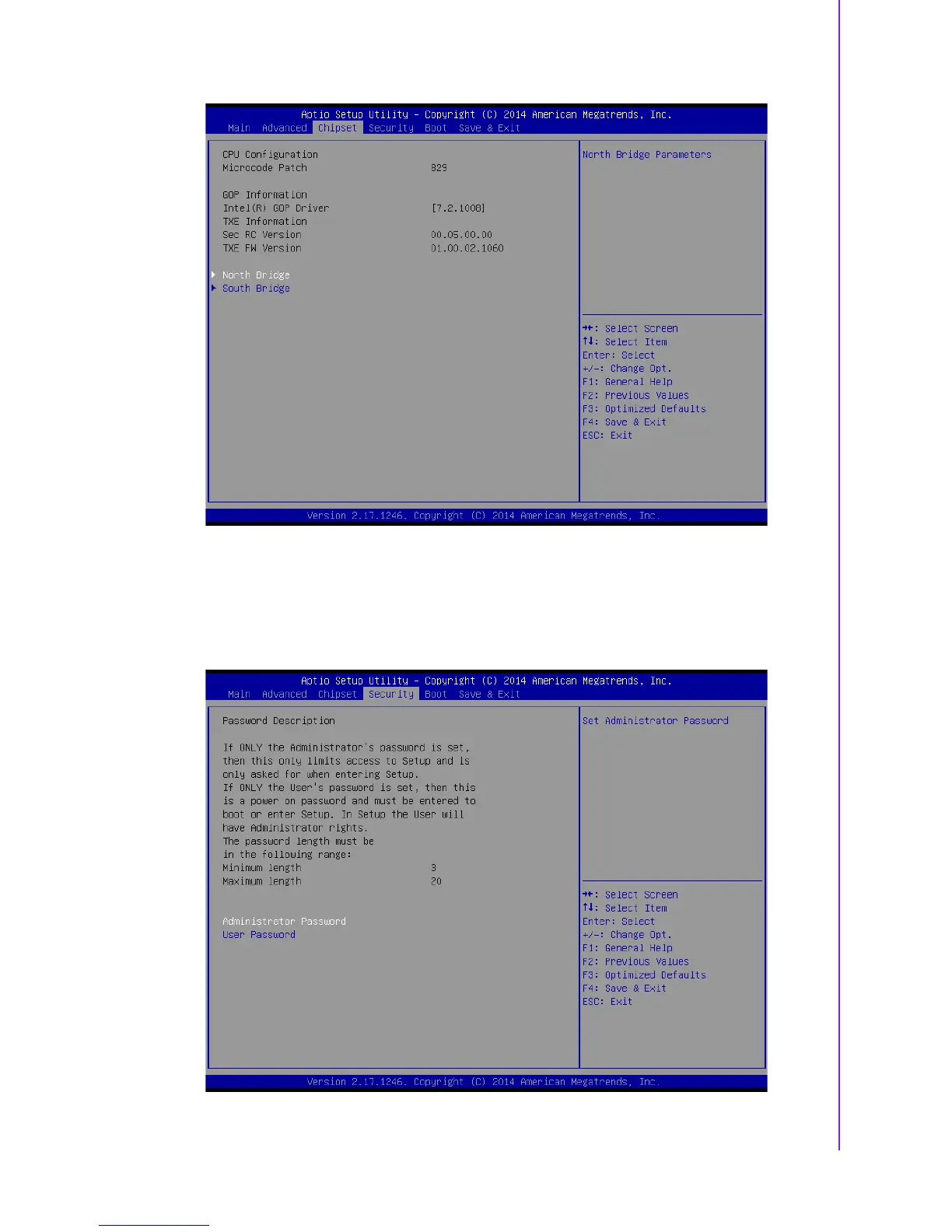

Figure 3.16 North Bridge
and South Bridge setup screen
3.2.4
BIOS Security Setup
Select the Security tab from the setup
screen to enter the BIOS Security setup
screen.
Figure 3.17 Security configura
tion setup screen
40
42
Table of Contents
Default Chapter
5
Optional Accessories
5
Packing List
5
Safety Instructions
6
Table of Contents
7
Chapter 1 General Introduction
9
Introduction
10
Product Features
10
General
10
Display
10
Power Consumption
10
Hardware Specifications
11
Mechanical Specifications
12
Power Requirements
12
Environmental Specifications
12
Chapter 2 Hardware Installation
13
DS-370 Front and Rear Views
14
DS-370 Front External I/O Connectors
14
Power ON/OFF Button
14
USB Connectors
14
Ethernet Connector (LAN)
15
Figure 2.4 USB Connector
15
COM Connector
16
Audio Connector
16
S/PDIF Connector
16
DS-370 Rear External I/O Connectors
17
Power Input Connector
17
VGA Connector
17
HDMI Connector
18
DP++ Connector
19
USB Connectors
20
Hardware Installation
21
Memory Installation
21
Figure 2.15Memory Slot Definition
22
HDD Installation
23
Mini Pcle and SIM Card Installation
24
Figure 2.18Mini Pcie/Sim Card Installation
25
Wireless LAN Card Antenna Installation
26
Mount Bracket Installation
27
Figure 2.21Antenna Module Installation - Rear
27
Rubber Foot Installation
28
Chapter 3 BIOS Settings
29
BIOS Introduction
30
Enter Setup
30
Main Setup
30
Advanced BIOS Setup
31
Figure 3.3 ACPI Setup Screen
32
Figure 3.4 ISCT Setup Screen
33
Figure 3.6 Hardware Monitoring Screen
34
Figure 3.8 Serial Port Console Redirection Setup Screen
35
Figure 3.10CPU C-State Report Setup Screen
36
Figure 3.12Miscellaneous Configuration Setup Screen
37
Figure 3.13Hardware Monitor Setup Screen
38
Figure 3.14USB Configuration Setup Screen
39
BIOS Chipset Setup
40
BIOS Security Setup
41
Figure 3.16North Bridge and South Bridge Setup Screen
41
BIOS Boot Setup
42
BIOS Save & Exit Setup
43
Chapter 4 Troubleshooting
45
No Sound from SPDIF Device
46
TXE Driver Installation
48
Using Susiaccess Backup/Recovery
49
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Advantech DS-370 and is the answer not in the manual?
