Chapter 3 Initial Setup
3.3 Open and Close Bottom Cover

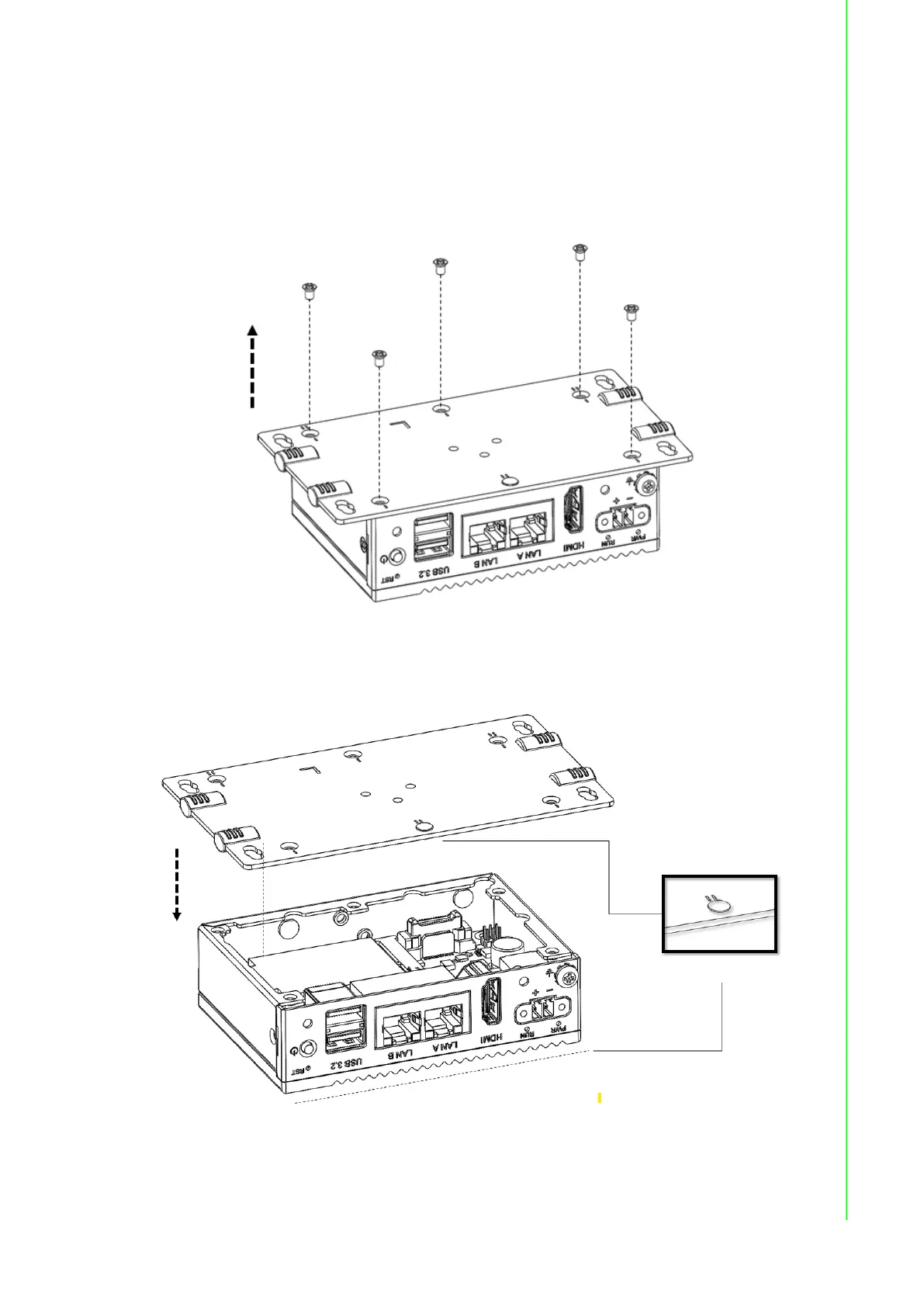

The steps for opening and closing the bottom cover of UNO-2271G V2 are demon-
strated below.
1. To open the bottom cover: Remove the 5 screws from the back cove and lift it
off.
2. To close the bottom cover: Put the bottom cover onto the UNO-2271G V2 chas-
sis.
