Advantech UNO-2271G V2 User Manual

39 UNO-2271G_V2 User Manual
Appendix A System Settings/Pin Assignments

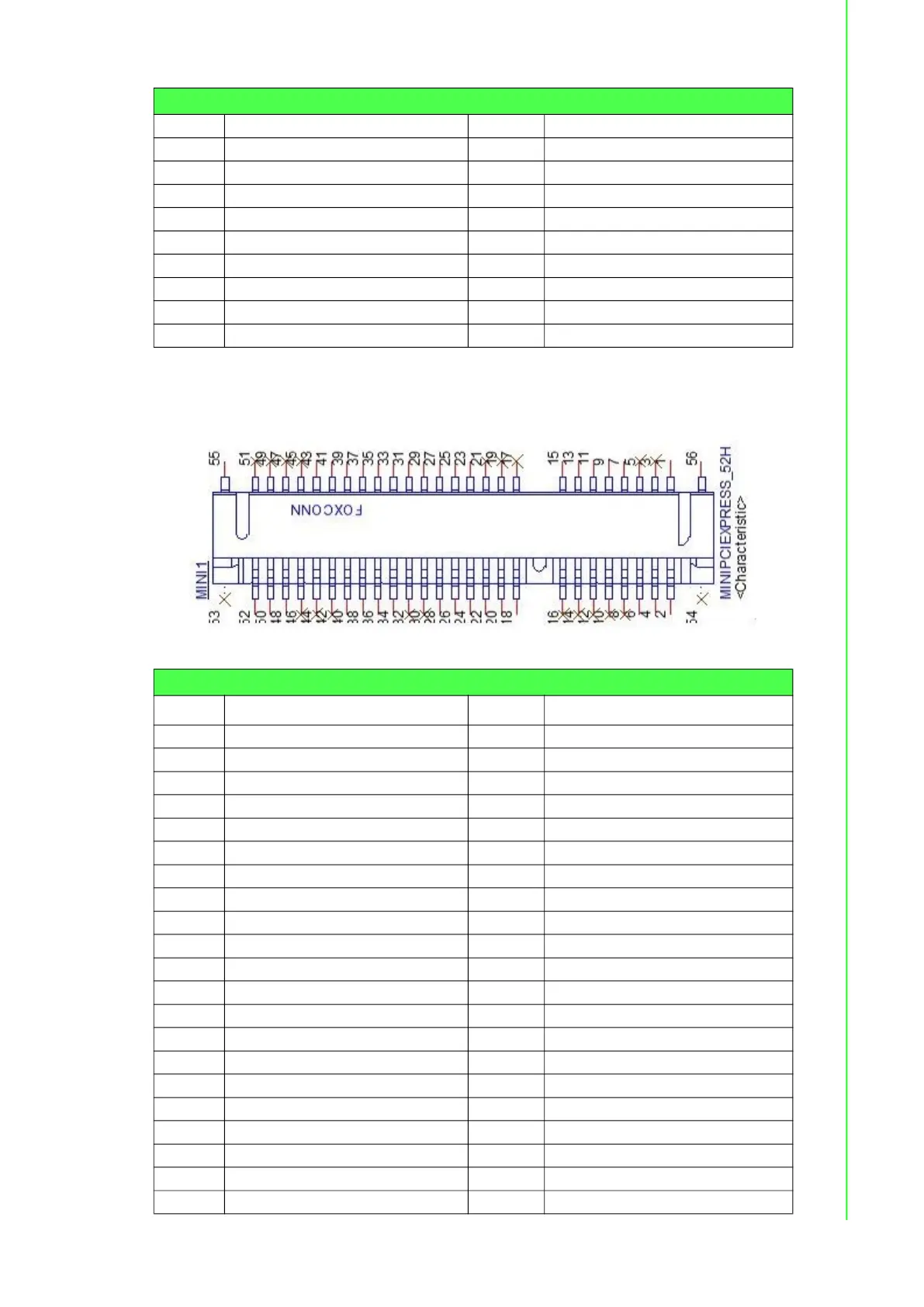

A.7 mPCIe Connector (MINI1)
57 GND 58 M2E_I2C_DATA
59 NC 60 M2E_I2C_CLK
61 NC 62 M2E_ALERT#
63 GND 64 NC
65 NC 66 M2E_PERST1#
67 NC 68 M2E_CLKREQ1#
69 GND 70 M2E_PEWAKE1#
71 NC 72 +V3.3SB_M2E
73 NC 74 +V3.3SB_M2E
75 GND
Table A.6: M.2 E key Connector Pin Assignments
Table A.7: mPCIe Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 PCIE_WAKE# 2 +V3.3_MINI
3 NC 4 GND
5 NC 6 +V1.5
7 PCIEX1_CLKREQ0# 8 NC
9 GND 10 NC
11 CLK100M_PCIEX1_D0- 12 NC
13 CLK100M_PCIEX1_D0+ 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 WIFI_DISABLE#
21 NC 22 MINI_PLTRST#
23 SATA0_RX+ 24 +V3.3_MINI
25 SATA0_RX- 26 GND
27 GND 28 +V1.5
29 GND 30 NC
31 SATA0_TX- 32 NC
33 SATA0_TX+ 34 GND
35 GND 36 USB2_MPCI_P8-
37 GND 38 USB2_MPCI_P8+
39 +V3.3_MINI 40 GND
41 +V3.3_MINI 42 NC
