35 UNO-2271G_V2 User Manual

Appendix A System Settings/Pin Assignments

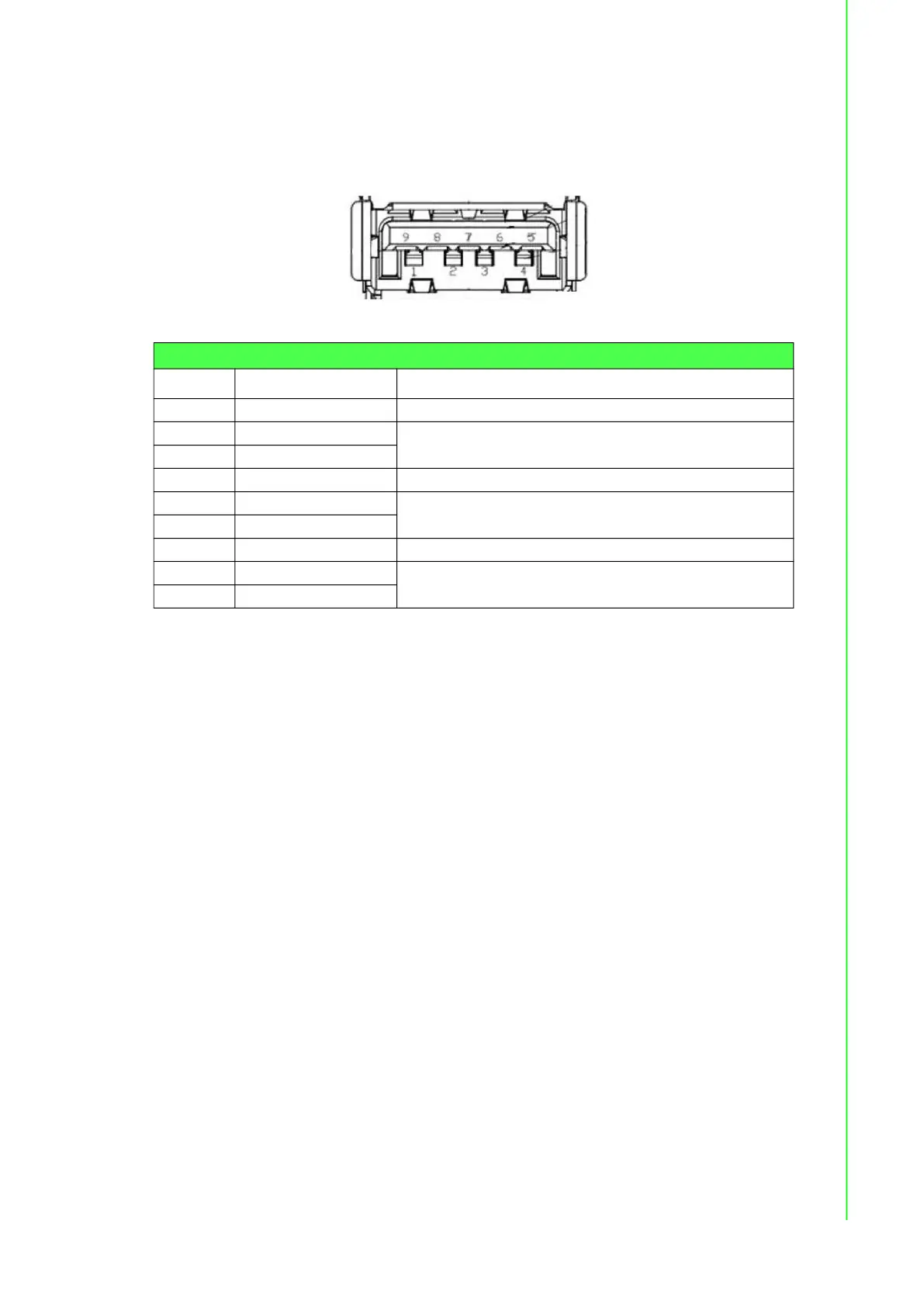

A.3 USB Connector (USB1)

A.3.1 USB 3.0 Connector

Table A.3: USB 3.0 Connector Pin Assignments

Pin Signal Name Description

1 VBUS Power

2 D-

USB 2.0 differential pair

3 D+

4 GND Ground for power return

5 StdA_SSRX-

SuperSpeed receiver differential pair

6 StdA_SSRX+

7 GND_DRIAN Ground for signal return

8 StdA_SSTX-

SuperSpeed transmitter differential pair

9 StdA_SSTX+
