27 UNO-2271G_V2 User Manual

Chapter 3 Initial Setup

3.5.2 Installing the M.2 B-Key Module on Extension Kit (UNO-

2271G-RP1EA/UNO-2271G-RS2EA)

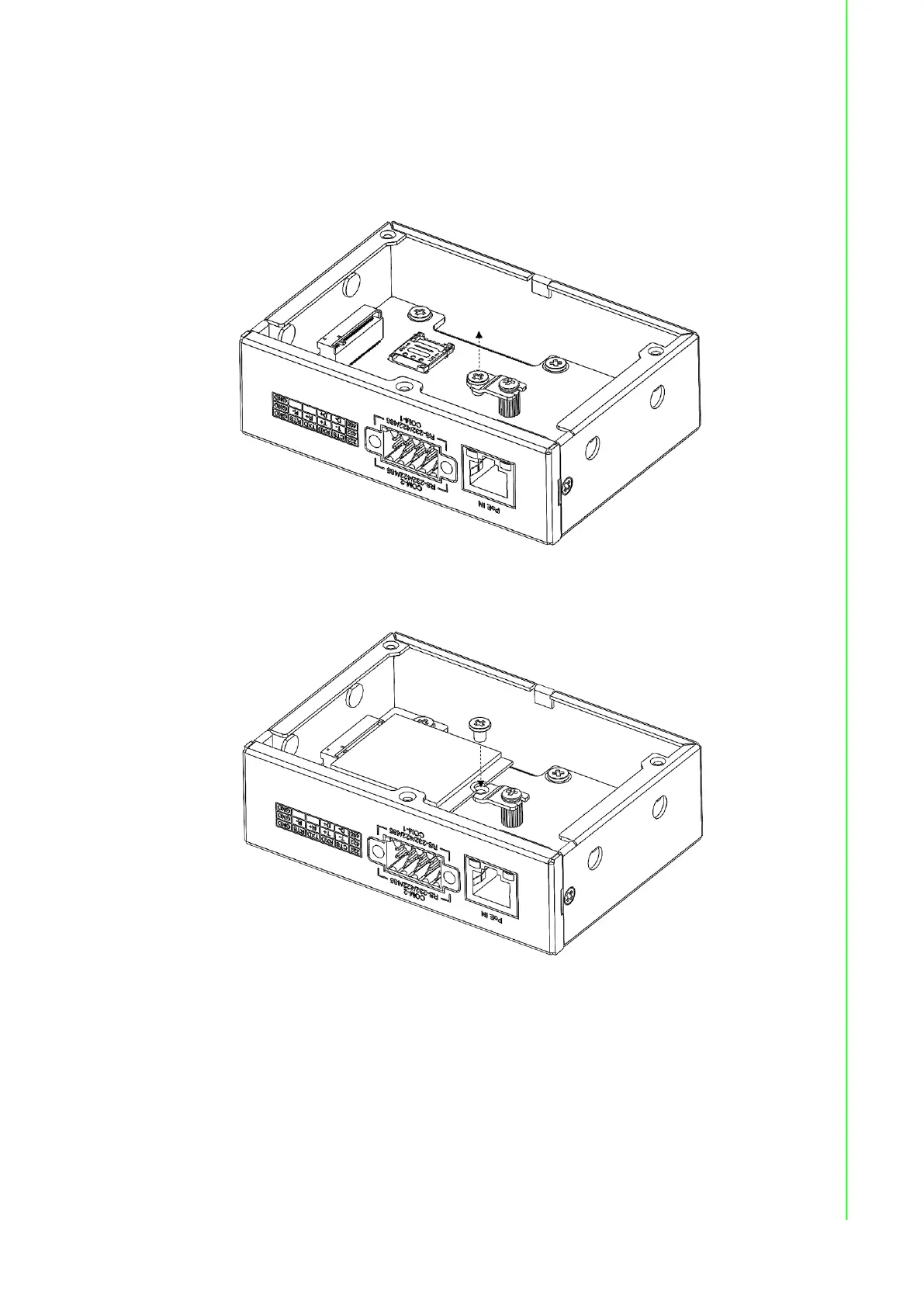

Installing M.2 3042 card

1. Remove the pre-installed screw.

2. Insert the M.2 3042 card at the location of “CN2” and lock the screw.
