UNO-2271G_V2 User Manual 28

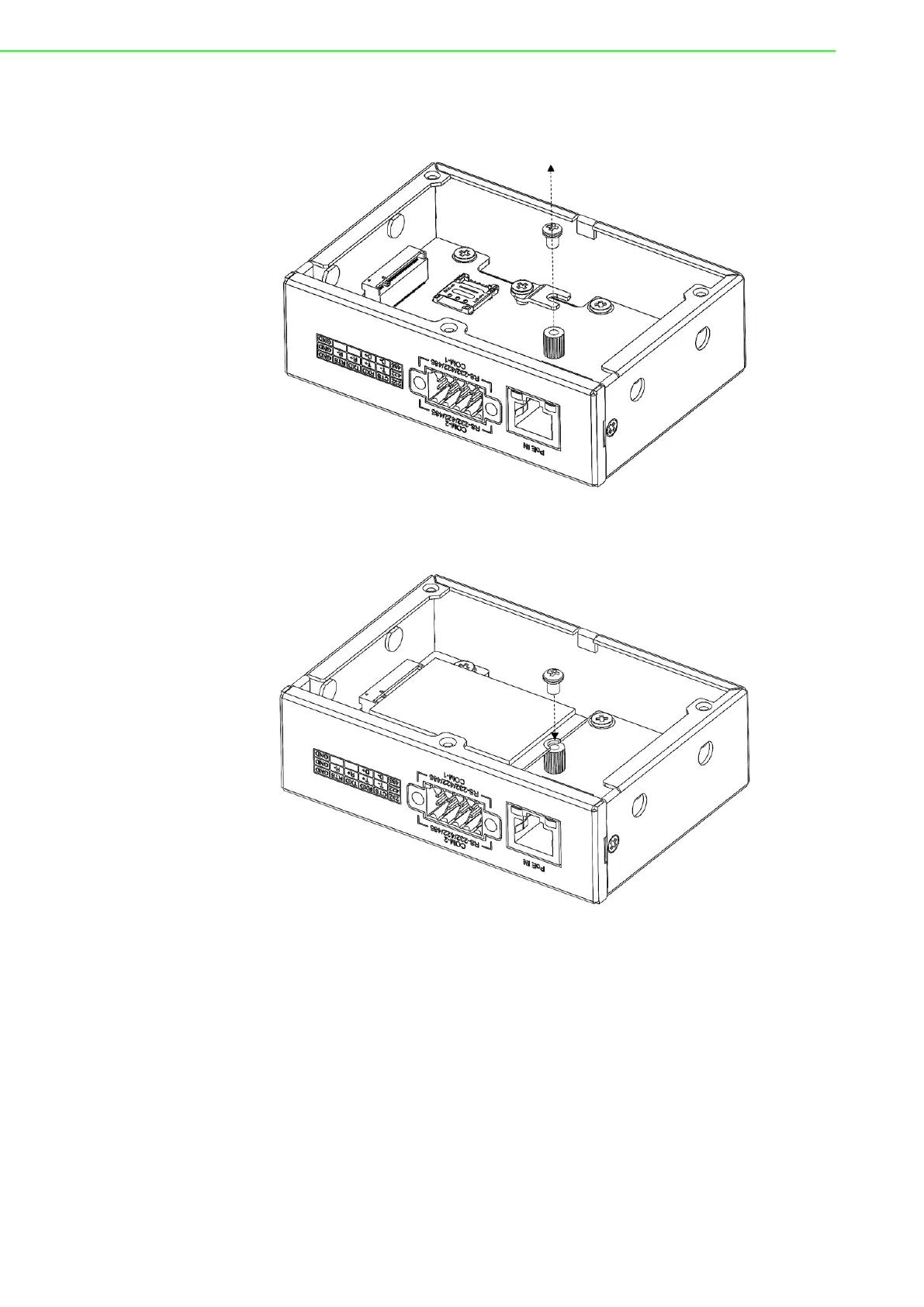

Installing M.2 3052 card
1. Remove the pre-installed screw.
2. Insert the M.2 3042 card at the location of “CN2” and lock the screw.
