29 UNO-2271G_V2 User Manual
Chapter 3 Initial Setup
3.5.3 Installing the M.2 E-key Module on Extension Kit (UNO-2271G-
RS2EA)
Installing M.2 2230 card

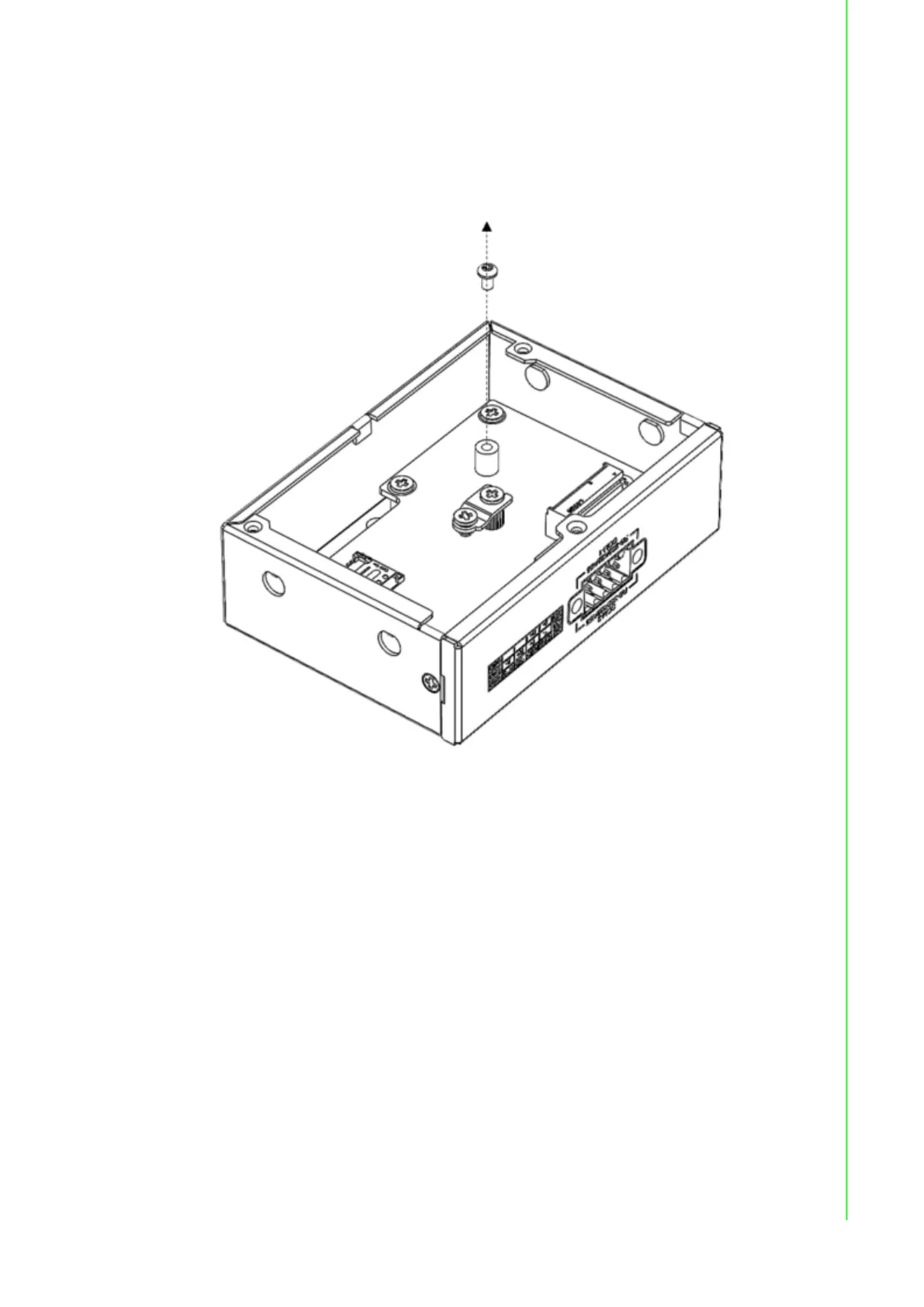

1. Remove the pre-installed screw.
