2.1.2.3 USB Connector
UNO-2271G V2 features 2 x USB ports for Rev. 3.2 specifications. The USB connec-
tors support plug-and-play and hot-swap-ping functionality for external devices. Addi-
tionally, this can be enabled/disabled in the BIOS menu. (Please refer to User
Manual- Appendix A.3 for pin assignments.)
2.1.2.4 HDMI Connector
The UNO-2271G V2 provides 1 x HDMI connector for a high resolution interface,
1920 x 1080 @60Hz. (Please refer to User Manual- Appendix A.4 for pin assign-
ments.)
2.1.3 Expansion Kit's Internal Connectors (Optional)

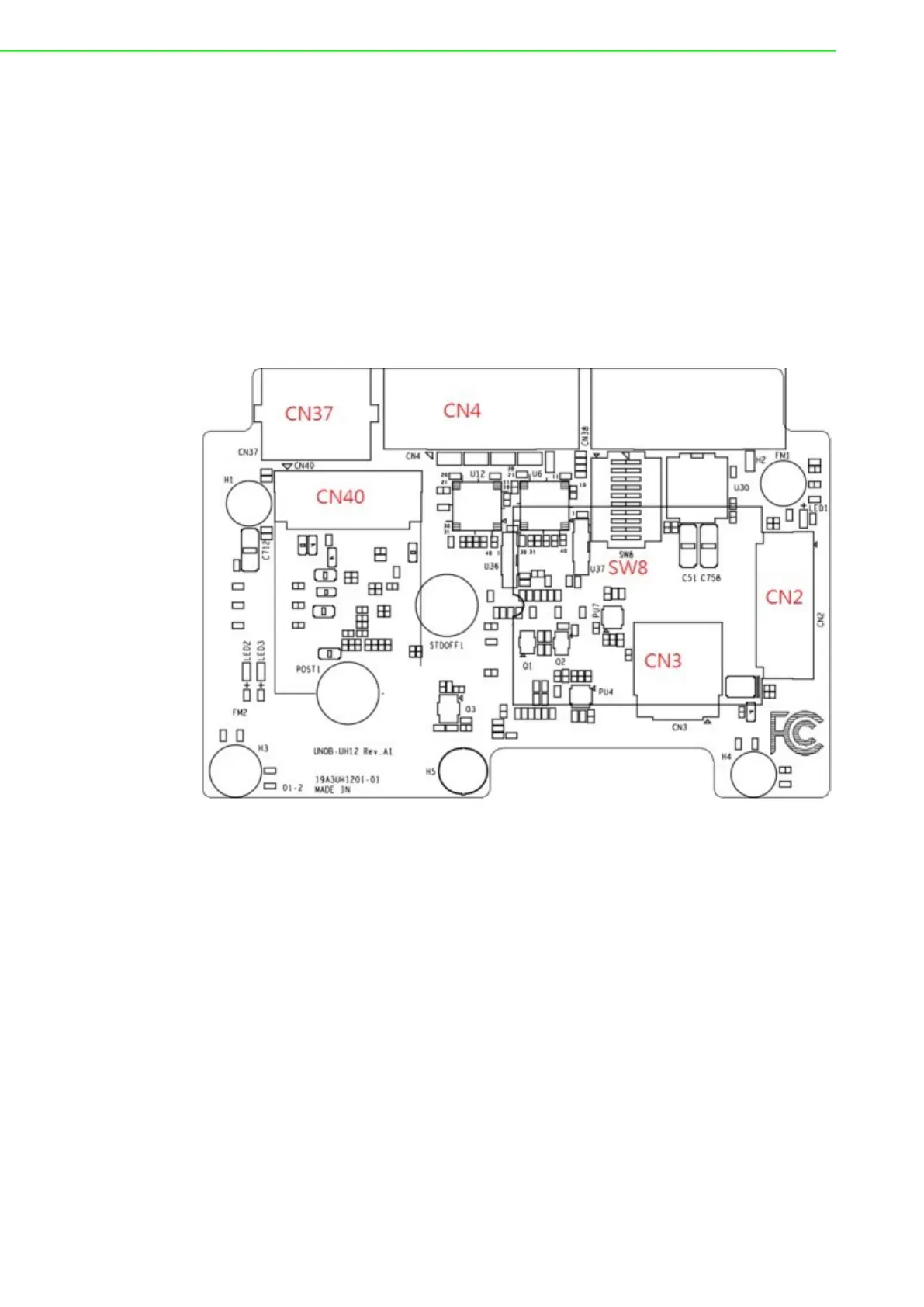

Figure 2.5 Locations Internal I/O Connectors/Switches for UNO-2271G-RS2EA
(Top Side) (Optional)
