11 UNO-2271G_V2 User Manual
Chapter 2 Hardware Functionality

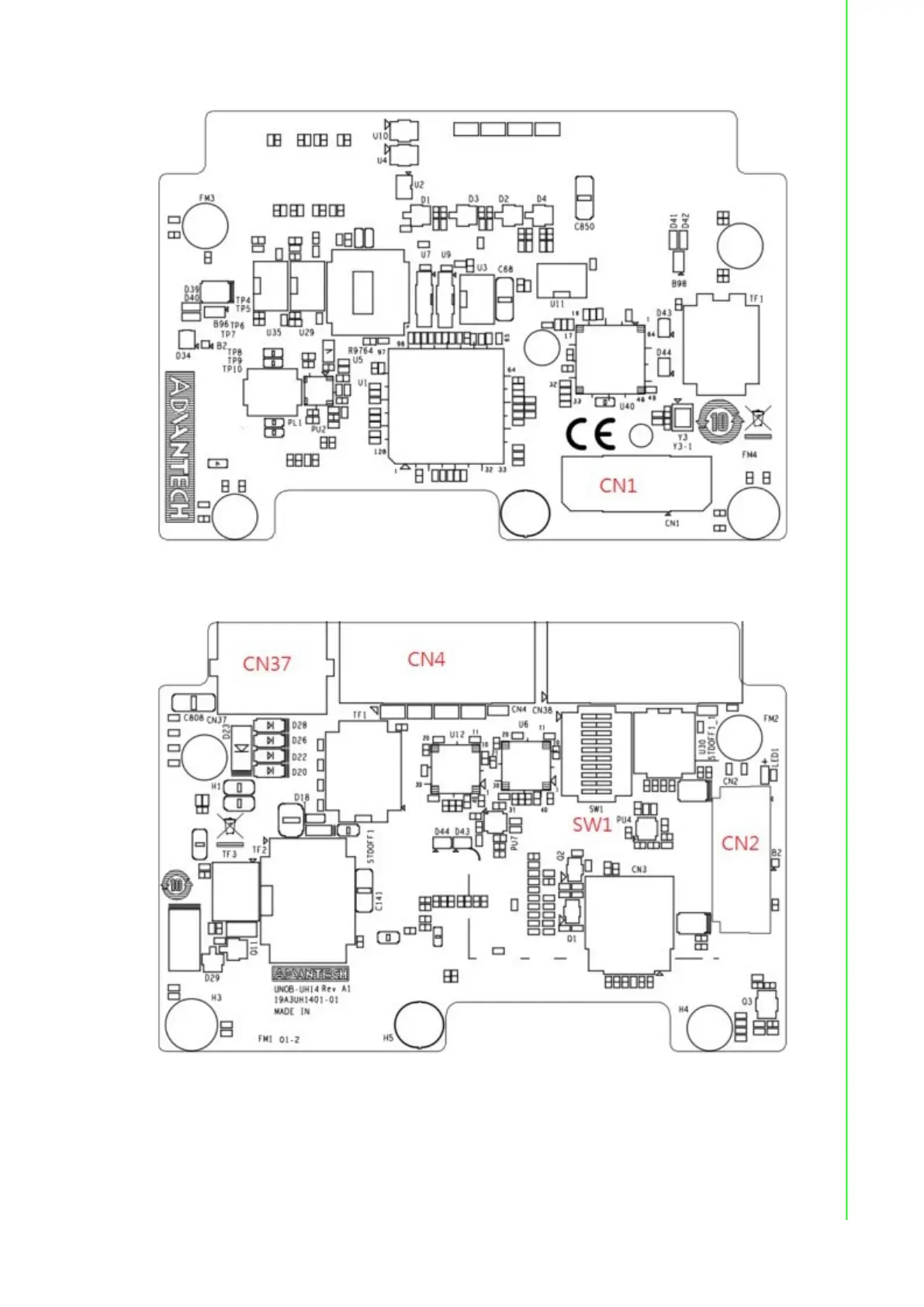

Figure 2.6 Locations Internal I/O Connectors/Switches for UNO-2271G-RS2EA
(Bottom Side) (Optional)
Figure 2.7 Locations Internal I/O Connectors/Switches for UNO-2271G-RP1EA
(Top Side) (Optional)
