UNO-2271G_V2 User Manual 36

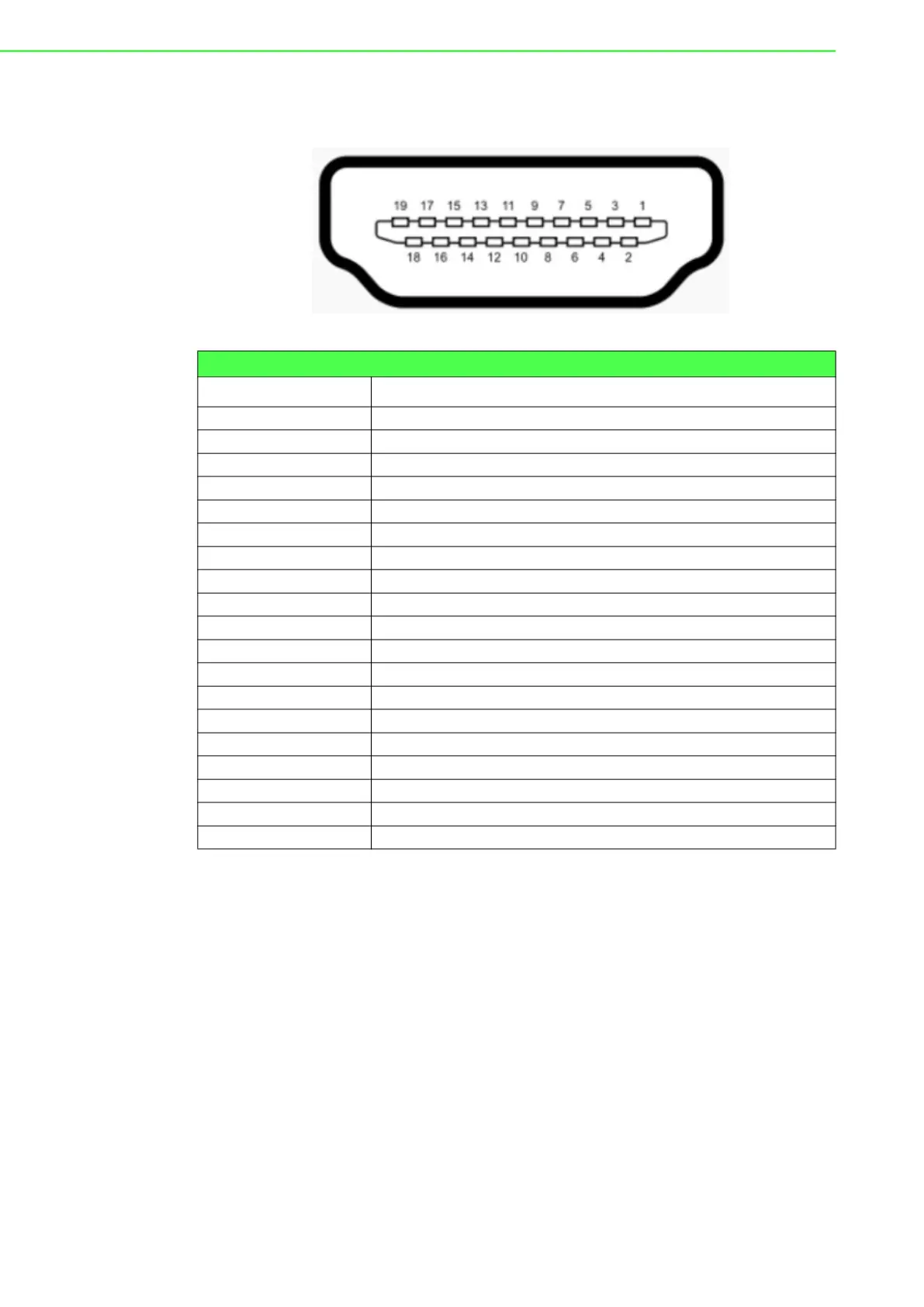

A.4 HDMI Connector (CN1)

Table A.4: Display Port Adapter Cable Pin Assignments

Pin Signal Name

1 TMDS1_a_P0

2 GND

3 TMDS1_a_N0

4 TMDS1_a_P1

5 GND

6 TMDS1_a_N1

7 TMDS1_a_P2

8 GND

9 TMDS1_a_N2

10 TMDS1_CLK_a_P

11 GND

12 TMDS1_CLK_a_N

13 NC

14 NC

15 TMDS1_DDCCLK

16 TMDS1_DDCDAT

17 GND

18 +V5

19 TMDS1_HPD
