Chapter 2 General Specification
2.4.2 Pin Assignment

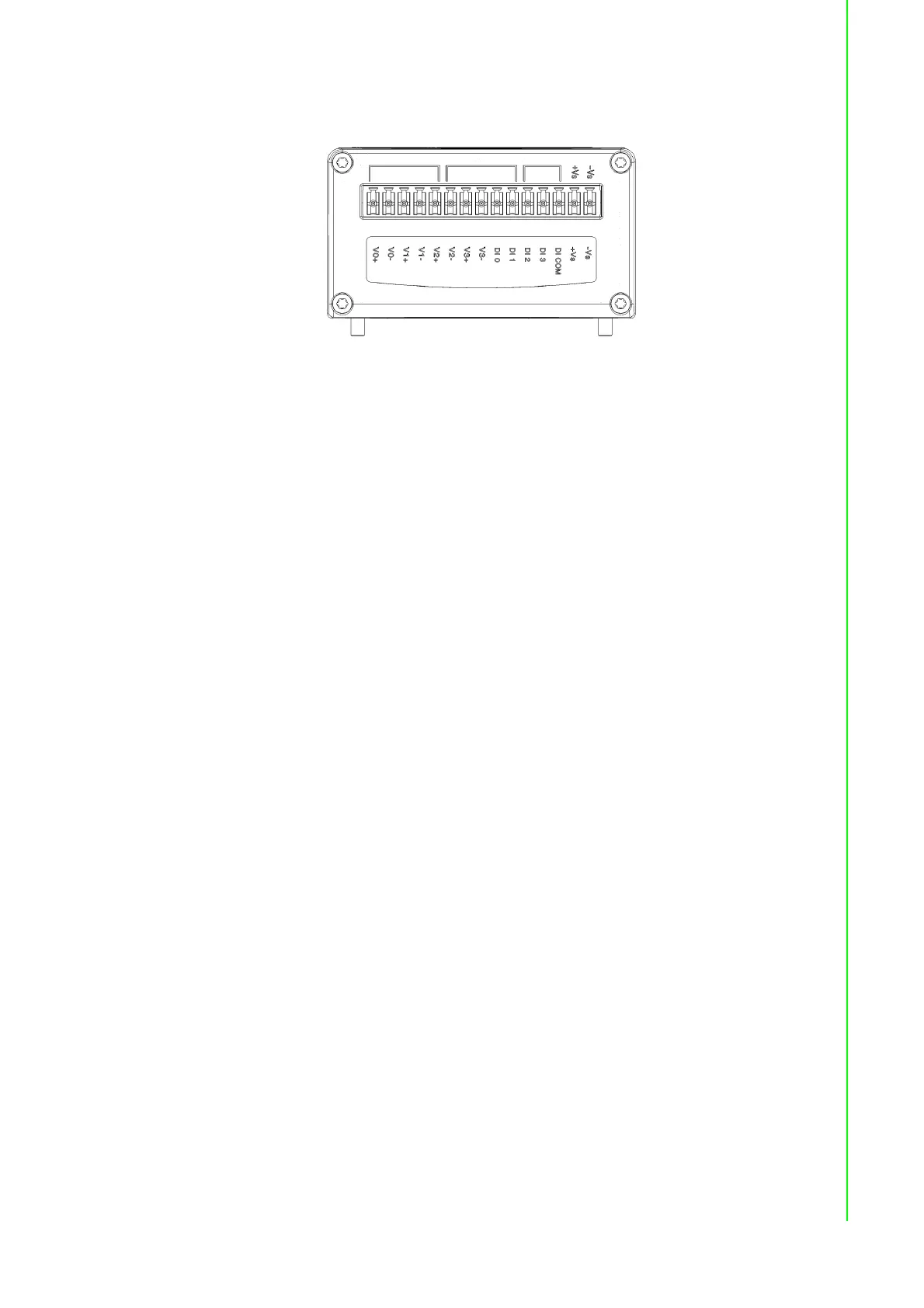

Figure 2.4 WISE-S214 Pin Assignment
2.5 WISE-S250 (6DI, 2DO& 1RS-485)
2.5.1 I/O Specifications
Digital Input
 Channels: 6 (Dry Contact)
 Supports 3kHz Frequency Input
Frequency mode
Counter mode
Digital Output (Sink Type)
 Channels: 2
 Output Current: 100 mA
– At 0 -> 1: 100 us
– At 1 -> 0: 100 us
(for Resistive Load)
 Supports Pules Output 5 kHz
 Max. Load Voltage: 50V
Serial Port
 Port Number: 1
 Type: RS-485
 Data Bits: 7, 8
 Stop Bits: 1, 2
 Parity: None, Odd, Even
 Baud Rate (bps): 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
 Protocol: Modbus/RTU (Total 32 addresses by 8 max. instructions)
