– ±10% for 60%~90% RH
 Update Rate: Minimum 1 second
 Response Time: 10 seconds (Achieving 63% of a step function)
 Long Term Drift: 0.5% RH/Year
2.3.2 Pin Assignment

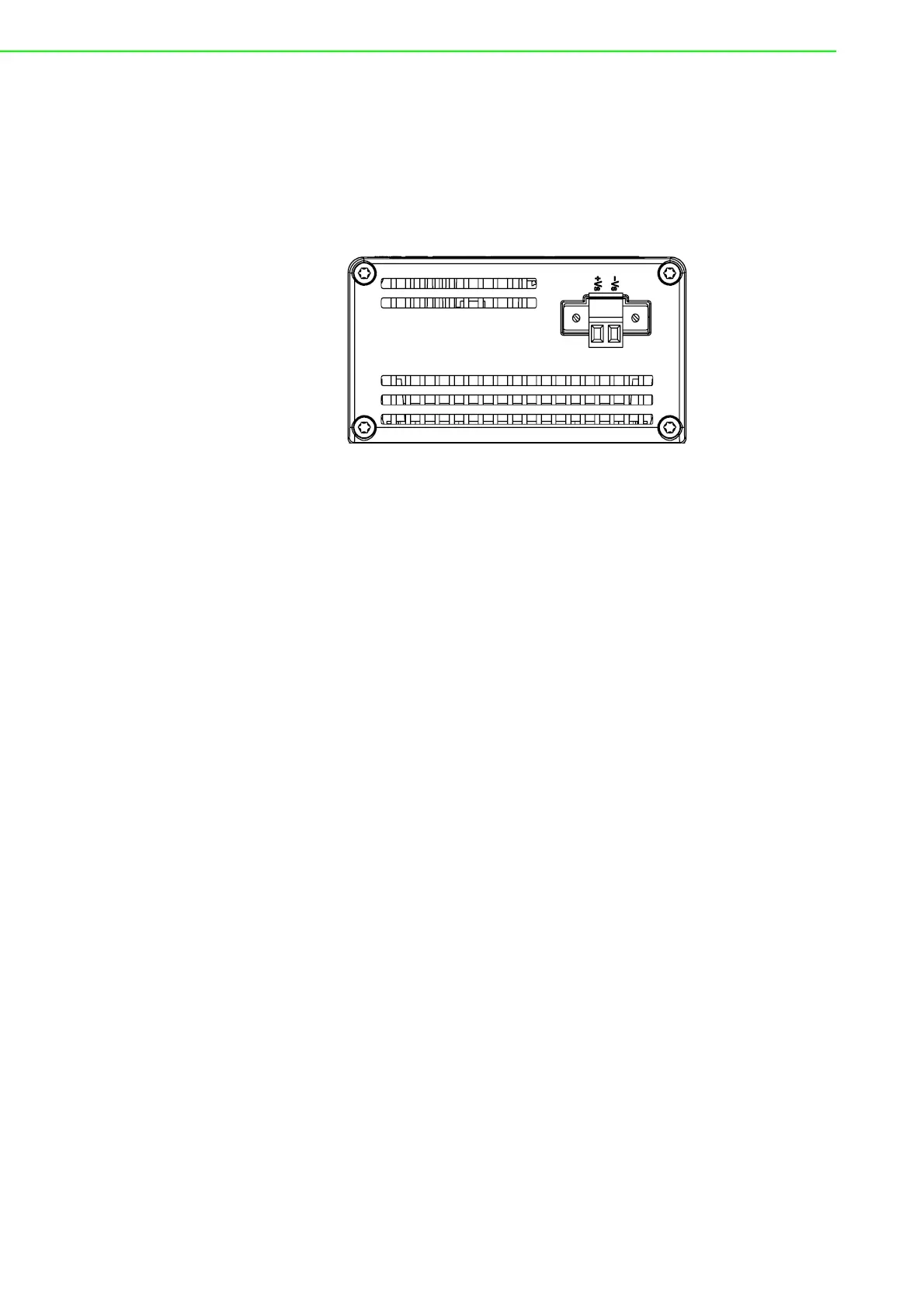

Figure 2.3 WISE-4210-S231 Pin Assignment
2.4 WISE-S214 (4AI/4DI)
2.4.1 I/O Specifications
Analog Input
 Channels: 4
 Resolution: 16bits Bipolar
15bits Unipolar
 Sampling Rate:
1Hz (per Channel) with 50/60Hz Rejection (Power Saving Mode)
10Hz (Total) with 50/60Hz Rejection (Normal Mode)
 Accuracy:
±0.1% for Voltage Input
±0.2% for Current Input
 Input Range: 0~150mV, 0~500mV, 0~1V, 0~5V, 0~10V, ±150mV, ±500mV, ±1V,
±5V, ±10V, 0~20mA, ±20mA, 4-20mA
 Input Impedance: >1MΩ (Voltage)
 Isolated voltage: 3kVrms
 Digital Input
– Channels: 4
 Support Data Scaling and Averaging Digital Input
Channels 4 (Dry Contact)
 Supports 32-bit counter input function (maximum signal frequency 200Hz)
 Supports keep/discard counter value on power-off
 Support inverted digital input status
