Chapter 3 Hardware Installations
Figure 3.10 Pole Mounting (back)
3.4 Wiring and Connections
This section provides basic information on wiring the power supply and I/O units.
3.4.1 Power Supply Wiring
WISE-4210 modules are designed to support a standard industrial unregulated 24-
V
DC
power supply. For other applications, they can also accept +10 to +50 V
DC
input
with 200 mV of peak-to-peak power ripple. The immediate ripple voltage should be
maintained between +10 and +50 V
DC
. The screw terminals labeled "+Vs" and "-Vs"
are for the power supply wiring.

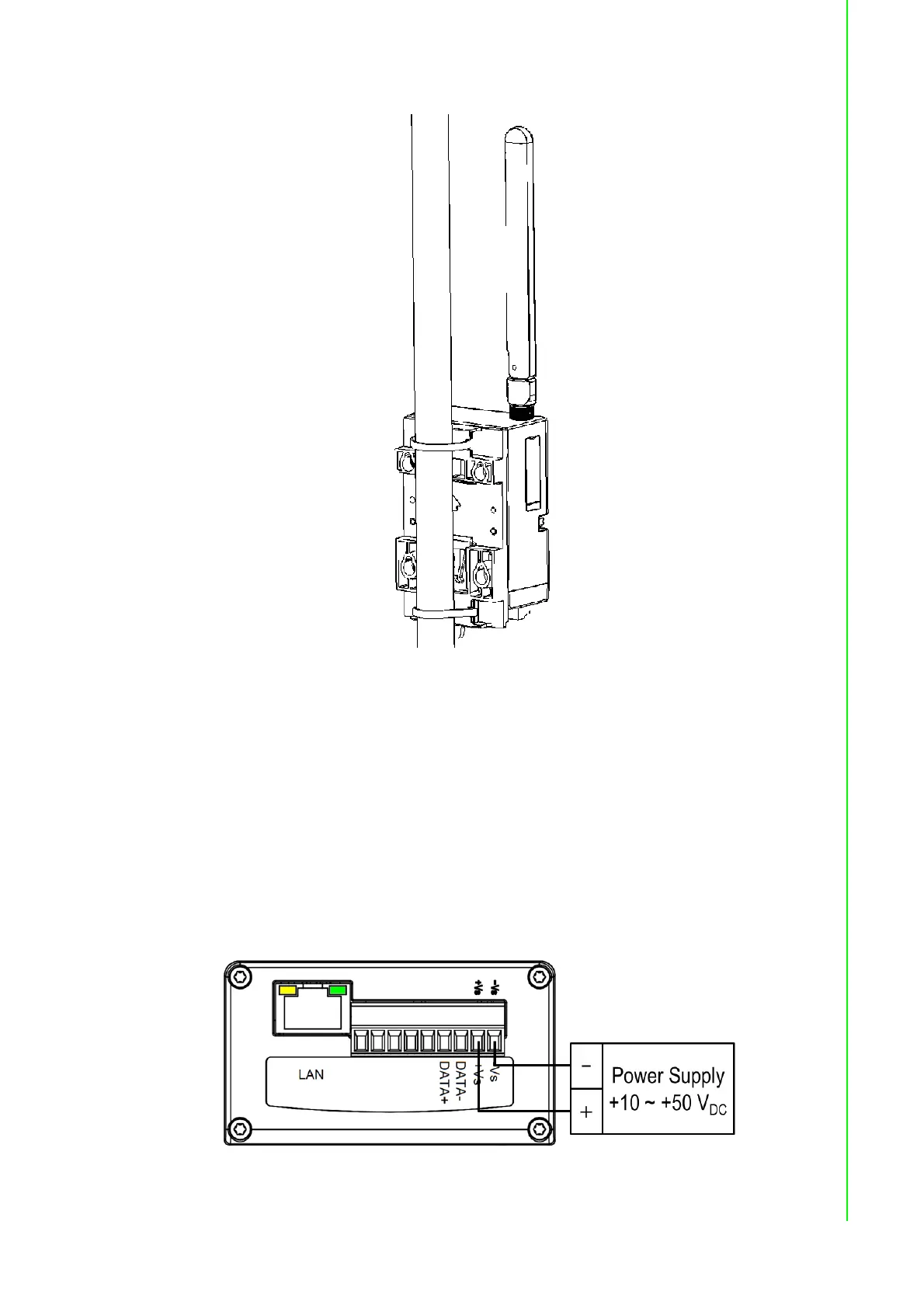

Figure 3.11 WISE-4210-AP Power Wiring
