WISE-4210 Series User Manual 34
3.3.3 Pole Mounting
Put the pole mounting ring through the middle hole. Note that you should unlock the
pole mounting ring with a screw driver before mounting. Mount the WISE-4200 module
steadily onto the pole by locking the pole mounting ring tightly.

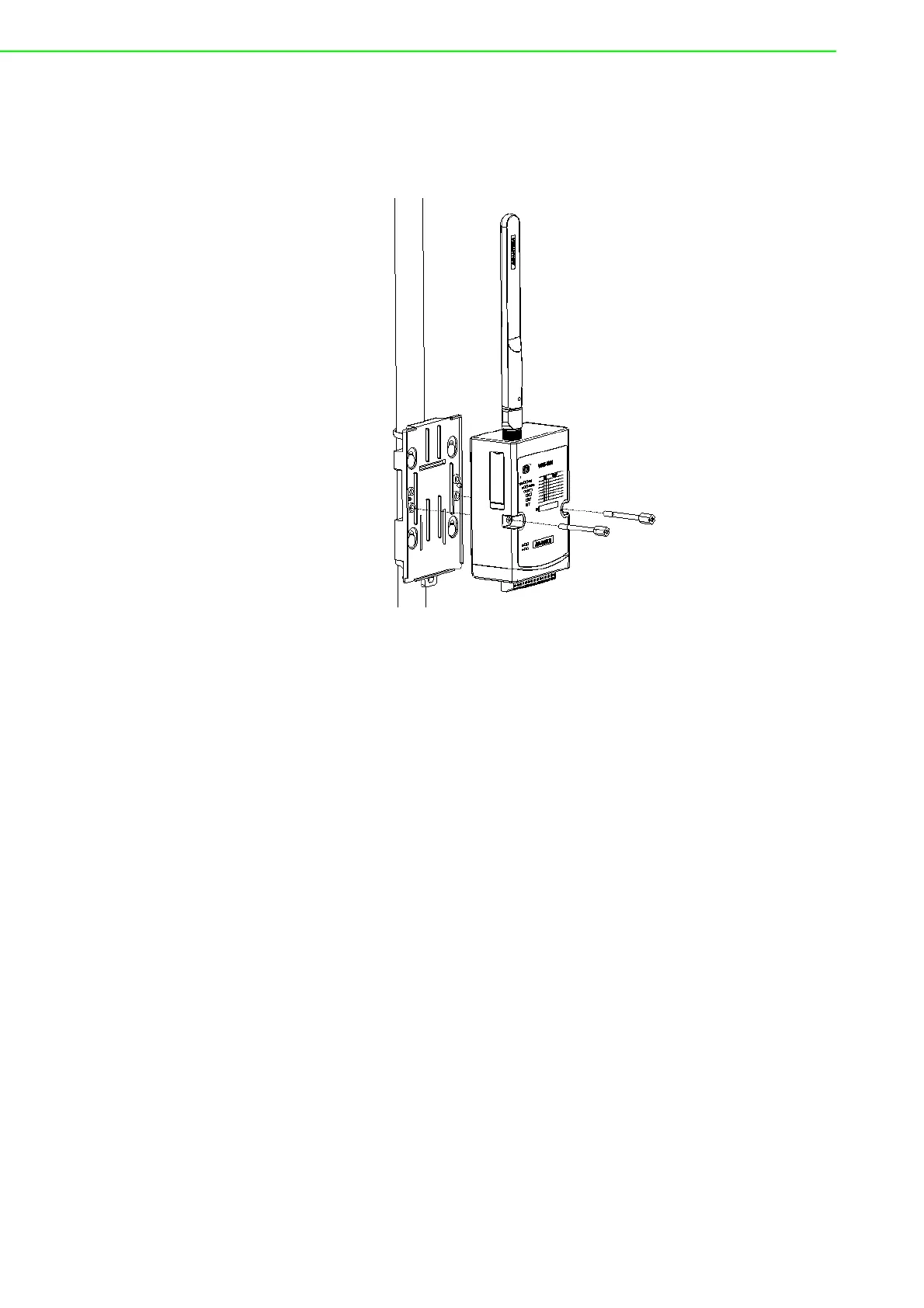

Figure 3.9 Pole Mounting (front)
