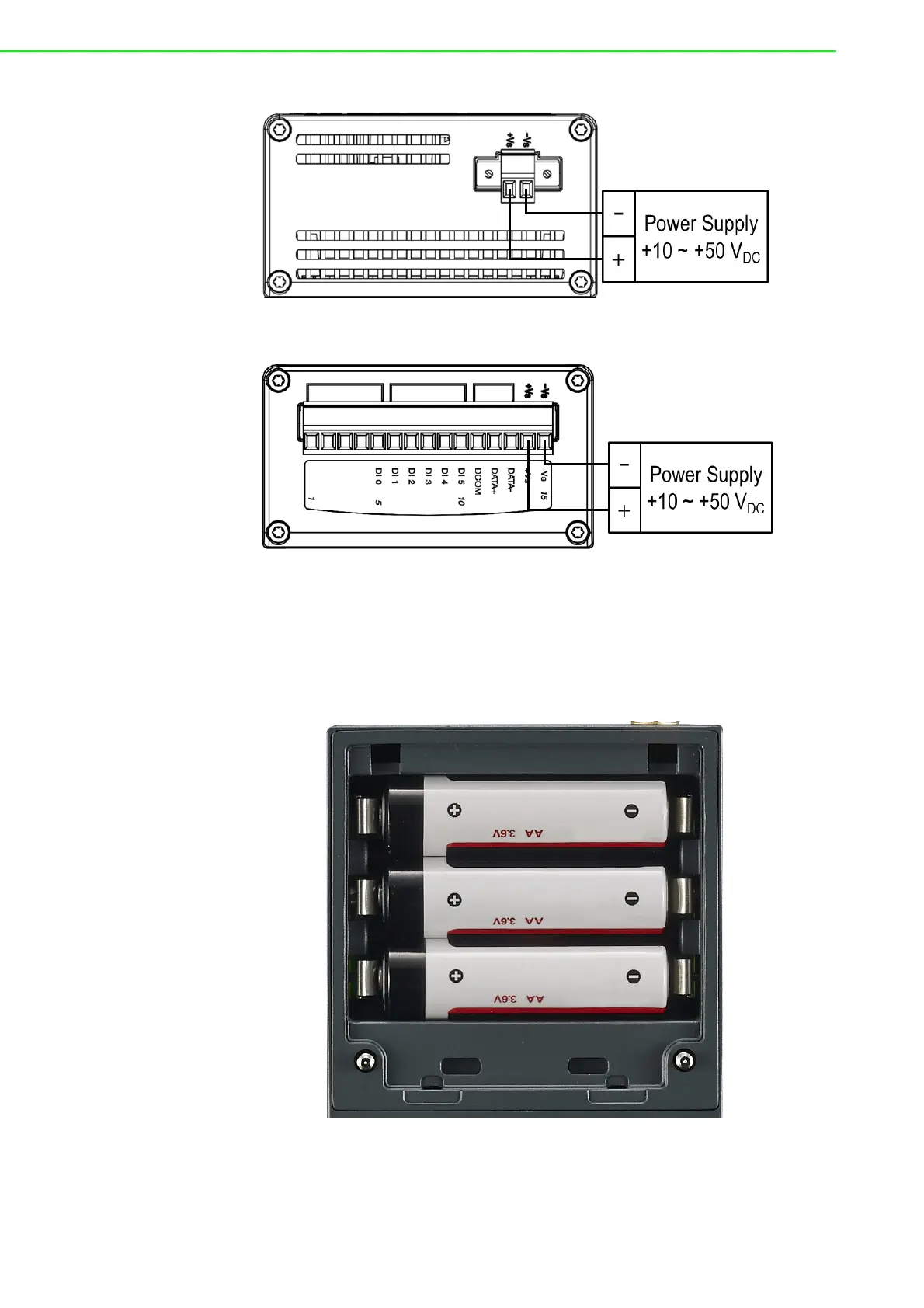

Figure 3.12 WISE-4210-S231 Power Wiring
Figure 3.13 WISE-S200 Power Wiring
3.4.2 Battery Installation
Open the battery cover on the back of module. There are 3 battery sockets for 3.6
VDC AA batteries. Since the batteries are parallel connection, batteries are installed
in same direction, positive pole (+) on left and negative pole (-) on right.
Figure 3.14 WISE-4210 Battery Socket
