3.3 Mounting
Like all WISE-4000 series modules, the WISE-4210 series of wireless sensor nodes
are designed as compact units. Applicable installation methods are briefly described
in the following sections.

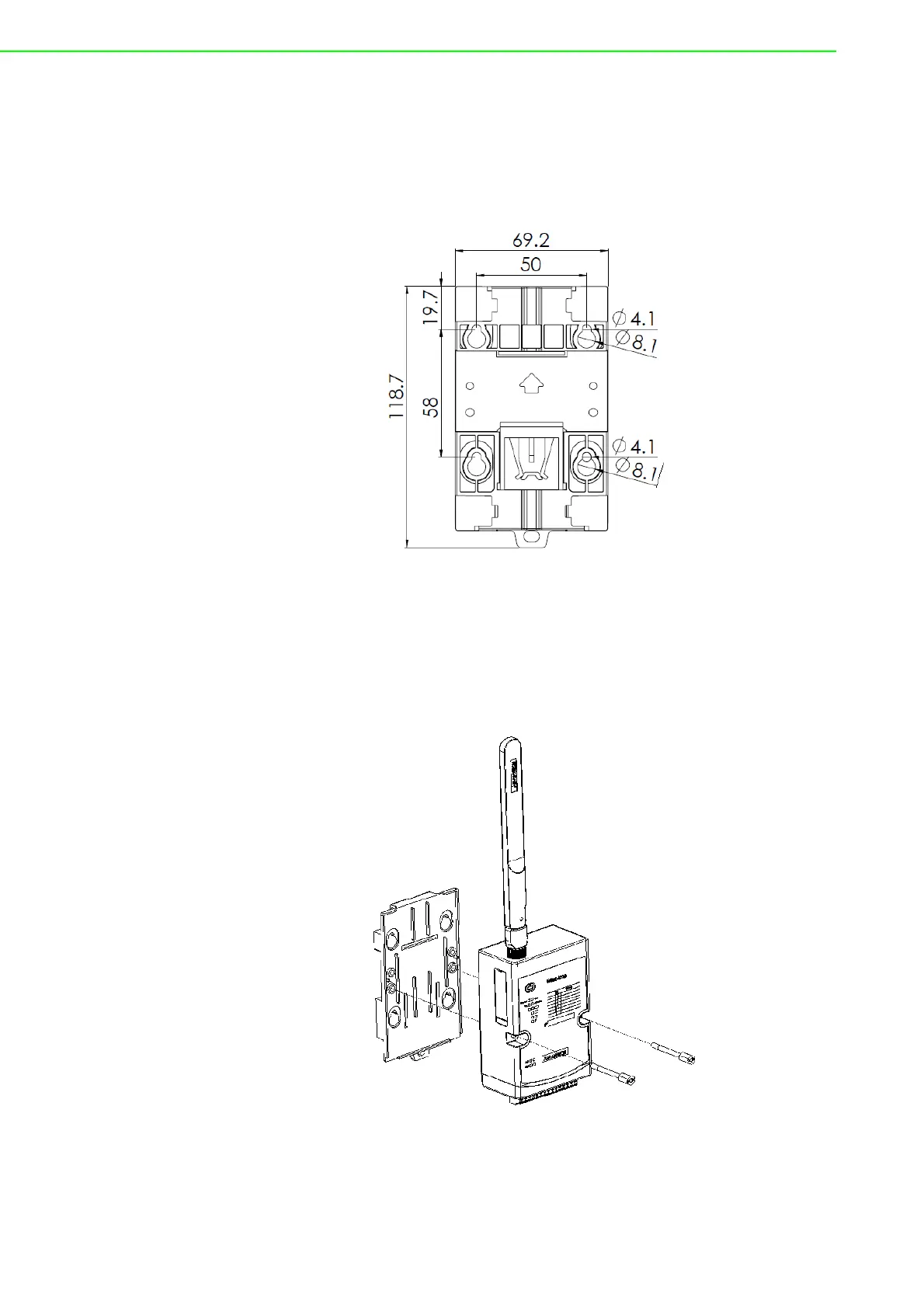

Figure 3.3 WISE-4000 Series Mounting Kit Dimensions
3.3.1 DIN-Rail Mounting
WISE-4210 modules can be fixed to a cabinet with mounting rails. Use a flathead
screwdriver to fasten the DIN rail adapter to your module. You can then use the end
brackets included in the package in order to keep it from sliding.
Figure 3.4 DIN-rail Mounting Installation
