Advantech WISE-4210 Series User Manual

WISE-4210 Series User Manual 20
2.5.2 Pin Assignment

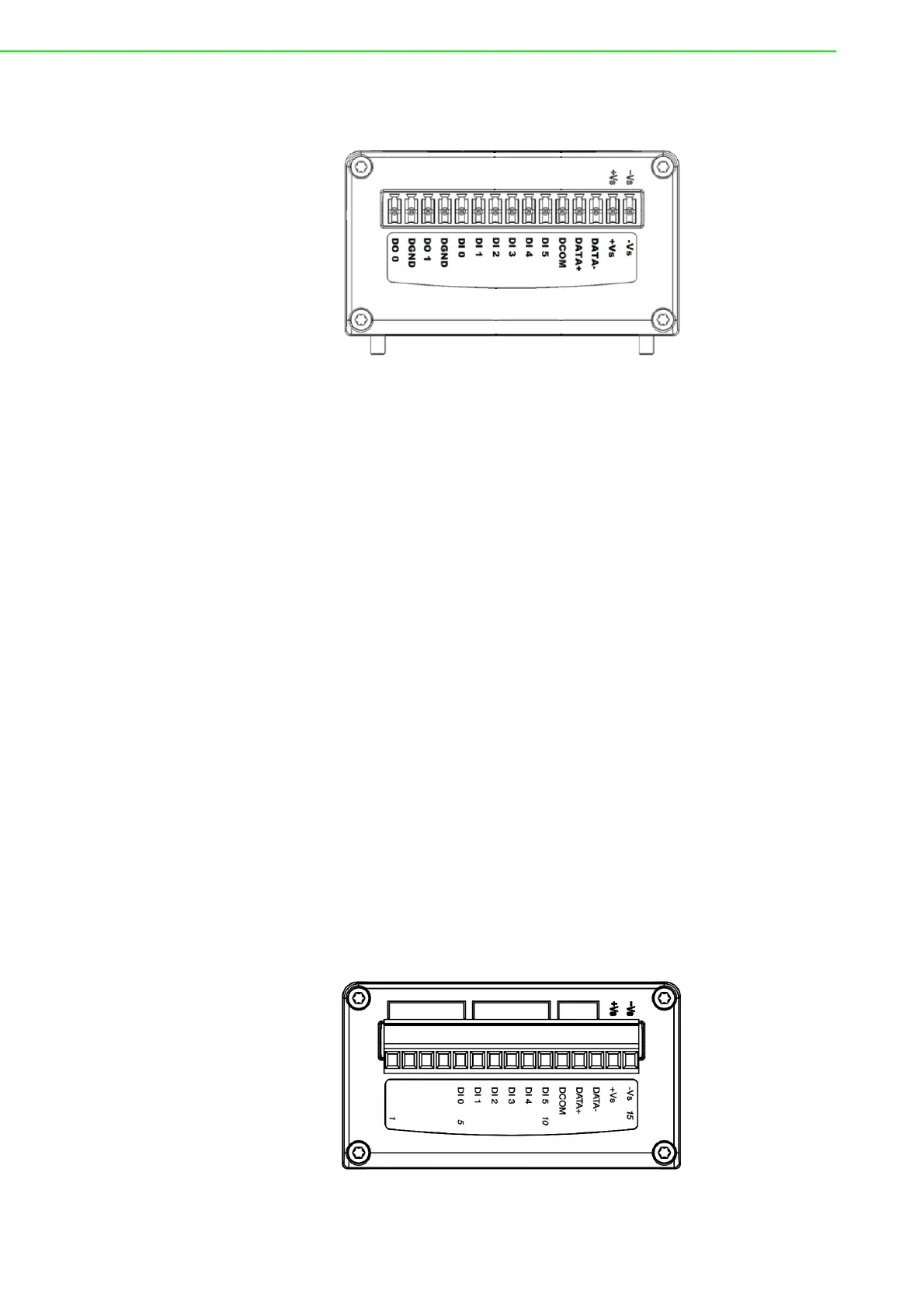

Figure 2.5 WISE-S250 Pin Assignment
2.6 WISE-S251 (6DI/1RS-485)
2.6.1 I/O Specifications
2.6.1.1 Digital Input
 Channels: 6
 Logic level (dry contact)
– 0: Open
– 1: Close DI COM
 Supports 32-bit counter input function (maximum signal frequency, 200Hz)
 Supports keep/discard counter value on power-off
 Supports inverted digital input status
2.6.1.2 RS-485 Port
 Port Number: 1
 Type: RS-485
 Data Bits: 7, 8
 Stop Bits: 1, 2
 Parity None, Odd, Even
 Baud Rate (bps): 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
 Protocol: Modbus/RTU (Total 32 address by max. 8 instructions)
2.6.2 Pin Assignment
Figure 2.6 WISE-S251 Pin Assignment
