Advantech WISE-4210 Series User Manual

17 WISE-4210 Series User Manual
Chapter 2 General Specification
2.2.2 Pin Assignment

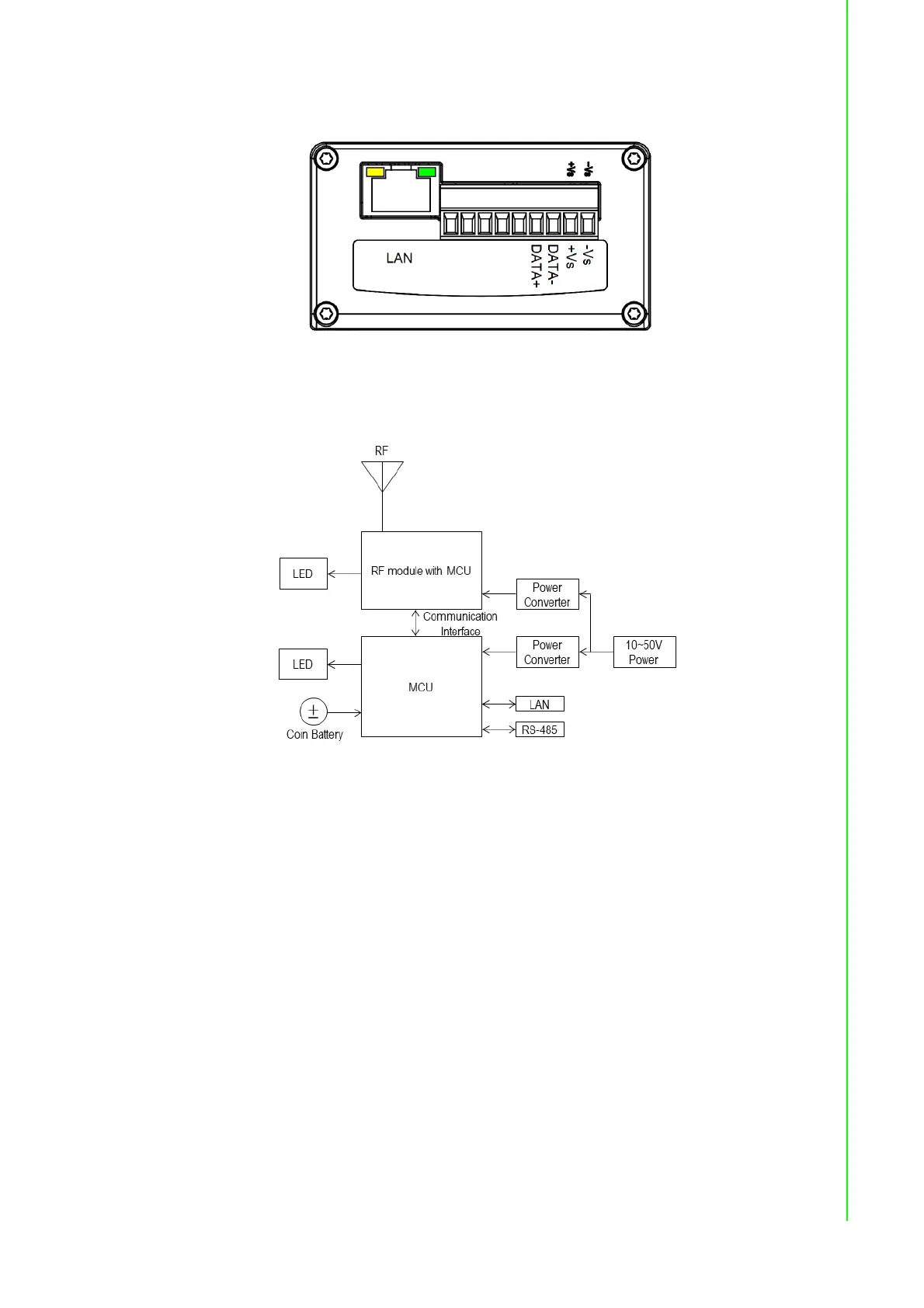

Figure 2.1 WISE-4210-AP Pin Assignment
2.2.3 Block Diagram
Figure 2.2 WISE-4210-AP Block Diagram
2.3 WISE-4210-S231
2.3.1 I/O Specifications
Temperature Sensor Input
 Operating Range: -25°C ~ 70°C (-4°F ~ 157.9°F)
 Data Resolution: 0.1 (°C/°F/K)
 Accuracy: ±2.0°C (Vertical Installation)
 Update Rate: Minimum 1 second
 Response Time: 15 seconds (Achieving 63% of a step function)
 Long Term Drift: 0.05°C/Year (0.09°F/Year)
Humidity Sensor Input
 Operating Range: 10~90% RH
 Resolution: 0.1% RH
 Accuracy:
– ±4% for 0%~50% RH
– ±6% for 50%~60% RH
