WISE-4210 Series User Manual 28
The wireless sensor nodes for WISE-4210, like those for all WISE-4000 series mod-
ules, are designed as separate units. The procedure for installing these nodes in the
module is explained in the following sections.
3.1 Modular Design
WISE-4210 features a modular design that supports various I/O configurations.
The benefit of a modular design is that the same wireless board can be leveraged by
different I/O modules via a board-to-board connector. This allows users to install two
I/O modules according to their specific usage requirements. Moreover, the modules
can be affixed to WISE-4210 using the six screws provided (as shown in Figure 3.1).

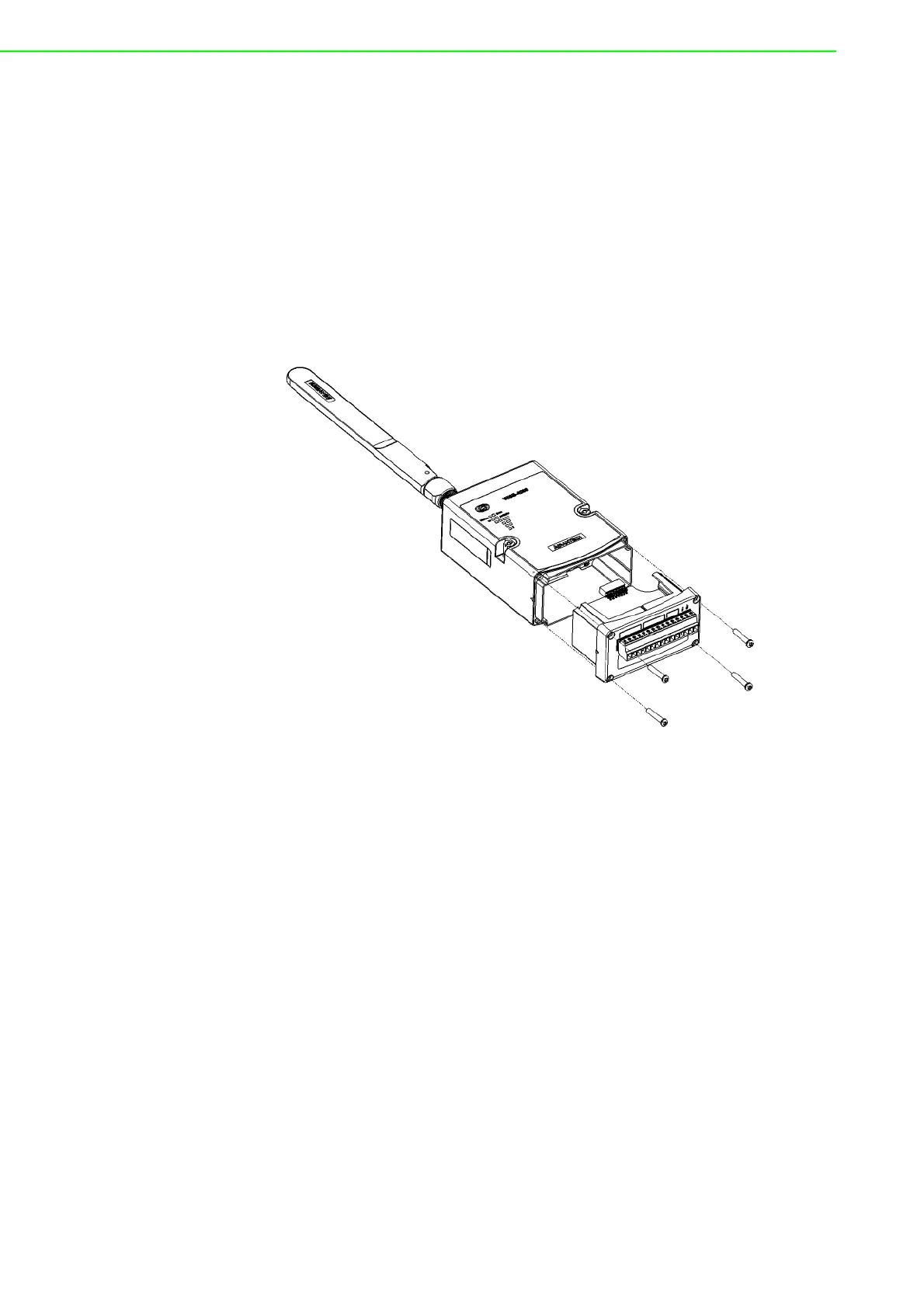

Figure 3.1 I/O Module Installation
